739-152 WAGO Industrial Automation Components

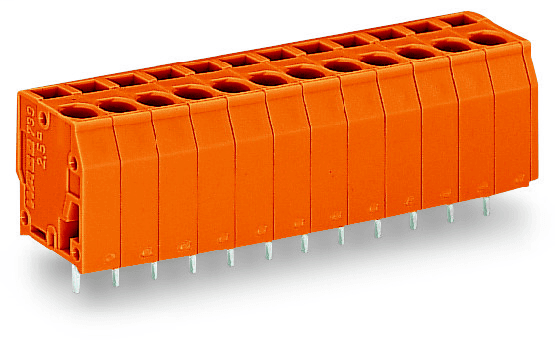

WAGO 739-152 is an automation part with a short circuit breaking rating and electrical data adhering to IEC/EN 60664-1 standards, including a nominal voltage of 320V for overvoltage category III/3 and II/2 with respective rated impulse voltages of 4kV. It supports a rated current of 24A. Under UL 1059 standards, it has a rated voltage of 300V and rated currents of 20A for Use Group B and 10A for Use Group D. CSA approvals indicate a rated voltage of 300V and rated currents of 12A for Use Group B and 10A for Use Group D. The part features 2 connection points, a single connection type with CAGE CLAMP technology, and supports conductor sizes from 0.08 to 2.5mm2. It has a pin spacing of 5.08mm, dimensions of 11.58mm in width, 19mm in height, and 14.3mm in depth, with a solder pin length of 3.2mm. The terminal is made from Polyamide (PA66) in orange color, with a chrome-nickel spring steel clamping spring, electrolytic copper contacts, and tin plating. It operates within a temperature range of -60 to +105°C, is RoHS compliant, and comes in boxes of 400 pieces with a GTIN of 4044918860383.
