739-239 WAGO Industrial Automation Components

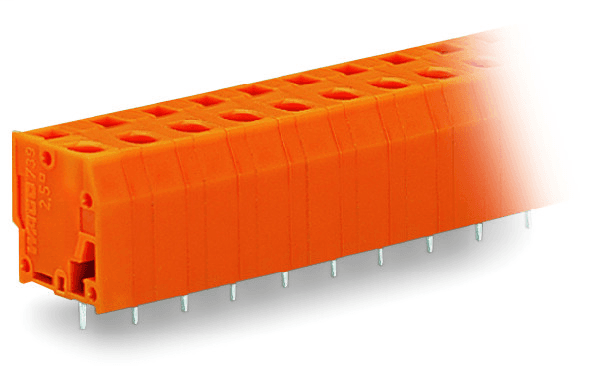

WAGO 739-239 is a printed circuit connector with a short circuit breaking rating as per IEC/EN 60664-1. It features nominal voltages of 500V (III/3), 630V (III/2), and 1000V (II/2), with a rated impulse voltage of 6kV for all categories and a rated current of 24A according to IEC/EN standards. Under UL 1059, it has a rated voltage of 300V and rated currents of 20A for Use Group B and 10A for Use Group D. CSA approvals indicate a rated voltage of 300V and rated currents of 8A for both Use Groups B and D. The connector has 9 connection points, supports a single connection type with CAGE CLAMP technology, and accommodates solid and fine-stranded conductors ranging from 0.08 to 2.5mm2 (28 to 12 AWG), including options for ferrules. It is designed for a 90-degree conductor connection direction to PCB, with a pole number of 9. Physical specifications include a pin spacing of 7.62mm, dimensions of 67.46mm in width, 19mm in height, 14.3mm in depth, and a solder pin length of 3.2mm. The connector is made from Polyamide (PA66) in orange, with a flammability class of V0 and uses Chrome-Nickel spring steel and Electrolytic Copper with tin plating for its contacts. It operates within a temperature range of -60 to +105°C, weighs 12.9g, and is RoHS compliant. The product is packaged in boxes with 60 pieces per unit (15 pieces per SPU), originates from CH, and has a GTIN of 4044918861199.
