Part#:739-3208

Manufacturer:WAGO

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

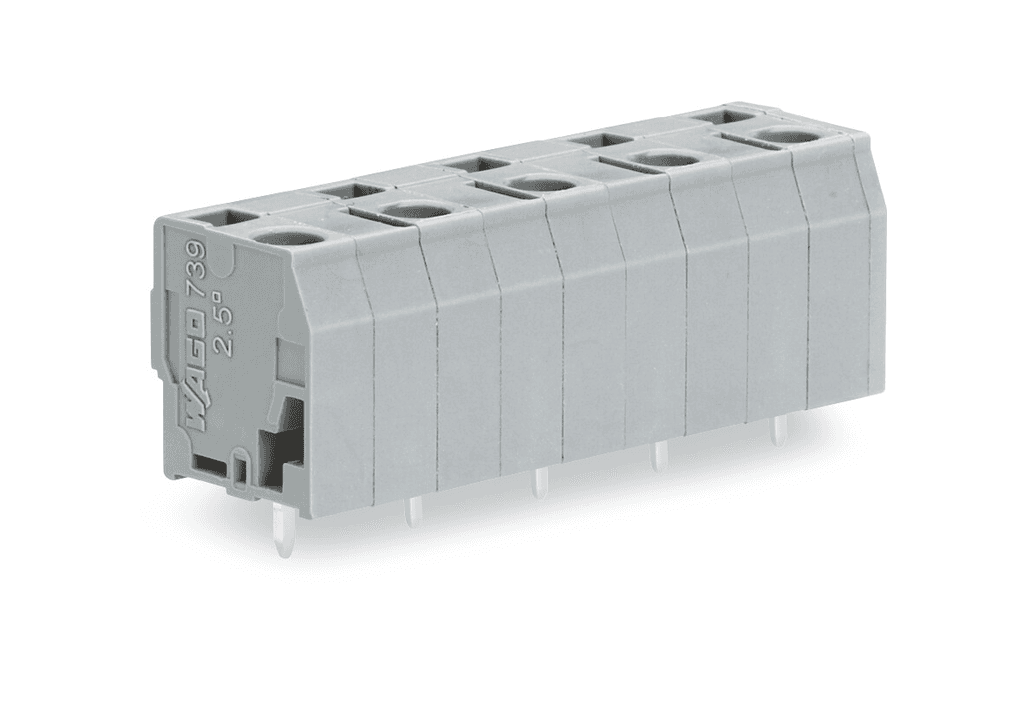

739-3208 WAGO - PCB terminal block; 2.5 mm²; Pin spacing 10 mm; 8-pole; CAGE CLAMP®; 2,50 mm²; gray

Product Details

  • Voltage
    1000 volts, 300 volts
  • Flammability Class
    V0
  • Conductor Size
    12 american wire gauge, 2.5 millimeters
  • Insulation Material
    Polyamide
  • Contact Type
    Tin
  • Strip Length
    0.35 inches, 9 millimeters
  • Current
    20 amperes, 24 amperes
  • Contact Material
    Copper
  • Width
    3.012 inches, 76.5 millimeters
  • Color
    Gray
  • Weight
    13.691 grams
  • Depth
    0.563 inches, 14.3 millimeters
  • Actuator
    Operating Tool
  • Height
    0.748 inches, 19 millimeters
  • Package Type
    Box

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
