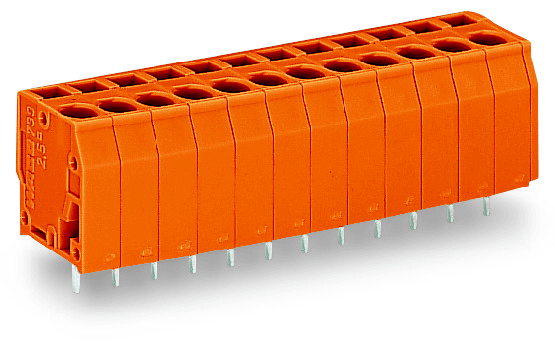

739-159 WAGO Industrial Automation Components

WAGO 739-159 is a printed circuit connector with a short circuit breaking rating as per IEC/EN 60664-1. It features nominal voltages of 320V (III/3), 320V (III/2), and 630V (II/2), with rated impulse voltages of 4kV for both III/2 and III/3 overvoltage categories and a rated surge voltage of 4kV for II/2. The rated current is 24A according to IEC/EN standards. Under UL 1059 approvals, it has rated voltages of 300V and rated currents of 20A for Use Group B and 10A for Use Group D. CSA approvals indicate rated voltages of 300V and rated currents of 12A for Use Group B and 10A for Use Group D. The connector has 9 connection points, supports a single connection type with one level, and utilizes CAGE CLAMP technology with an operating tool actuation type. It accommodates solid and fine-stranded conductors ranging from 0.08 to 2.5mm2 (28 to 14 AWG), including options for both insulated and uninsulated ferrules. The strip length for connection is 8 to 9mm, with a conductor connection direction to the PCB at 90 degrees and a pole number of 9. Physical specifications include a pin spacing of 5.08mm, width of 47.14mm, height of 19mm, depth of 14.3mm, and a solder pin length of 3.2mm. The connector is orange, made from Polyamide (PA66) with a flammability class of V0, and uses Chrome-Nickel spring steel for the clamping spring and Electrolytic Copper with tin plating for contacts. It operates within a temperature range of -60 to +105°C, weighs 10.4g, and is RoHS compliant without exemptions. The product is packaged in boxes with 100 units per package (25 SPU), has a GTIN of 4044918860512, and the country of origin is CH.
