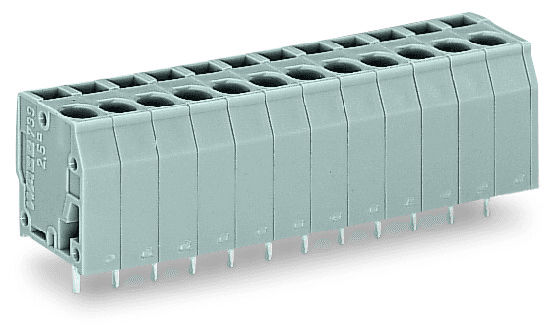

739-115 WAGO Terminal Blocks

WAGO 739-115 is a printed circuit connector with a short circuit breaking rating as per IEC/EN 60664-1. It features nominal and rated voltages of 320V in overvoltage category III/2 and 630V in category II/2, with a rated impulse voltage of 4kV for both categories. The rated current is 24A according to IEC/EN standards. Under UL 1059, it has a rated voltage of 300V and rated currents of 20A for Use Group B and 10A for Use Group D. CSA approvals indicate a rated voltage of 300V and rated currents of 12A for Use Group B and 10A for Use Group D. This connector has 15 connection points, supports a single connection type with CAGE CLAMP technology, and is designed for a single level. It accommodates solid and fine-stranded conductors ranging from 0.08 to 2.5mm2 (28 to 14 AWG for solid and 28 to 12 AWG for fine-stranded). The strip length for connection is 8 to 9mm, and the conductor connection direction to the PCB is 90 degrees. Physical specifications include a pin spacing of 5mm, dimensions of 76.5mm in width, 19mm in height, 14.3mm in depth, and a solder pin length of 3.2mm. The connector is made from Polyamide (PA66) with a flammability class of V0 and features chrome-nickel spring steel for the clamping spring and electrolytic copper with tin plating for contacts. It operates within a temperature range of -60 to +105°C, weighs 17.1g, and comes in a gray color. The product is RoHS compliant without exemptions, packaged in boxes of 60 pieces, and has a GTIN of 4044918859899.
