739-124 WAGO Industrial Automation Components

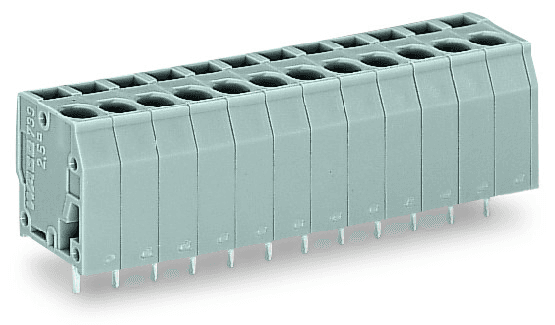

WAGO 739-124 is an automation part with a short circuit breaking rating and electrical data ratings per IEC/EN 60664-1, including a nominal voltage (III/3 and III/2) of 320V, rated impulse voltage (III/3 and III/2) of 4kV, nominal voltage (II/2) of 630V, rated surge voltage (II/2) of 4kV, and a rated current of 24A. It has UL 1059 approval with rated voltages of 300V and rated currents of 20A for Use Group B and 10A for Use Group D. CSA approvals include rated voltages of 300V and rated currents of 12A for Use Group B and 10A for Use Group D. The part features 24 connection points, a single connection type with CAGE CLAMP technology, and supports solid and fine-stranded conductors ranging from 0.08 to 2.5mm2 (28 to 14 AWG for solid and 28 to 12 AWG for fine-stranded). It has a pole number of 24, pin spacing of 5mm, dimensions of 121.5mm in width, 19mm in height, 14.3mm in depth, and a solder pin length of 3.2mm. The part is made from Polyamide (PA66) with a flammability class of UL94 V0, and features chrome-nickel spring steel for the clamping spring, electrolytic copper with tin plating for contacts, and has a weight of 27.2g. It operates within a temperature range of -60 to +105°C, is RoHS compliant without exemptions, and comes in a box packaging of 20 pieces per unit. The country of origin is CH, with a GTIN of 4044918860055 and a customs tariff number of 85369010000.
