K30ABT2RWHQ Banner Pick-to-Light Sensors
Part#:K30ABT2RWHQ
Alt. Part#:803120
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K30 Series EZ-LIGHT: 2-Color Touch Sensor Gen 2; Momentary Output; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Output: Bipolar (NO); Colors: Red - Not Activated, White - Activated; 5-pin M12 Integral QD
Product Details
- Weight 45.3592 g
- Country Of Origin US
- Mounting Thread M22 x 1.5
- Animation Option 1 Solid On
- Color 2 - Wavelength/Color Temp/Coordinates 7500K
- NEMA Type and UL Type Rating NEMA and UL 4X, 13
- Power DC
- Lumens Color 1 1.7
- Supply Voltage 12-30 V dc
- Min Op. Temperature (°C) -40
- Feature: Audible No
- Wireless No
- Power Source DC
- Color Option 1 Red
- Lumens Color 2 5.0
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Feature: Quick Disconnect Yes
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Number of Input Pins/Conductors 5
- Color Option 2 White
- Physical Dimensions (LxWxH or DxH mm) 30.0 x 54.5
- Actuation Yes
- Quick Disconnect Type M12 (Euro)
- Input Type Bimodal (PNP/NPN)
- Button Operation Momentary
- Feature: Hazardous Area No
- Primary Housing Material Polycarbonate
- Product Size (mm) 30
- Max Current Color (mA) 55
- Environmental Rating IP67; IP69
- Pro-Editor Compatible (Discrete) No
- Activation Function Capacitive Touch
- Color 1 - Wavelength/Color Temp/Coordinates 625 nm
- Max Input Response Time (ms) 300
- Max Op. Temperature (°C) 50
- Feature: Chemical Resistant No
- Number of Colors / Segments 2
- Connection Integral QD
- Max Output Response Time (ms) 150
- Operation Normally Open
- Housing Style Base Mount - Dome Window
- Color Technology Standard LED
- Output Type Bipolar (NPN & PNP)
- Storage Temp (°C) -40 to 70
- IO Link No
- Primary Window Material Polycarbonate Diffused
- Multi-Color Device Single Color On
- Modbus RTU No
- Feature: Washdown Rated Yes
- Primary Housing Color Black
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K30ABT2RWHQ on Powermatic Associates is $127.00. Order now.
About the product

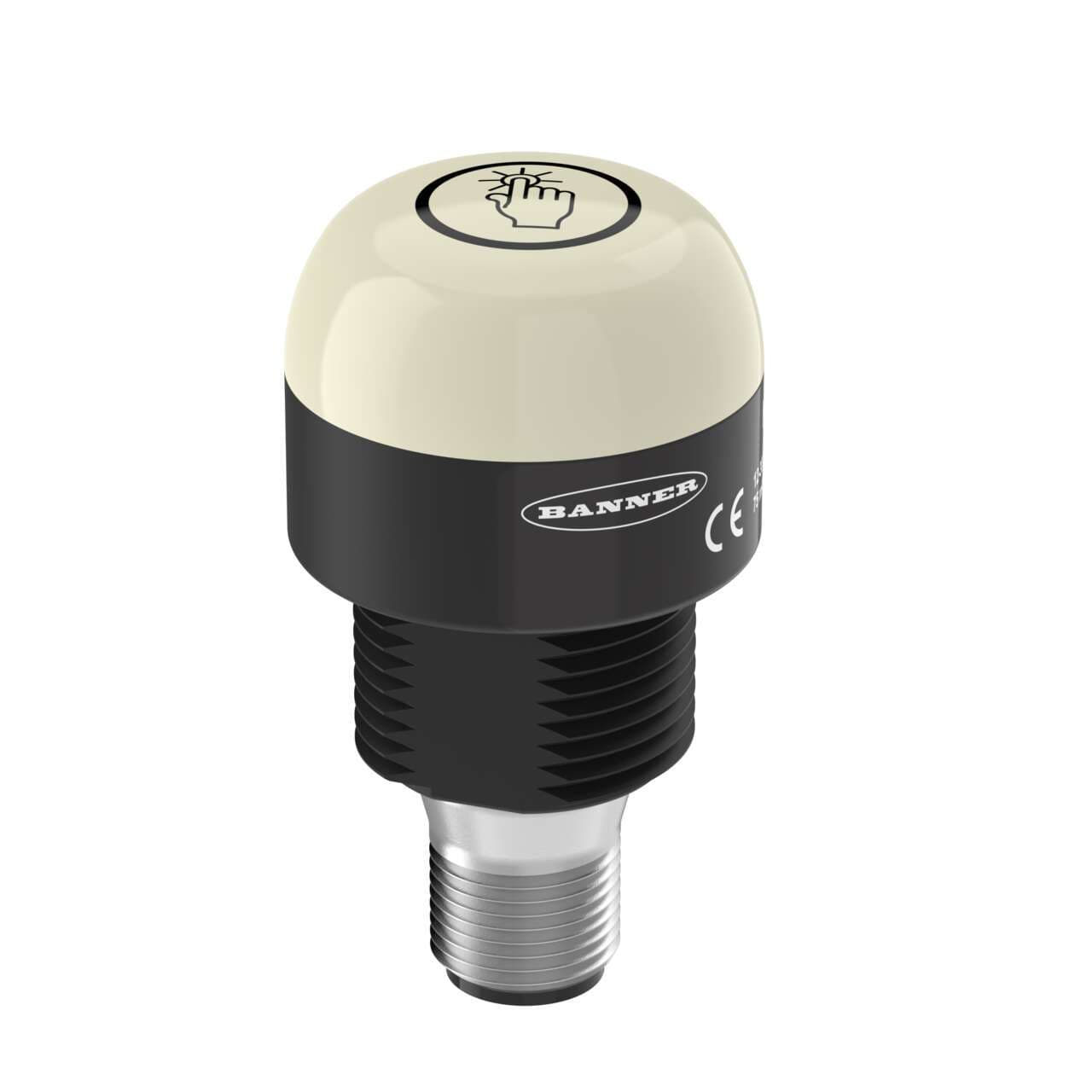

Banner Engineering K30ABT2RWHQ is an illuminated capacitive touch-sensitive button designed with a Gen.2 2-color R (Not activated) / W (Activated) LED illumination. It features a black housing with a dome window shape, constructed from polycarbonate (PC) for both the diffused window and the base. This part is pre-equipped with a 5-pin M12 Euro-style QD connector for connectivity. It operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc as the nominal voltage. The K30ABT2RWHQ offers versatile mounting options, including surface or base pole with an M22 thread, and has a 30mm / 1-3/16" dome diameter. It is designed to operate within an ambient air temperature range of -40°C to +50°C and is rated with a degree of protection of IP67 and IP69K. The operating mode is momentary NO (Normally Open) touch output, and it includes 2 x digital inputs (12-30Vdc; PNP/NPN) for color control and 1 x digital output (12-30Vdc; PNP/NPN) for touch functionality.
