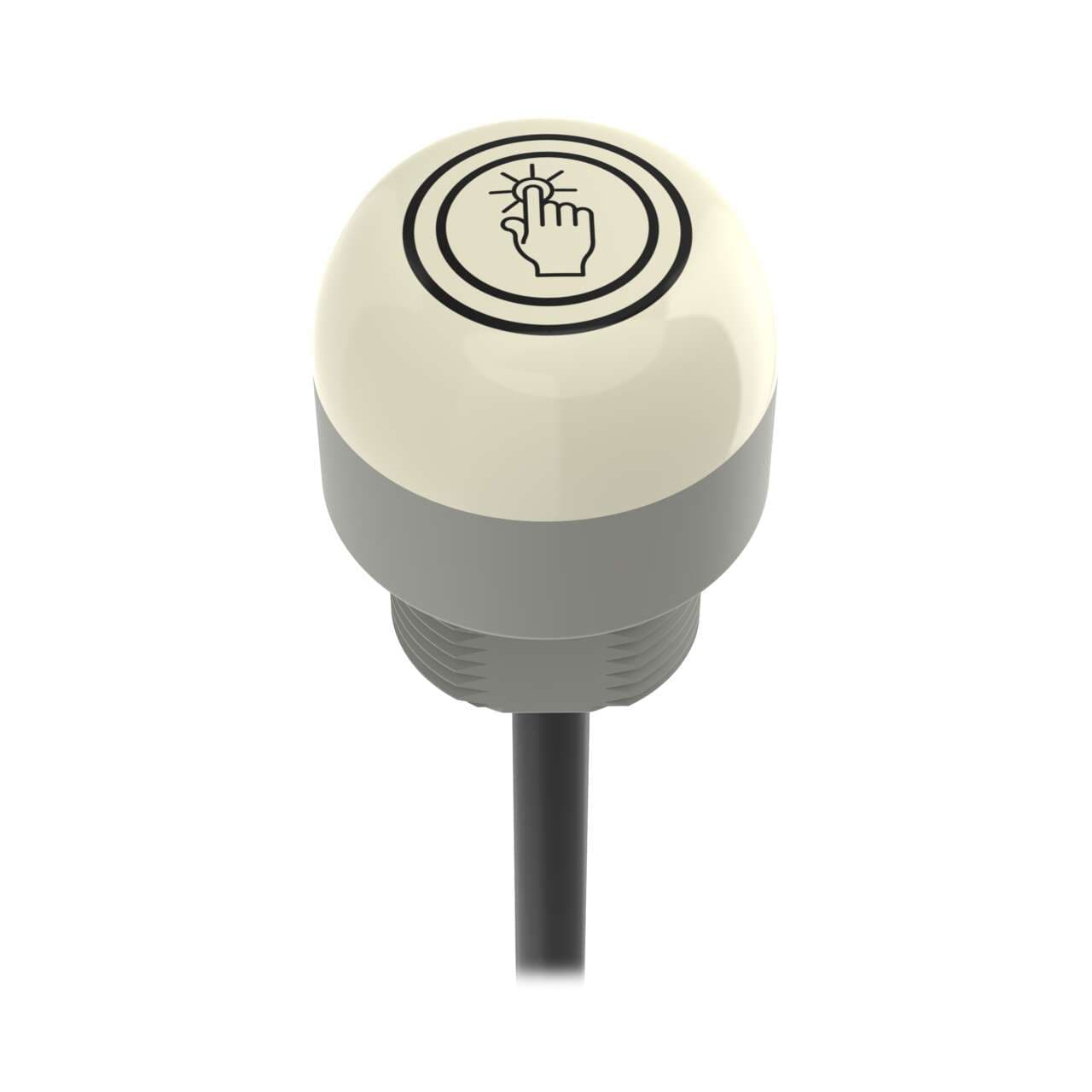

K30ALBT2FRGH Banner Pick-to-Light Sensors

Product Details

• Weight
  176.90088 g
• Country Of Origin
  US
• Wireless
  No
• IO Link
  No
• Feature: Audible
  No
• Min Op. Temperature (°C)
  -40
• Pro-Editor Compatible (Discrete)
  No
• Modbus RTU
  No
• Feature: Chemical Resistant
  No
• Primary Window Material
  FDA Polycarbonate Diffused
• Multi-Color Device
  Single Color On
• Max Op. Temperature (°C)
  50
• Feature: Hazardous Area
  No
• Storage Temp (°C)
  -40 to 70
• Primary Housing Color
  FDA Gray
• Feature: Washdown Rated
  Yes
• Button Operation
  Latching
• Max Op. Relative Humidity Non-Condensing (%)
  90% @ 50°C
• Max Input Response Time (ms)
  300
• Input Type
  Bimodal (PNP/NPN)
Max Output Response Time (ms)
150
Physical Dimensions (LxWxH or DxH mm)
30.0 x 41.0
Environmental Rating
IP67; IP69
Output Type
Bipolar (NPN & PNP)
Supply Voltage
12-30 V dc
Operation
Normally Open
Max Current Color (mA)
55
Lumens Color 2
4.4
Number of Input Pins/Conductors
5
Color 2 - Wavelength/Color Temp/Coordinates
525 nm
Color Option 2
Green
Color 1 - Wavelength/Color Temp/Coordinates
625 nm
Color Option 1
Red
Connection
Cable
Lumens Color 1
1.7
Color Technology
Standard LED
Number of Colors / Segments
2
Product Size (mm)
30
Animation Option 1
Solid On
Color Input Control
Individual (One wire/color, same number of colors as input wires)
Mounting Thread
M22 x 1.5
Housing Style
Base Mount - Dome Window
Power Source
DC
Power
DC
Cable Length (m)
0.15
Activation Function
Capacitive Touch
Primary Housing Material
FDA Copolyester
Actuation
Yes
