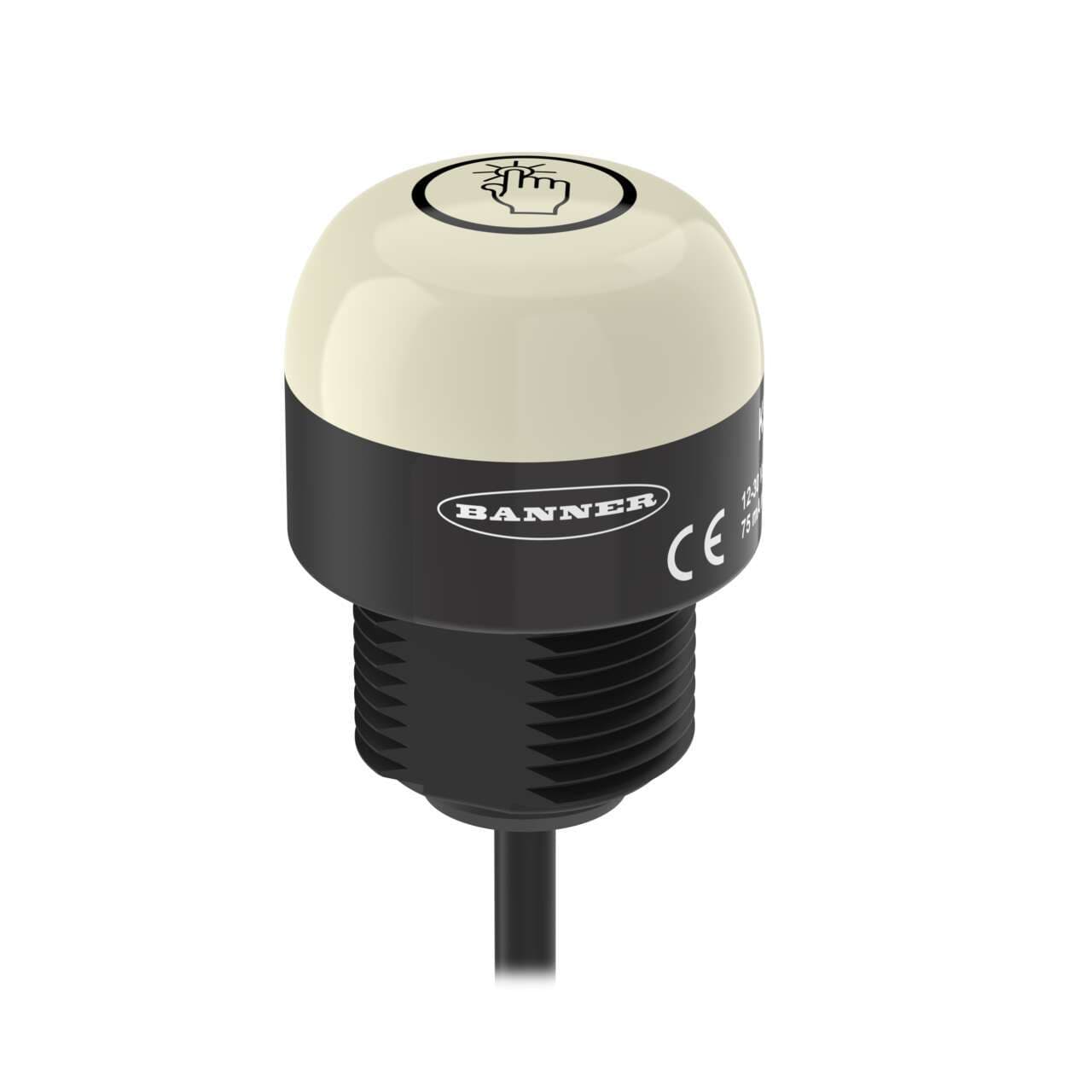

K30ALBTGRH Banner Pick-to-Light Sensors

K30ALBTGRH on Powermatic Associates
Banner
  • K30ALBTGRH
  • K30ALBTGRH

Part#:K30ALBTGRH

Alt. Part#:97741

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

K30 Series: 2-Color Touch Sensor; Latching Output; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Output: Bipolar (NO); Colors: Green - Not Activated, Red - Activated; 2 m (6.5 ft) PVC Cable

Product Details

  • Weight
    58.96696 g
  • Country Of Origin
    US
  • Housing Style
    Base Mount - Dome Window
  • Number of Input Pins/Conductors
    5
  • Max Op. Temperature (°C)
    50
  • Wireless
    No
  • Actuation
    Yes
  • Connection
    Cable
  • Input Type
    Bimodal (PNP/NPN)
  • Storage Temp (°C)
    -40 to 70
  • Activation Function
    Capacitive Touch
  • Operation
    Normally Open
  • Min Op. Temperature (°C)
    -40
  • Feature: Hazardous Area
    No
  • Color Option 1
    Green
  • Max Input Response Time (ms)
    300
  • Button Operation
    Latching
  • Multi-Color Device
    Single Color On
  • Power Source
    DC
  • Max Current Color (mA)
    55
  • Environmental Rating
    IP67; IP69
  • Feature: Chemical Resistant
    No
  • Mounting Thread
    M22 x 1.5
  • Animation Option 1
    Solid On
  • NEMA Type and UL Type Rating
    NEMA 4X, 13
  • Feature: Audible
    No
  • Cable Length (m)
    0.15
  • Product Size (mm)
    30
  • Max Output Response Time (ms)
    150
  • Primary Housing Color
    Black
  • IO Link
    No
  • Power
    DC
  • Color Technology
    Standard LED
  • Supply Voltage
    12-30 V dc
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
  • Pro-Editor Compatible (Discrete)
    No
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Number of Colors / Segments
    2
  • Physical Dimensions (LxWxH or DxH mm)
    30.0 x 41.0
  • Feature: Washdown Rated
    Yes
  • Primary Housing Material
    Polycarbonate
  • Color Option 2
    Red
  • Output Type
    Bipolar (NPN & PNP)
  • Modbus RTU
    No
  • Primary Window Material
    Polycarbonate Diffused

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K30ALBTGRH on Powermatic Associates is $132.00. Order now.

About the product

Banner Engineering K30ALBTGRH is a capacitive touch-sensitive button designed with a 2-color G (Not activated) / R (Activated) LED illumination housed in a black polycarbonate base and dome window. This part features a pre-wired connection with a 2m / 6.5ft 5-wire cable terminated with bare end flying leads. It operates on a supply voltage of 12Vdc-30Vdc, with 24Vdc nominal. The K30ALBTGRH offers surface or base pole mounting options with an M22 thread and has a 30mm / 1-3/16" dome diameter. It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and provides a degree of protection rated at IP67, IP69K, NEMA 4X, and NEMA 13. The operating mode is a latched NO (Normally Open) touch output, with a current consumption of 55mA. Additionally, it includes 2 x digital inputs (12-30Vdc; PNP/NPN) for color control and 1 x digital output (12-30Vdc; PNP/NPN) for touch functionality.
