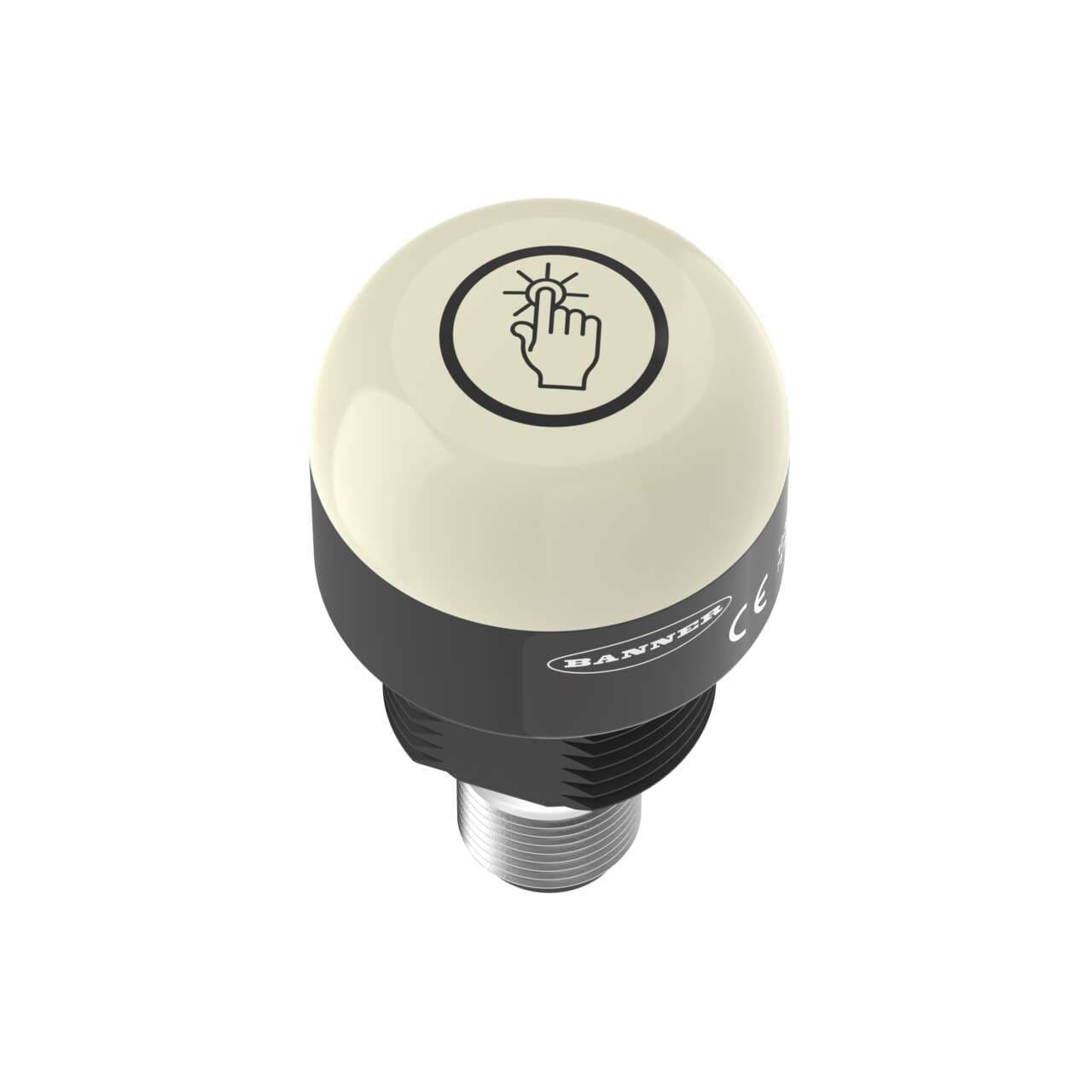

K30ANT2XGF2Q Banner Pick-to-Light Sensors
Part#:K30ANT2XGF2Q
Alt. Part#:96591
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K30 Series EZ-LIGHT: 1-Input-Color Touch Sensor Gen 2; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Input: NPN (NO); Colors: None - Power Applied, Green- Input Active; 4-pin M12 Integral QD
Product Details
- Weight 45.3592 g
- Country Of Origin MX
- Feature: Quick Disconnect Yes
- Pro-Editor Compatible (Discrete) No
- Wireless No
- Button Operation Momentary
- Primary Window Material Polycarbonate Diffused
- Max Output Response Time (ms) 150
- Color Option 2 Green
- Housing Style Base Mount - Dome Window
- Multi-Color Device Single Color On
- IO Link No
- Modbus RTU No
- Feature: Audible No
- Feature: Chemical Resistant No
- Feature: Hazardous Area No
- Primary Housing Color Black
- Storage Temp (°C) -40 to 70
- Min Op. Temperature (°C) -40
- Max Op. Temperature (°C) 50
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Feature: Washdown Rated Yes
- NEMA Type and UL Type Rating NEMA and UL 4X, 13
- Environmental Rating IP67; IP69
- Physical Dimensions (LxWxH or DxH mm) 30.0 x 54.5
- Input Type NPN
- Max Input Response Time (ms) 300
- Output Type NPN
- Supply Voltage 12-30 V dc
- Operation Normally Open
- Number of Input Pins/Conductors 4
- Max Current Color (mA) 55
- Pick-to-Light Function F2
- Color 2 - Wavelength/Color Temp/Coordinates 525 nm
- Lumens Color 2 4.4
- Quick Disconnect Type M12 (Euro)
- Connection Integral QD
- Color Technology Standard LED
- Product Size (mm) 30
- Number of Colors / Segments 1
- Power DC
- Mounting Thread M22 x 1.5
- Power Source DC
- Actuation Yes
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Activation Function Capacitive Touch
- Primary Housing Material Polycarbonate
- Cable Length (m) 0.15
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K30ANT2XGF2Q on Powermatic Associates is $127.00. Order now.
About the product
Banner Engineering K30ANT2XGF2Q, part of the EZ-LIGHT series, is a capacitive touch-sensitive pick-to-light device designed with Gen.2 LED illumination. It features a black housing with a dome-shaped window made from diffused polycarbonate (PC) and a base also constructed from polycarbonate (PC). This part is pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity. It operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc being nominal. The K30ANT2XGF2Q can be mounted on a surface, base, or pole flush using a 22mm hole with an M22 thread, and has a 30mm / 1-3/16" dome diameter. It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and offers a degree of protection rated at IP67 and IP69K. The operating mode is momentary, with the job light (G; Green) turning ON when the input is active, and touch activates the output only with a Normally Open (NO) touch output. It includes 1 x digital input (12-30Vdc; NPN) for JOB color control and 1 x digital output (12-30Vdc; NPN) for touch.
