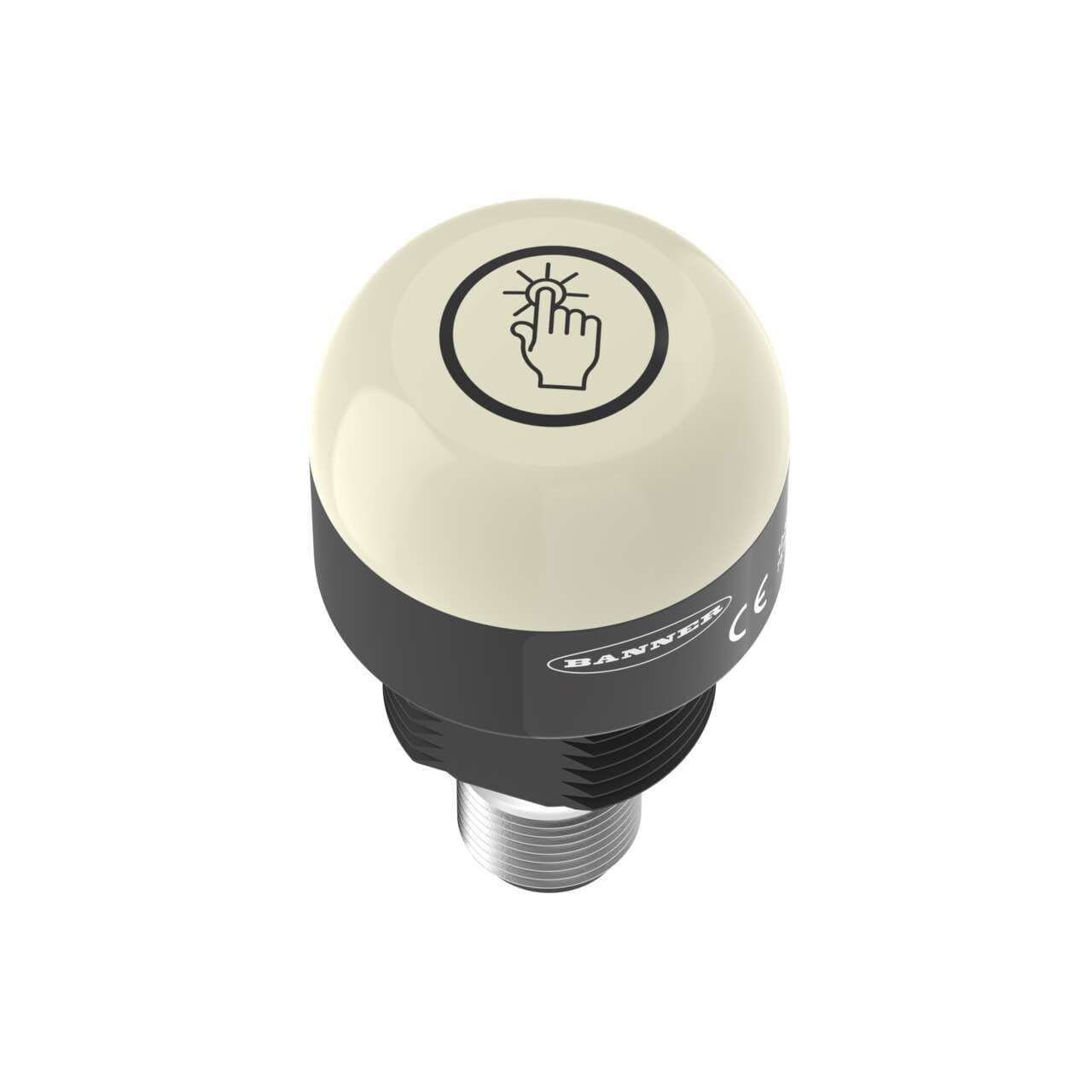

K30ANTXGF2Q Banner Pick-to-Light Sensors
Part#:K30ANTXGF2Q
Alt. Part#:85973
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K30 Series: 1-Input-Color Touch Sensor; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Input: NPN (NO); Colors: None - Power Applied, Green- Input Active; 4-pin M12 Integral QD
Product Details
- Weight 31.75144 g
- Country Of Origin MX
- Mounting Thread M22 x 1.5
- Max Current Color (mA) 55
- Max Op. Temperature (°C) 50
- Button Operation Momentary
- Actuation Yes
- Pick-to-Light Function F2
- Environmental Rating IP67; IP69
- Primary Window Material Polycarbonate Diffused
- Wireless No
- Power Source DC
- Color Technology Standard LED
- Input Type NPN
- Storage Temp (°C) -40 to 70
- Multi-Color Device Single Color On
- Number of Colors / Segments 1
- Color Option 2 Green
- Physical Dimensions (LxWxH or DxH mm) 30.0 x 54.5
- Feature: Audible No
- Pro-Editor Compatible (Discrete) No
- Product Size (mm) 30
- Power DC
- Supply Voltage 12-30 V dc
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Feature: Hazardous Area No
- Housing Style Base Mount - Dome Window
- Connection Integral QD
- Max Input Response Time (ms) 300
- Primary Housing Color Black
- IO Link No
- Primary Housing Material Polycarbonate
- Quick Disconnect Type M12 (Euro)
- Output Type NPN
- Min Op. Temperature (°C) -40
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Operation Normally Open
- NEMA Type and UL Type Rating NEMA 4X, 13
- Feature: Chemical Resistant No
- Activation Function Capacitive Touch
- Number of Input Pins/Conductors 4
- Max Output Response Time (ms) 150
- Feature: Washdown Rated Yes
- Feature: Quick Disconnect Yes
- Modbus RTU No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K30ANTXGF2Q on Powermatic Associates is $127.00. Order now.
About the product
Banner Engineering K30ANTXGF2Q, part of the EZ-LIGHT series, is a capacitive touch-sensitive pick-to-light device designed with LED illumination. It features a black housing with a dome window shape, constructed from polycarbonate (PC) for both the diffused window and the base. This part is pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity. It operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc nominal. The K30ANTXGF2Q offers versatile mounting options including surface, base, or pole flush with a 22mm hole and M22 thread. The dome diameter is 30mm or approximately 1-3/16 inches. It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and is rated with a degree of protection of IP67, IP69K, NEMA 4X, and NEMA 13. The operating mode is momentary, with the job light (G; Green) turning ON when the input is active, and touch activates the output only with a Normally Open (NO) touch output. It has a current consumption of 55mA, one digital input (12-30Vdc; NPN) for JOB color control, and one digital output (12-30Vdc; NPN) for touch.
