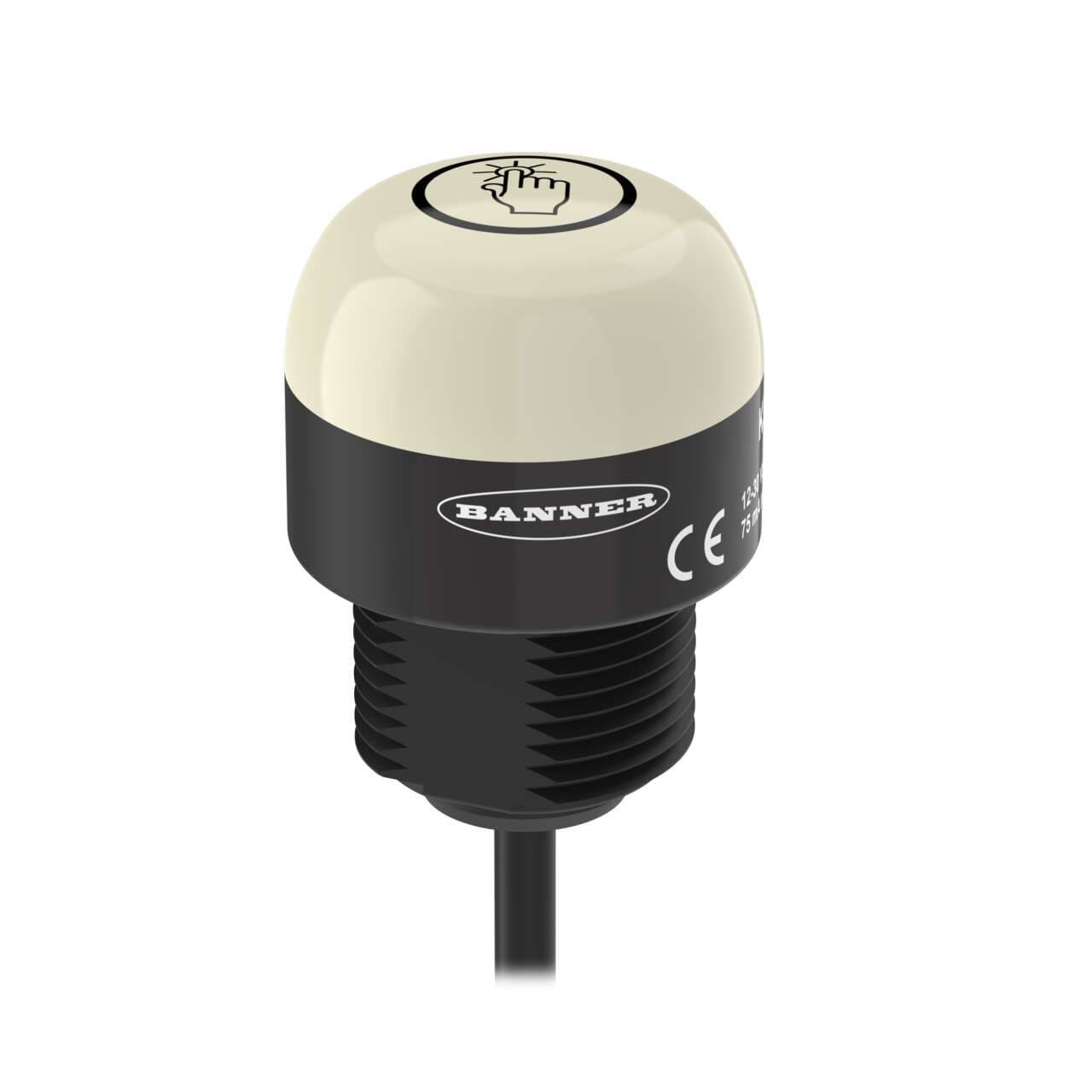

K30APT2BWYF2QP Banner Pick-to-Light Sensors

K30APT2BWYF2QP on Powermatic Associates
Banner
  • K30APT2BWYF2QP
  • K30APT2BWYF2QP

Part#:K30APT2BWYF2QP

Alt. Part#:805470

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

K30 Series EZ-LIGHT: 3-Input-Color Touch Sensor Gen 2; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Input: PNP (NO); Colors: Blue White Yellow; 150 mm (6 in) 8-pin M12 PVC Pigtail QD

Product Details

  • Weight
    81.64656 g
  • Country Of Origin
    MX
  • Activation Function
    Capacitive Touch
  • Color 1 - Wavelength/Color Temp/Coordinates
    470 nm
  • Housing Style
    Base Mount - Dome Window
  • Connection
    Pigtail QD
  • Color 3 - Wavelength/Color Temp/Coordinates
    580 nm
  • Environmental Rating
    IP67; IP69
  • IO Link
    No
  • Primary Housing Material
    Polycarbonate
  • Power
    DC
  • Color Technology
    Standard LED
  • Color Option 3
    Yellow
  • Max Op. Temperature (°C)
    50
  • Multi-Color Device
    Single Color On
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Product Size (mm)
    30
  • Lumens Color 2
    5.0
  • Supply Voltage
    12-30 V dc
  • Color Option 1
    Blue
  • Button Operation
    Momentary
  • Power Source
    DC
  • Storage Temp (°C)
    -40 to 70
  • Pro-Editor Compatible (Discrete)
    No
  • Color Option 2
    White
  • Wireless
    No
  • Quick Disconnect Type
    M12 (Euro)
  • Max Current Color (mA)
    55
  • Max Output Response Time (ms)
    150
  • Feature: Chemical Resistant
    No
  • Animation Option 1
    Solid On
  • Max Input Response Time (ms)
    300
  • Operation
    Normally Open
  • Lumens Color 3
    4.4
  • Min Op. Temperature (°C)
    -40
  • Lumens Color 1
    1.0
  • Number of Input Pins/Conductors
    8
  • Output Type
    PNP
  • Feature: Hazardous Area
    No
  • Color 2 - Wavelength/Color Temp/Coordinates
    6000K
  • Input Type
    PNP
  • Feature: Audible
    No
  • Mounting Thread
    M22 x 1.5
  • Pick-to-Light Function
    F2
  • Modbus RTU
    No
  • Number of Colors / Segments
    3
  • Actuation
    Yes
  • Feature: Washdown Rated
    Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K30APT2BWYF2QP on Powermatic Associates is $134.00. Order now.

About the product

Banner Engineering K30APT2BWYF2QP, part of the EZ-LIGHT series, is a capacitive touch-sensitive pick-to-light device designed with Gen.2 LED illumination. It features a black housing with a dome window shape, constructed from polycarbonate (PC) for both the diffused window and the base. This part is pre-wired with a 6" / 15cm pigtail that terminates with an 8-pin M12 Euro-style quick disconnect (QD) connector. It operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc nominal. The K30APT2BWYF2QP offers versatile mounting options including surface, base, or pole flush with a 22mm hole and M22 thread. The dome diameter measures 30mm / 1-3/16". It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and is rated for IP67 and IP69K degrees of protection. The operating mode is momentary, with a job light (Blue, White, or Yellow) that turns on when one of the three job inputs is active. Touch activates the output only with a Normally Open (NO) touch output. It includes 3 x digital inputs (12-30Vdc; PNP) for JOB color control and 1 x digital output (12-30Vdc; PNP) for touch.
