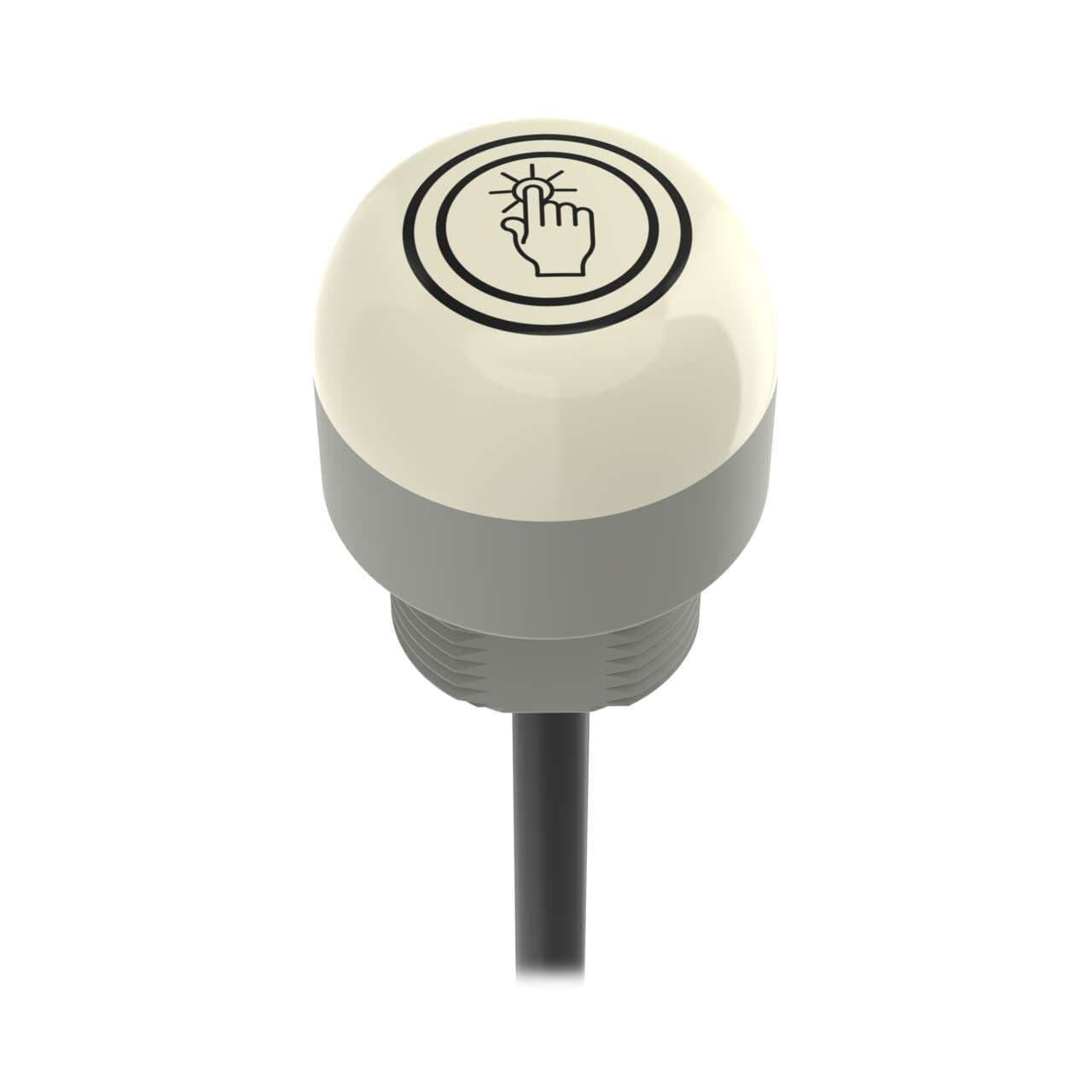

K30APT2FBREQP Banner Pick-to-Light Sensors

Product Details

• Weight
  90.7184 g
• Country Of Origin
  MX
• Mis-Pick Light
  Red
• Max Output Response Time (ms)
  150
• Activation Function
  Capacitive Touch
• Animation Option 1
  Solid On
• Feature: Chemical Resistant
  No
• Actuation
  Yes
• Color Option 1
  Blue
• Physical Dimensions (LxWxH or DxH mm)
  30.0 x 41.0
• Max Current Color (mA)
  55
• Feature: Washdown Rated
  Yes
• Color Option 2
  Red
• Color Input Control
  Individual (One wire/color, same number of colors as input wires)
• Operation
  Normally Open
• Min Op. Temperature (°C)
  -40
• IO Link
  No
• Power
  DC
• Connection
  Pigtail QD
• Number of Input Pins/Conductors
  5
Max Op. Relative Humidity Non-Condensing (%)
90% @ 50°C
Feature: Hazardous Area
No
Primary Housing Material
FDA Copolyester
Quick Disconnect Type
M12 (Euro)
Pick-to-Light Function
E
Max Op. Temperature (°C)
50
Multi-Color Device
Single Color On
Number of Colors / Segments
2
Color 1 - Wavelength/Color Temp/Coordinates
470 nm
Input Type
PNP
Button Operation
Momentary
Pro-Editor Compatible (Discrete)
No
Mounting Thread
M22 x 1.5
Product Size (mm)
30
Color 2 - Wavelength/Color Temp/Coordinates
625 nm
Max Input Response Time (ms)
300
Primary Window Material
FDA Polycarbonate Diffused
Job Light
Blue
Supply Voltage
12-30 V dc
Primary Housing Color
FDA Gray
Wireless
No
Power Source
DC
Lumens Color 1
1.0
Output Type
PNP
Storage Temp (°C)
-40 to 70
Modbus RTU
No
Housing Style
Base Mount - Dome Window
Color Technology
Standard LED
Lumens Color 2
1.7
Environmental Rating
IP67; IP69
Feature: Audible
No
Feature: Quick Disconnect
Yes
