K30APT2FGRF2 Banner Pick-to-Light Sensors

Name: K30APT2FGRF2
Brand: Banner
Price: 141 USD
Availability: BackOrder

Part#:K30APT2FGRF2

Alt. Part#:96660

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

K30 Series EZ-LIGHT: 2-Input-Color Touch Sensor Gen 2 FDA; Voltage: 12-30 V dc; Housing: FDA Copolyester; IP67 IP69K; Input: PNP (NO); Colors: Green - Power Applied, Red - Input Active; 2 m (6.5 ft) Integral Cable

Product Details

Weight
176.90088 g
Country Of Origin
US
Wireless
No
Pro-Editor Compatible (Discrete)
No
Modbus RTU
No
Primary Window Material
FDA Polycarbonate Diffused
Feature: Quick Disconnect
No
Multi-Color Device
Single Color On
IO Link
No
Button Operation
Momentary
Primary Housing Color
FDA Gray
Feature: Chemical Resistant
No
Feature: Audible
No
Feature: Hazardous Area
No
Feature: Washdown Rated
Yes
Environmental Rating
IP67; IP69
Storage Temp (°C)
-40 to 70
Min Op. Temperature (°C)
-40
Max Op. Temperature (°C)
50
Max Op. Relative Humidity Non-Condensing (%)
90% @ 50°C

Physical Dimensions (LxWxH or DxH mm)

30.0 x 41.0

Max Output Response Time (ms)

150

Max Input Response Time (ms)

300

Input Type

PNP

Operation

Normally Open

Output Type

PNP

Number of Input Pins/Conductors

Supply Voltage

12-30 V dc

Pick-to-Light Function

Max Current Color (mA)

Color 2 - Wavelength/Color Temp/Coordinates

625 nm

Lumens Color 2

1.7

Color 1 - Wavelength/Color Temp/Coordinates

525 nm

Color Option 2

Red

Lumens Color 1

4.4

Connection

Cable

Animation Option 1

Solid On

Color Option 1

Green

Color Technology

Standard LED

Product Size (mm)

Number of Colors / Segments

Mounting Thread

M22 x 1.5

Power

Cable Length (m)

0.15

Housing Style

Base Mount - Dome Window

Primary Housing Material

FDA Copolyester

Color Input Control

Individual (One wire/color, same number of colors as input wires)

Power Source

Actuation

Yes

Activation Function

Capacitive Touch

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K30APT2FGRF2 on Powermatic Associates is $141.00. Order now.

About the product

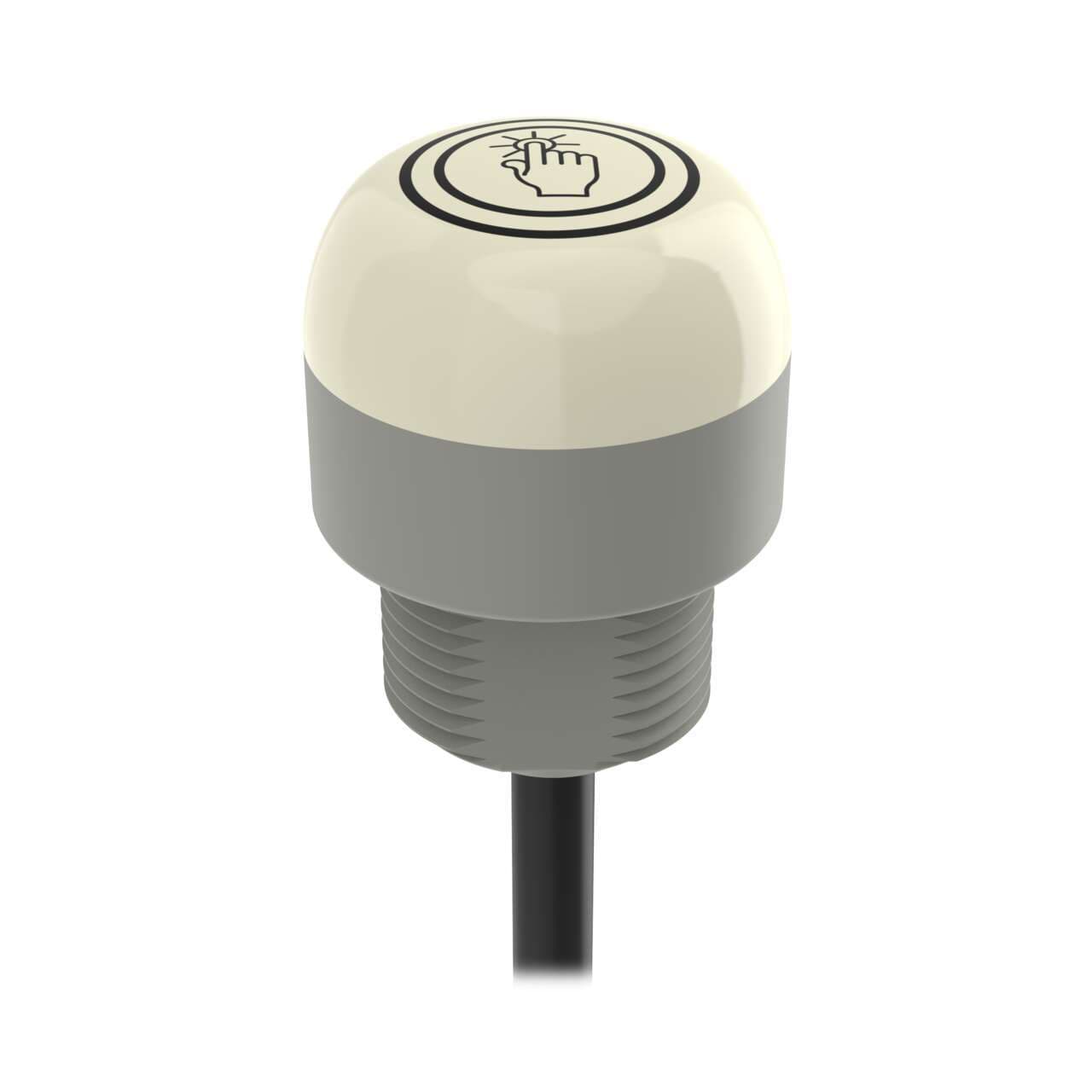

Banner Engineering K30APT2FGRF2, part of the EZ-LIGHT series, is a capacitive touch-sensitive pick-to-light device designed with Gen.2 hygienic features using FDA-grade materials for LED illumination. It has a gray housing with a dome-shaped window made from diffused polycarbonate (PC) and a base also constructed from polycarbonate (PC). This part is pre-wired with a 2m / 6.5ft 5-wire cable terminated with bare end flying leads. It operates on a supply voltage of 12Vdc-30Vdc, with 24Vdc nominal. The K30APT2FGRF2 can be mounted on a surface, base, or pole flush with a 22mm hole using an M22 thread, and has a 30mm / 1-3/16" dome diameter. It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and offers a degree of protection rated at IP67 and IP69K. The operating mode includes a momentary job light (G; Green) that is ON when power is applied, a job light (R; Red) that is ON when the input is active, and a touch that activates output only with a Normally Open (NO) touch output. It features 1 x digital input (12-30Vdc; PNP) for JOB color control and 1 x digital output (12-30Vdc; PNP) for touch functions.
