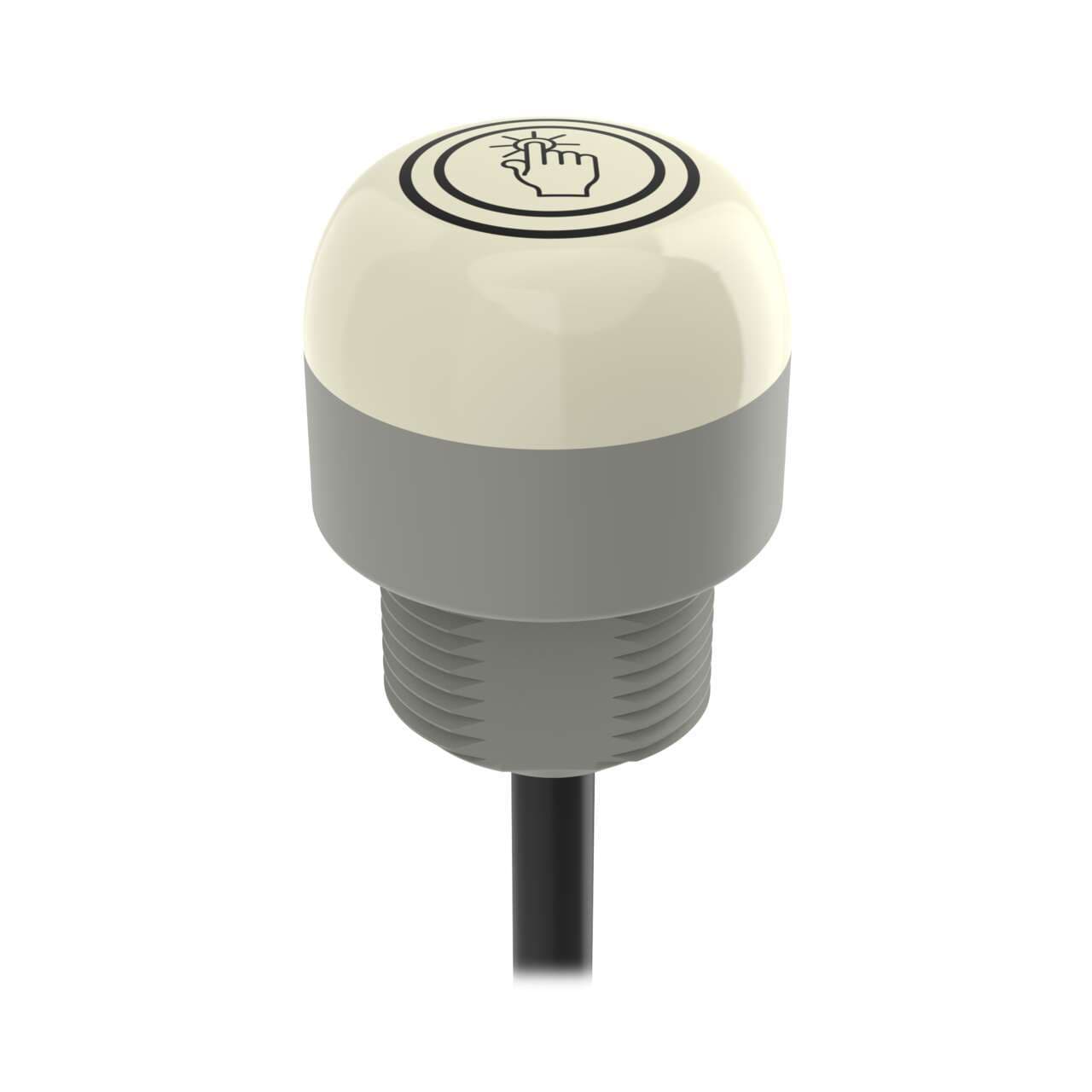

K30APT2FWYF2QP Banner Pick-to-Light Sensors

K30APT2FWYF2QP on Powermatic Associates
Banner
  • K30APT2FWYF2QP
  • K30APT2FWYF2QP

Part#:K30APT2FWYF2QP

Alt. Part#:803592

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

K30 Series EZ-LIGHT: 2-Input-Color Touch Sensor Gen 2 FDA; Voltage: 12-30 V dc; Housing: FDA Copolyester; IP67 IP69K; Input: PNP (NO); Colors: White - Power Applied, Yellow - Input Active; 150 mm (6 in) 5-pin M12 PVC Pigtail QD

Product Details

  • Weight
    90.7184 g
  • Country Of Origin
    MX
  • Feature: Hazardous Area
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Wireless
    No
  • Modbus RTU
    No
  • IO Link
    No
  • Feature: Quick Disconnect
    Yes
  • Multi-Color Device
    Single Color On
  • Feature: Audible
    No
  • Feature: Chemical Resistant
    No
  • Feature: Washdown Rated
    Yes
  • Primary Window Material
    FDA Polycarbonate Diffused
  • Button Operation
    Momentary
  • Primary Housing Color
    FDA Gray
  • Max Input Response Time (ms)
    300
  • Storage Temp (°C)
    -40 to 70
  • Min Op. Temperature (°C)
    -40
  • Max Op. Temperature (°C)
    50
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
  • Environmental Rating
    IP67; IP69
  • Physical Dimensions (LxWxH or DxH mm)
    30.0 x 41.0
  • Max Output Response Time (ms)
    150
  • Number of Input Pins/Conductors
    5
  • Input Type
    PNP
  • Output Type
    PNP
  • Supply Voltage
    12-30 V dc
  • Operation
    Normally Open
  • Pick-to-Light Function
    F2
  • Max Current Color (mA)
    55
  • Color 2 - Wavelength/Color Temp/Coordinates
    580 nm
  • Lumens Color 2
    4.4
  • Color 1 - Wavelength/Color Temp/Coordinates
    7500K
  • Color Option 2
    Yellow
  • Quick Disconnect Type
    M12 (Euro)
  • Lumens Color 1
    5.0
  • Animation Option 1
    Solid On
  • Connection
    Pigtail QD
  • Color Option 1
    White
  • Color Technology
    Standard LED
  • Product Size (mm)
    30
  • Housing Style
    Base Mount - Dome Window
  • Mounting Thread
    M22 x 1.5
  • Primary Housing Material
    FDA Copolyester
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Actuation
    Yes
  • Number of Colors / Segments
    2
  • Activation Function
    Capacitive Touch
  • Power
    DC
  • Power Source
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K30APT2FWYF2QP on Powermatic Associates is $177.00. Order now.

About the product

Banner Engineering K30APT2FWYF2QP, part of the EZ-LIGHT series, is a capacitive touch-sensitive pick-to-light device designed with Gen.2 hygienic features using FDA-grade materials for its LED illumination. It comes in a gray housing with a dome-shaped window made from diffused polycarbonate (PC) and a base also constructed from polycarbonate (PC). This part is pre-wired with a 6" / 15cm pigtail that terminates with a 5-pin M12 Euro-style QD connector. It operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc nominal. The K30APT2FWYF2QP offers versatile mounting options including surface, base, or pole flush with a 22mm hole and M22 thread. The dome diameter measures 30mm / 1-3/16". It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and is rated with a degree of protection of IP67 and IP69K. The operating mode includes a momentary job light (W; White) that is ON when power is applied, and a job light (Y; Yellow) that is ON when the input is active. Touch activates the output only with a Normally Open (NO) touch output. It features 1 x digital input (12-30Vdc; PNP) for JOB color control and 1 x digital output (12-30Vdc; PNP) for touch.
