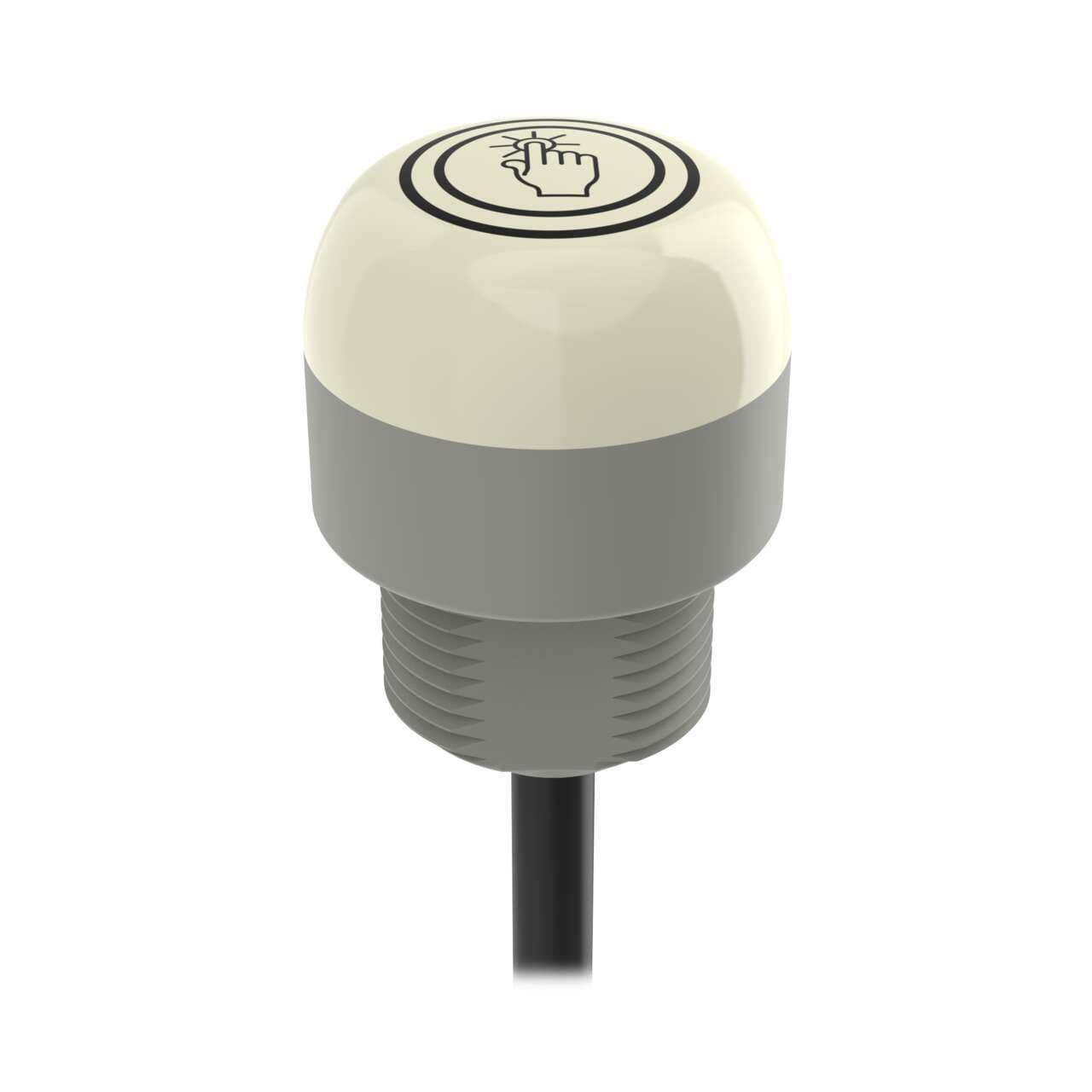

K30APT2FXBF2QP Banner Pick-to-Light Sensors
Part#:K30APT2FXBF2QP
Alt. Part#:802526
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K30 Series EZ-LIGHT: 1-Input-Color Touch Sensor Gen 2 FDA; Voltage: 12-30 V dc; Housing: FDA Copolyester; IP67 IP69K; Input: PNP (NO); Colors: None - Power Applied, Blue - Input Active; 150 mm (6 in) 5-pin M12 PVC Pigtail QD
Product Details
- Weight 90.7184 g
- Country Of Origin US
- IO Link No
- Feature: Quick Disconnect Yes
- Wireless No
- Modbus RTU No
- Multi-Color Device Single Color On
- Primary Window Material FDA Polycarbonate Diffused
- Feature: Washdown Rated Yes
- Button Operation Momentary
- Primary Housing Color FDA Gray
- Feature: Chemical Resistant No
- Storage Temp (°C) -40 to 70
- Min Op. Temperature (°C) -40
- Max Op. Temperature (°C) 50
- Environmental Rating IP67; IP69
- Physical Dimensions (LxWxH or DxH mm) 30.0 x 41.0
- Output Type PNP
- Max Output Response Time (ms) 150
- Number of Input Pins/Conductors 5
- Operation Normally Open
- Color Option 2 Blue
- Max Current Color (mA) 55
- Pick-to-Light Function F2
- Lumens Color 2 1.0
- Product Size (mm) 30
- Color Technology Standard LED
- Activation Function Capacitive Touch
- Housing Style Base Mount - Dome Window
- Pro-Editor Compatible (Discrete) No
- Feature: Audible No
- Feature: Hazardous Area No
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Input Type PNP
- Supply Voltage 12-30 V dc
- Max Input Response Time (ms) 300
- Color 2 - Wavelength/Color Temp/Coordinates 470 nm
- Quick Disconnect Type M12 (Euro)
- Connection Pigtail QD
- Number of Colors / Segments 1
- Power DC
- Cable Length (m) 2
- Power Source DC
- Mounting Thread M22 x 1.5
- Primary Housing Material FDA Copolyester
- Actuation Yes
- Color Input Control Individual (One wire/color, same number of colors as input wires)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K30APT2FXBF2QP on Powermatic Associates is $170.00. Order now.
About the product
Banner Engineering K30APT2FXBF2QP, part of the EZ-LIGHT series, is a capacitive touch-sensitive pick-to-light device designed with Gen.2 hygienic features using FDA-grade materials for its construction. It features a gray housing made from FDA Copolyester and a dome window shape crafted from FDA-grade polycarbonate diffused material. This device is pre-wired with a 6" / 15cm pigtail that terminates with a 5-pin M12 Euro-style QD connector. It operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc being nominal. The K30APT2FXBF2QP offers versatile mounting options including surface, base, or pole flush with a 22mm hole and M22 thread, and has a 30mm / 1-3/16" dome diameter. It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and is rated with a degree of protection of IP67 and IP69K. The operating mode is momentary, with a blue job light that turns on when the input is active, and touch activates the output only with a Normally Open (NO) touch output. It has a current consumption of 55mA, one digital input (12-30Vdc; PNP) for job color control, and one digital output (12-30Vdc; PNP) for touch.
