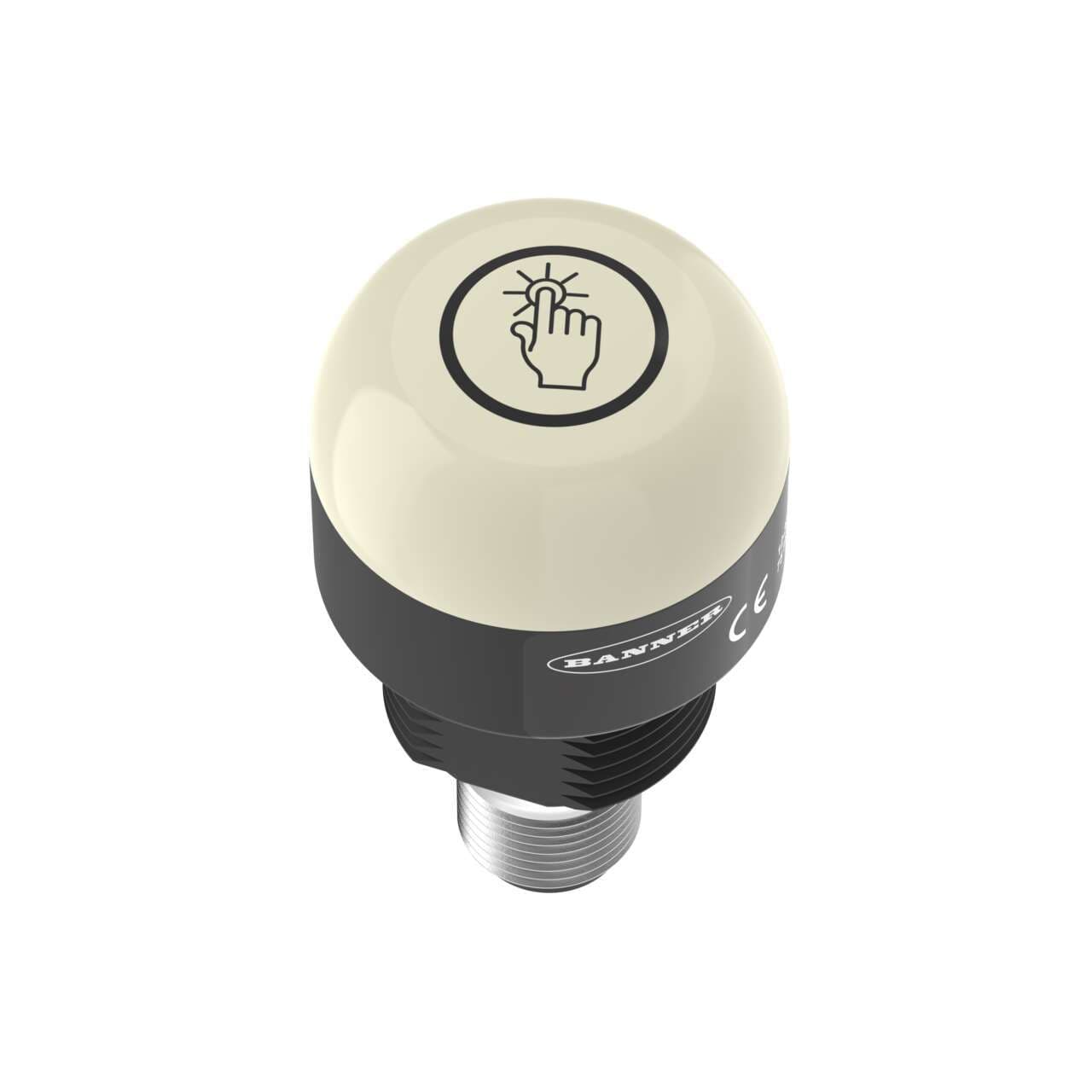

K30APT2GRCQ Banner Pick-to-Light Sensors

Product Details

• Weight
  45.3592 g
• Country Of Origin
  MX
• Color Input Control
  Individual (One wire/color, same number of colors as input wires)
• Color 1 - Wavelength/Color Temp/Coordinates
  525 nm
• Input Type
  PNP
• Max Op. Temperature (°C)
  50
• Feature: Chemical Resistant
  No
• Color Technology
  Standard LED
• Mounting Thread
  M22 x 1.5
• Number of Input Pins/Conductors
  4
• Environmental Rating
  IP67; IP69
• Storage Temp (°C)
  -40 to 70
• Job Light
  Green
• Power Source
  DC
• Product Size (mm)
  30
• Lumens Color 2
  1.7
• Max Input Response Time (ms)
  300
• Feature: Washdown Rated
  Yes
• Activation Function
  Capacitive Touch
• Connection
  Integral QD
Acknowledge (Sense) Light
Red
NEMA Type and UL Type Rating
NEMA and UL 4X, 13
Feature: Hazardous Area
No
Cable Length (m)
2
Number of Colors / Segments
2
Color Option 2
Red
Supply Voltage
12-30 V dc
Max Op. Relative Humidity Non-Condensing (%)
90% @ 50°C
Feature: Audible
No
Wireless
No
Primary Housing Material
Polycarbonate
Lumens Color 1
4.4
Operation
Normally Open
Physical Dimensions (LxWxH or DxH mm)
30.0 x 54.5
Primary Window Material
Polycarbonate Diffused
Pro-Editor Compatible (Discrete)
No
Housing Style
Base Mount - Dome Window
Color Option 1
Green
Max Current Color (mA)
55
Output Type
PNP
Min Op. Temperature (°C)
-40
Multi-Color Device
Single Color On
Actuation
Yes
Quick Disconnect Type
M12 (Euro)
Pick-to-Light Function
C
Max Output Response Time (ms)
150
Primary Housing Color
Black
Modbus RTU
No
Power
DC
Animation Option 1
Solid On
Color 2 - Wavelength/Color Temp/Coordinates
625 nm
Button Operation
Momentary
IO Link
No
