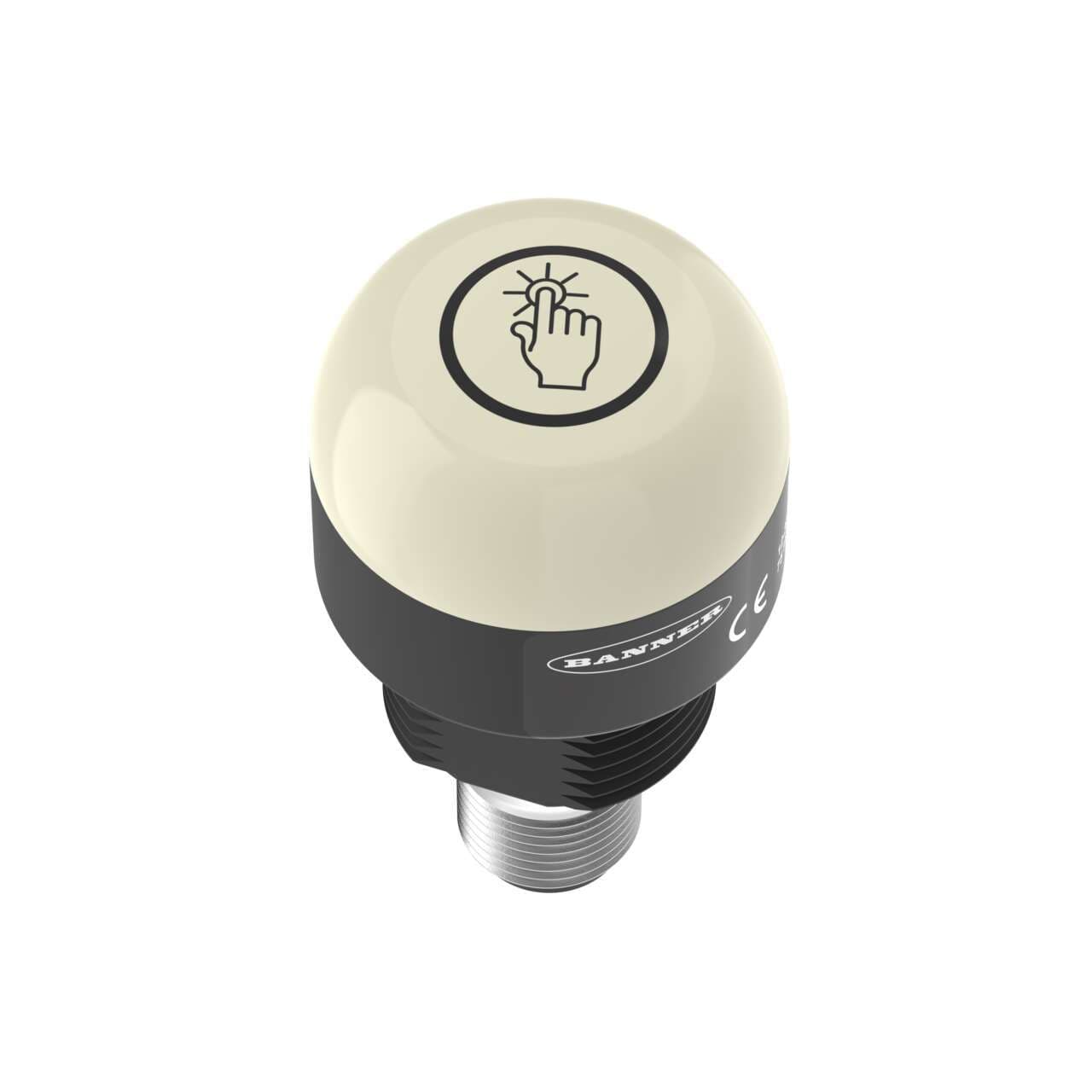

K30APT2YXDQP Banner Pick-to-Light Sensors

Name: K30APT2YXDQP
Brand: Banner
Price: 127 USD
Availability: BackOrder

Part#:K30APT2YXDQP

Alt. Part#:809809

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

K30 Series EZ-LIGHT: 1-Color Touch Sensor Gen 2; Job Light Only; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Input: PNP (NO); Colors: Yellow; 150 mm (6 in) 4-pin M12 PVC Pigtail QD

Product Details

Weight
45.3592 g
Country Of Origin
MX
Job Light
Yellow
Wireless
No
Modbus RTU
No
Multi-Color Device
Single Color On
Feature: Chemical Resistant
No
Feature: Washdown Rated
Yes
Primary Housing Color
Black
Max Op. Relative Humidity Non-Condensing (%)
90% @ 50°C
Pro-Editor Compatible (Discrete)
No
Feature: Quick Disconnect
Yes
IO Link
No
Feature: Audible
No
Feature: Hazardous Area
No
Primary Window Material
Polycarbonate Diffused
Max Op. Temperature (°C)
50
Min Op. Temperature (°C)
-40
Button Operation
Momentary
Storage Temp (°C)
-40 to 70

NEMA Type and UL Type Rating

NEMA and UL 4X, 13

Environmental Rating

IP67; IP69

Physical Dimensions (LxWxH or DxH mm)

30.0 x 54.5

Input Type

PNP

Max Output Response Time (ms)

150

Output Type

PNP

Max Input Response Time (ms)

300

Pick-to-Light Function

Supply Voltage

12-30 V dc

Number of Input Pins/Conductors

Lumens Color 1

4.4

Operation

Normally Open

Max Current Color (mA)

Color 1 - Wavelength/Color Temp/Coordinates

580 nm

Quick Disconnect Type

M12 (Euro)

Connection

Pigtail QD

Product Size (mm)

Animation Option 1

Solid On

Color Technology

Standard LED

Color Option 1

Yellow

Power Source

Housing Style

Base Mount - Dome Window

Primary Housing Material

Polycarbonate

Number of Colors / Segments

Activation Function

Capacitive Touch

Color Input Control

Individual (One wire/color, same number of colors as input wires)

Mounting Thread

M22 x 1.5

Actuation

Yes

Power

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K30APT2YXDQP on Powermatic Associates is $127.00. Order now.

About the product

Banner Engineering K30APT2YXDQP, part of the EZ-LIGHT series, is a capacitive touch-sensitive pick-to-light device designed with Gen.2 LED illumination in a black housing. It features a dome window shape made from polycarbonate (PC) for both the diffused window and the base. This part is pre-wired with a 6" / 15cm pigtail that terminates with a 4-pin M12 Euro-style QD connector. It operates on a supply voltage of 12Vdc-30Vdc, with 24Vdc nominal. The K30APT2YXDQP can be mounted via surface, base, or pole flush with a 22mm hole and M22 thread, and has a 30mm / 1-3/16" dome diameter. It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and is rated with a degree of protection of IP67 and IP69K. The operating mode is momentary, with a job light (yellow) that remains on when the input is active, and touch activates the output only with a normally open (NO) touch output. It includes 1 x digital input (12-30Vdc; PNP) for job color control and 1 x digital output (12-30Vdc; PNP) for touch functionality.
