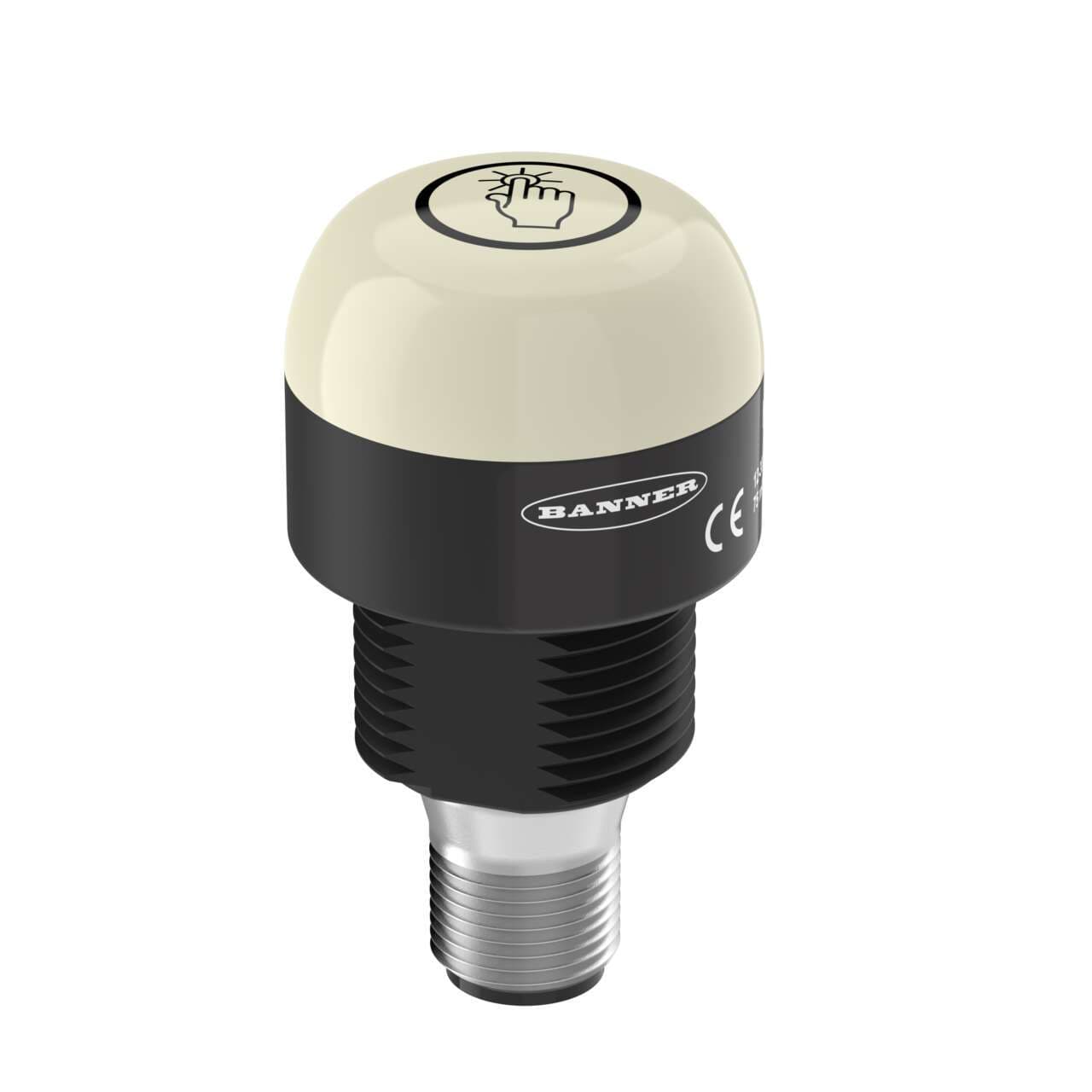

K30APTGREQ Banner Pick-to-Light Sensors
Part#:K30APTGREQ
Alt. Part#:85132
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K30 Series: 2-Color Touch Sensor; Job Light Overrides Touch Light; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Input: PNP (NO); Colors: Green Red; M12 Integral QD
Product Details
- Weight 45.3592 g
- Country Of Origin MX
- Activation Function Capacitive Touch
- Animation Option 1 Solid On
- Number of Input Pins/Conductors 4
- Max Op. Temperature (°C) 50
- Feature: Audible No
- Housing Style Base Mount - Dome Window
- Quick Disconnect Type M12 (Euro)
- Max Output Response Time (ms) 150
- Button Operation Momentary
- Modbus RTU No
- Power Source DC
- Mis-Pick Light Red
- Physical Dimensions (LxWxH or DxH mm) 30.0 x 54.5
- Primary Housing Color Black
- Wireless No
- Power DC
- Color Option 1 Green
- Output Type PNP
- Environmental Rating IP67; IP69
- Feature: Chemical Resistant No
- Actuation Yes
- Max Current Color (mA) 55
- Max Input Response Time (ms) 300
- Primary Window Material Polycarbonate Diffused
- Job Light Green
- Product Size (mm) 30
- Mounting Thread M22 x 1.5
- Pick-to-Light Function E
- NEMA Type and UL Type Rating NEMA 4X, 13
- Feature: Washdown Rated Yes
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color Technology Standard LED
- Operation Normally Open
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Feature: Hazardous Area No
- Pro-Editor Compatible (Discrete) No
- Color Option 2 Red
- Primary Housing Material Polycarbonate
- Input Type PNP
- Storage Temp (°C) -40 to 70
- IO Link No
- Number of Colors / Segments 2
- Connection Integral QD
- Supply Voltage 12-30 V dc
- Min Op. Temperature (°C) -40
- Multi-Color Device Single Color On
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K30APTGREQ on Powermatic Associates is $127.00. Order now.
About the product
Banner Engineering K30APTGREQ, part of the EZ-LIGHT series, is a capacitive touch-sensitive pick-to-light device designed with LED illumination in a black housing. It features a dome window shape with both the window and base made from polycarbonate (PC). This part is equipped with a 4-pin M12 Euro-style QD connector for connectivity and operates on a supply voltage of 12Vdc-30Vdc, with 24Vdc nominal. It offers versatile mounting options including surface, base, or pole flush with a 22mm hole and M22 thread. The dome diameter is 30mm or approximately 1-3/16 inches. It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and is rated with a degree of protection of IP67, IP69K, NEMA 4X, and NEMA 13. The operating mode includes a momentary job light (green) that turns on when the job input is active, touch activation for output, and a mispick light (red) for inactive job inputs, with a normally open (NO) touch output. The current consumption is 55mA. It also features 1 x digital input (12-30Vdc; PNP) for job color control and 2 x digital outputs (12-30Vdc; PNP) for touch and mispick indications.
