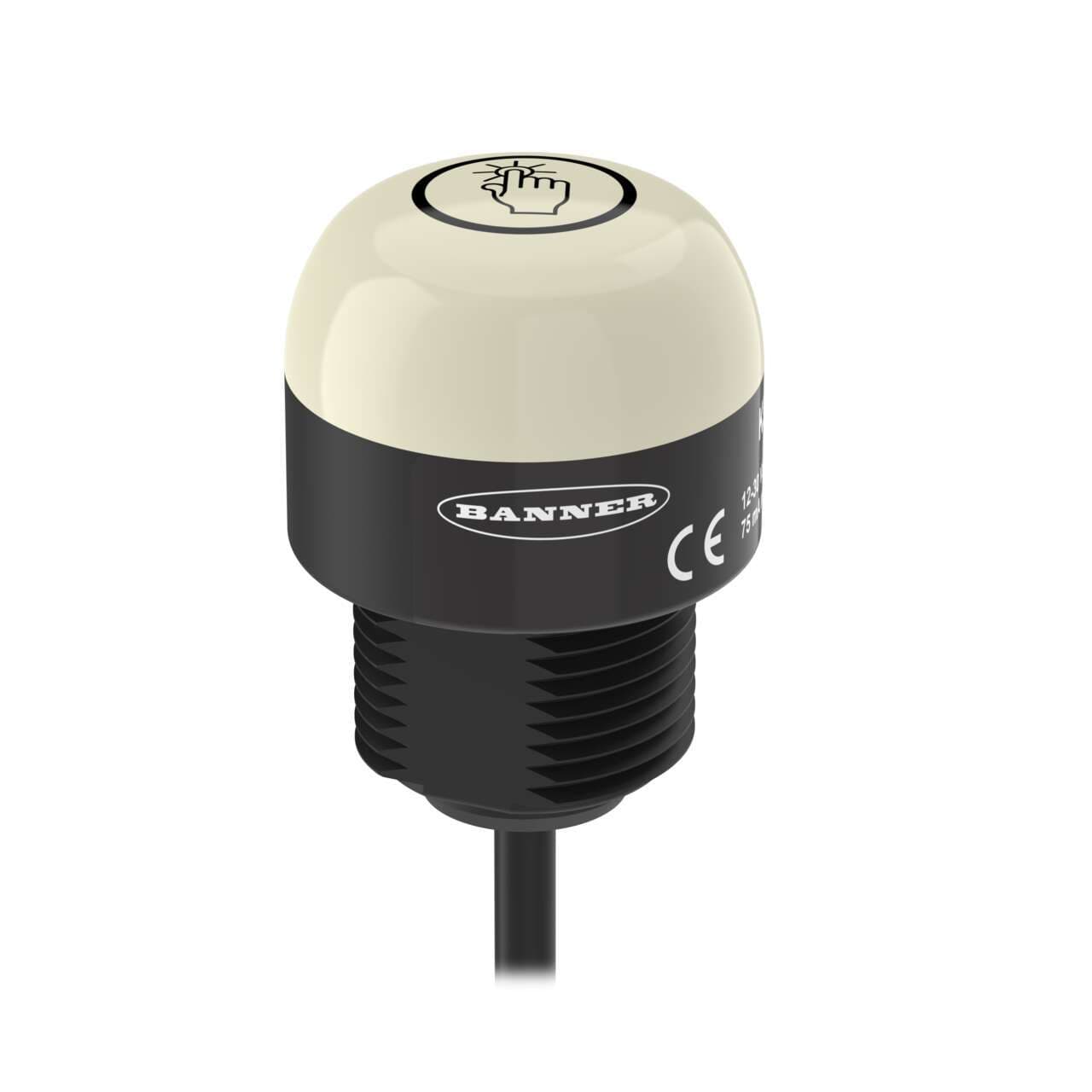

K30APTXYF2 Banner Pick-to-Light Sensors

K30APTXYF2 on Powermatic Associates
Banner
  • K30APTXYF2
  • K30APTXYF2

Part#:K30APTXYF2

Alt. Part#:94084

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

K30 Series: 1-Input-Color Touch Sensor; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Input: PNP (NO); Colors: None - Power Applied, Yellow - Input Active; 2 m (6.5 ft) Integral Cable

Product Details

  • Weight
    58.96696 g
  • Country Of Origin
    MX
  • Product Size (mm)
    30
  • Number of Input Pins/Conductors
    4
  • Storage Temp (°C)
    -40 to 70
  • Multi-Color Device
    Single Color On
  • Mounting Thread
    M22 x 1.5
  • Power Source
    DC
  • Output Type
    PNP
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
  • Power
    DC
  • Color Option 2
    Yellow
  • Environmental Rating
    IP67; IP69
  • Primary Window Material
    Polycarbonate Diffused
  • Wireless
    No
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Connection
    Cable
  • Max Output Response Time (ms)
    150
  • Button Operation
    Momentary
  • Activation Function
    Capacitive Touch
  • Operation
    Normally Open
  • Min Op. Temperature (°C)
    -40
  • Feature: Washdown Rated
    Yes
  • Housing Style
    Base Mount - Dome Window
  • Pick-to-Light Function
    F2
  • Max Input Response Time (ms)
    300
  • Primary Housing Color
    Black
  • Modbus RTU
    No
  • Actuation
    Yes
  • Max Current Color (mA)
    55
  • Physical Dimensions (LxWxH or DxH mm)
    30.0 x 41.0
  • Feature: Audible
    No
  • IO Link
    No
  • Primary Housing Material
    Polycarbonate
  • Supply Voltage
    12-30 V dc
  • NEMA Type and UL Type Rating
    NEMA 4X, 13
  • Feature: Chemical Resistant
    No
  • Number of Colors / Segments
    1
  • Color Technology
    Standard LED
  • Input Type
    PNP
  • Max Op. Temperature (°C)
    50
  • Feature: Hazardous Area
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Feature: Quick Disconnect
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K30APTXYF2 on Powermatic Associates is $127.00. Order now.

About the product

Banner Engineering K30APTXYF2, part of the EZ-LIGHT series, is a capacitive touch-sensitive pick-to-light device designed with LED illumination in a black housing. It features a dome window shape with both the window and base made from polycarbonate (PC). This part is pre-wired with a 2m / 6.5ft 4-wire cable terminated with bare end flying leads and operates on a supply voltage of 12Vdc-30Vdc (24Vdc nom.). It offers versatile mounting options including surface, base, or pole flush with a 22mm hole M22 thread. The dome diameter is 30mm / 1-3/16". It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and is rated with a degree of protection of IP67, IP69K, NEMA 4X, and NEMA 13. The operating mode is momentary, with the job light (yellow) turning on when the input is active, and touch activates the output only with a normally open (NO) touch output. It has a current consumption of 55mA, one digital input (12-30Vdc; PNP) for job color control, and one digital output (12-30Vdc; PNP) for touch.
