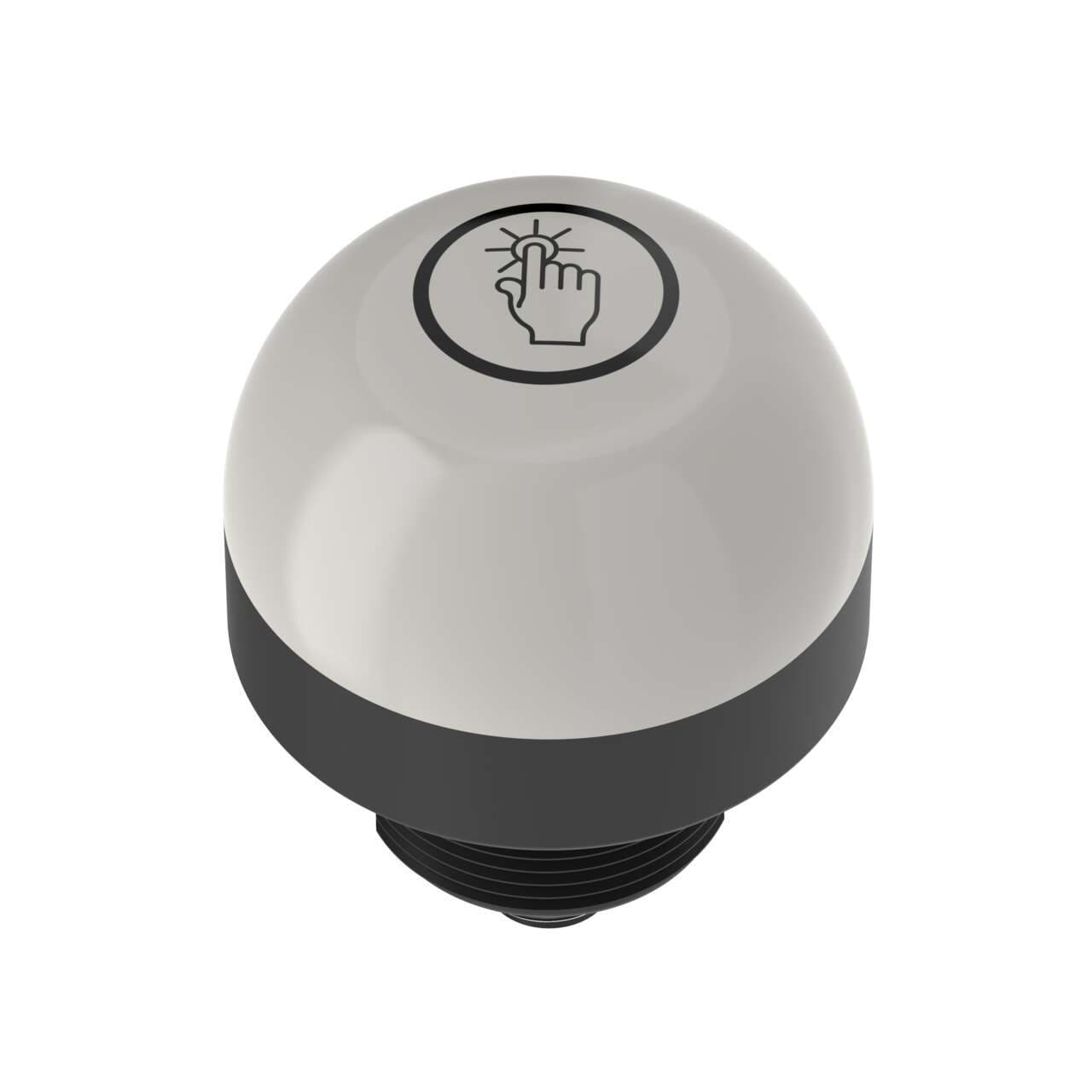

K50APT2GREQ Banner Pick-to-Light Sensors
Part#:K50APT2GREQ
Alt. Part#:96696
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K50 Series EZ-LIGHT: 2-Color Touch Sensor Gen 2; Job Light Overrides Touch Light; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Input: PNP (NO); Colors: Green Red; 5-pin M12 Integral QD
Product Details
- Weight 136.0776 g
- Country Of Origin MX
- Power Source DC
- Color Option 1 Green
- Mis-Pick Light Red
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Feature: Audible No
- Job Light Green
- Number of Colors / Segments 2
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- I/O Block Compatible Yes
- Primary Housing Color Black
- Modbus RTU No
- Power DC
- Product Size (mm) 50
- Animation Option 1 Solid On
- Supply Voltage 12-30 V dc
- Storage Temp (°C) -40 to 70
- Multi-Color Device Single Color On
- Primary Housing Material Polycarbonate
- Quick Disconnect Type M12 (Euro)
- Operation Normally Open
- Max Op. Temperature (°C) 50
- Feature: Chemical Resistant No
- Mounting Thread M30 x 1.5
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Pick-to-Light Function E
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 66.0
- Primary Window Material Polycarbonate Diffused
- Connection Integral QD
- Actuation Yes
- Housing Style Base Mount - Dome Window
- Color Technology Standard LED
- Lumens Color 2 13.0
- Input Type PNP
- Button Operation Momentary
- Pro-Editor Compatible (Discrete) No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color Option 2 Red
- Output Type PNP
- Min Op. Temperature (°C) -40
- IO Link No
- Activation Function Capacitive Touch
- Lumens Color 1 29.0
- Number of Input Pins/Conductors 5
- Max Output Response Time (ms) 50
- Max Current Color (mA) 75
- Feature: Hazardous Area No
- Environmental Rating IP67; IP69
- Wireless No
- Feature: Washdown Rated Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50APT2GREQ on Powermatic Associates is $159.00. Order now.
About the product
Banner Engineering K50APT2GREQ is a capacitive touch-sensitive pick-to-light device from the EZ-LIGHT series, designed with Gen.2 LED illumination. It features a black housing with a dome window shape, constructed from polycarbonate (PC) for both the diffused window and the base. This part is pre-equipped with a 5-pin M12 Euro-style QD connector for connectivity. It operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc as the nominal voltage. The K50APT2GREQ offers versatile mounting options, including surface or base pole with an M30 thread, and has a 50mm / 2" dome diameter. It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and is rated with a degree of protection of IP67 and IP69K. The operating mode includes a momentary job light (Green) that is ON when the job input is active, and touch activation triggers the output only. Touch with an inactive job input activates the mispick light (Red). It features a NO (Normally Open) touch output, with a current consumption of 75mA. Additionally, it has 1 x digital input (12-30Vdc; PNP) for JOB color control and 2 x digital outputs (12-30Vdc; PNP) for Touch and Mispick functions.
