K50APTGRYF2 Banner Pick-to-Light Sensors
Part#:K50APTGRYF2
Alt. Part#:30379
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K50 Series EZ-LIGHT: 3-Input-Color Touch Sensor; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Input: PNP (NO); Colors: Green Red Yellow; 2 m (6.5 ft) PVC Cable
Product Details
- Weight 226.796 g
- Country Of Origin MX
- Actuation Yes
- Animation Option 1 Solid On
- Max Current Color (mA) 75
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 55.0
- Feature: Chemical Resistant No
- Primary Housing Material Polycarbonate
- Color Technology Standard LED
- Color Option 3 Yellow
- Max Op. Temperature (°C) 50
- Primary Window Material Polycarbonate Diffused
- Product Size (mm) 50
- Mounting Thread M30 x 1.5
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Supply Voltage 12-30 V dc
- Max Output Response Time (ms) 50
- Feature: Audible No
- Power Source DC
- Lumens Color 1 29.0
- Pick-to-Light Function F2
- Button Operation Momentary
- Feature: Quick Disconnect No
- Power DC
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Number of Input Pins/Conductors 8
- Feature: Hazardous Area No
- Number of Colors / Segments 3
- Activation Function Capacitive Touch
- Lumens Color 2 13.0
- Operation Normally Open
- Min Op. Temperature (°C) -40
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color Option 2 Red
- Output Type PNP
- Primary Housing Color Black
- Cable Length (m) 0.15
- Connection Cable
- Color 3 - Wavelength/Color Temp/Coordinates 591 nm
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Housing Style Base Mount - Dome Window
- Color Option 1 Green
- Lumens Color 3 24.0
- Input Type PNP
- Feature: Washdown Rated Yes
- Wireless No
- Pro-Editor Compatible (Discrete) No
- IO Link No
- Environmental Rating IP67; IP69
- Storage Temp (°C) -40 to 70
- Modbus RTU No
- Multi-Color Device Single Color On
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50APTGRYF2 on Powermatic Associates is $180.00. Order now.
About the product

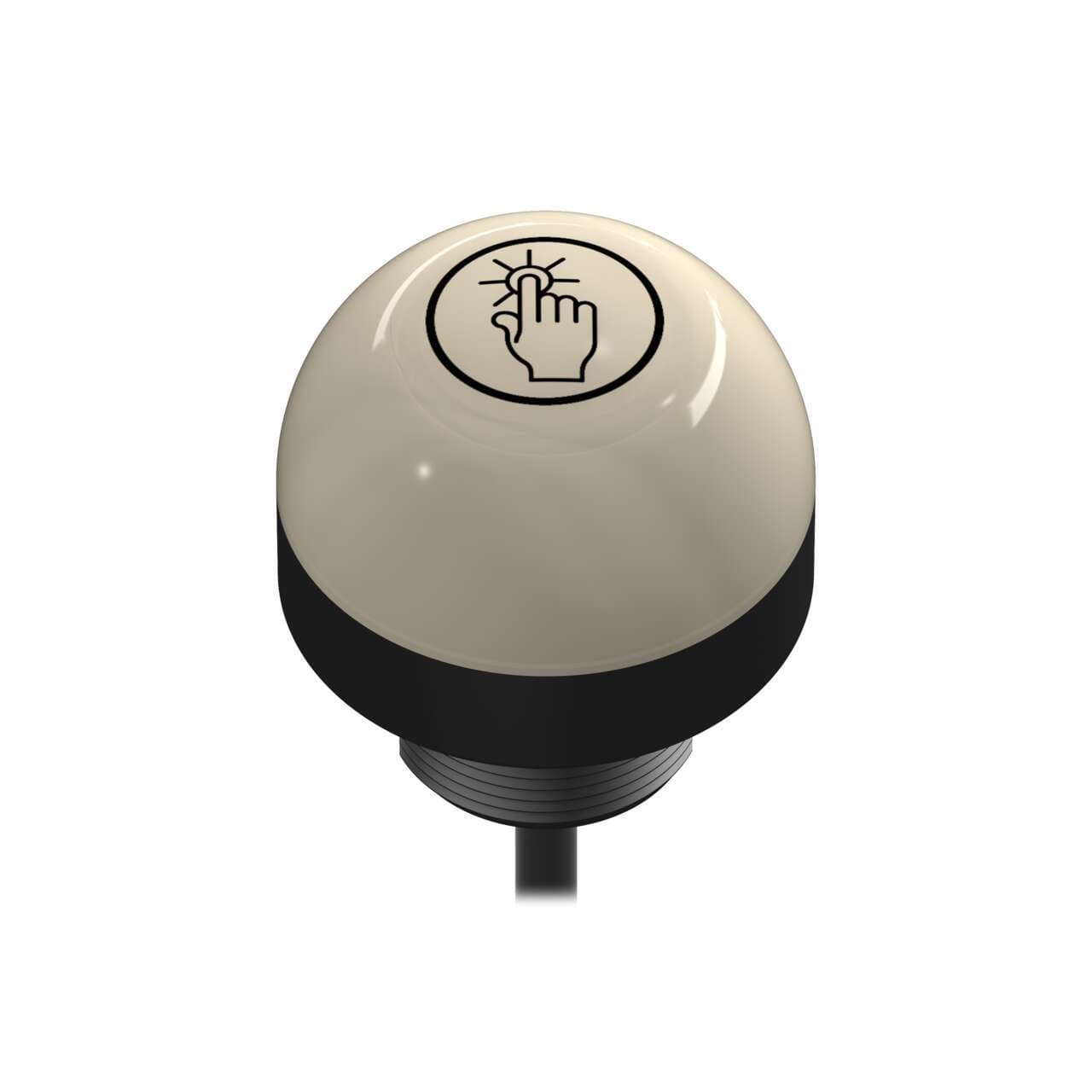

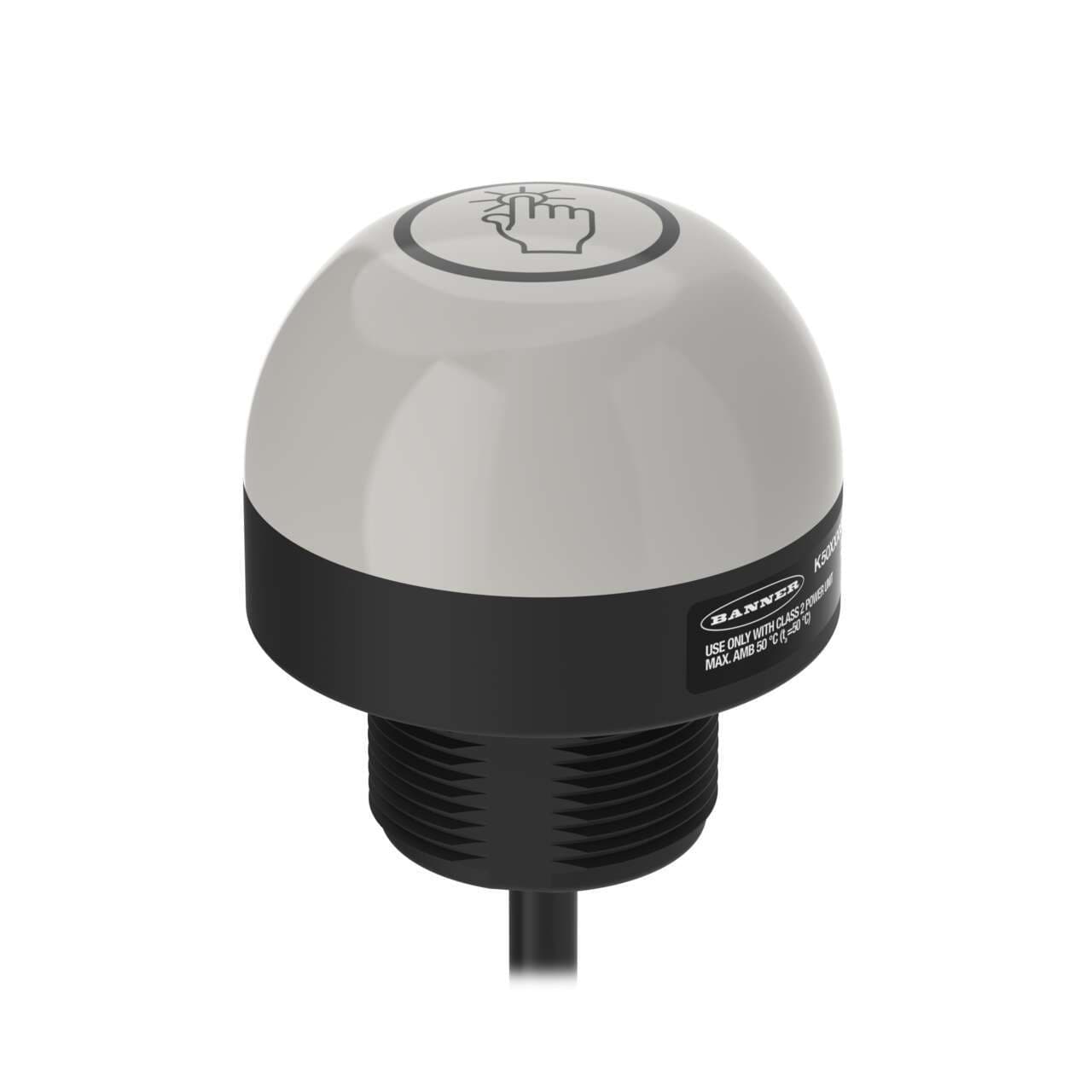

Banner Engineering K50APTGRYF2, part of the EZ-LIGHT series, is a capacitive touch-sensitive pick-to-light device designed with LED illumination. It features a black housing with a dome window shape, constructed from polycarbonate (PC) for both the diffused window and the base. This part is pre-wired with a 2m / 6.5ft 8-wire cable that terminates with bare end flying leads, supporting a supply voltage range of 12Vdc-30Vdc (24Vdc nominal). It offers versatile mounting options including surface or base pole with an M30 thread and has a 50mm / 2" dome diameter. The K50APTGRYF2 operates within an ambient air temperature range of -40°C to +50°C and is rated with a degree of protection of IP67 and IP69K. Its operating mode is momentary, with a job light (G/R/Y; Green or Red or Yellow) that turns ON when one of the three job inputs is active, and touch activates the output only in a Normally Open (NO) touch output configuration. It includes 3 x digital inputs (12-30Vdc; PNP) for JOB color control and 1 x digital output (12-30Vdc; PNP) for Touch.
