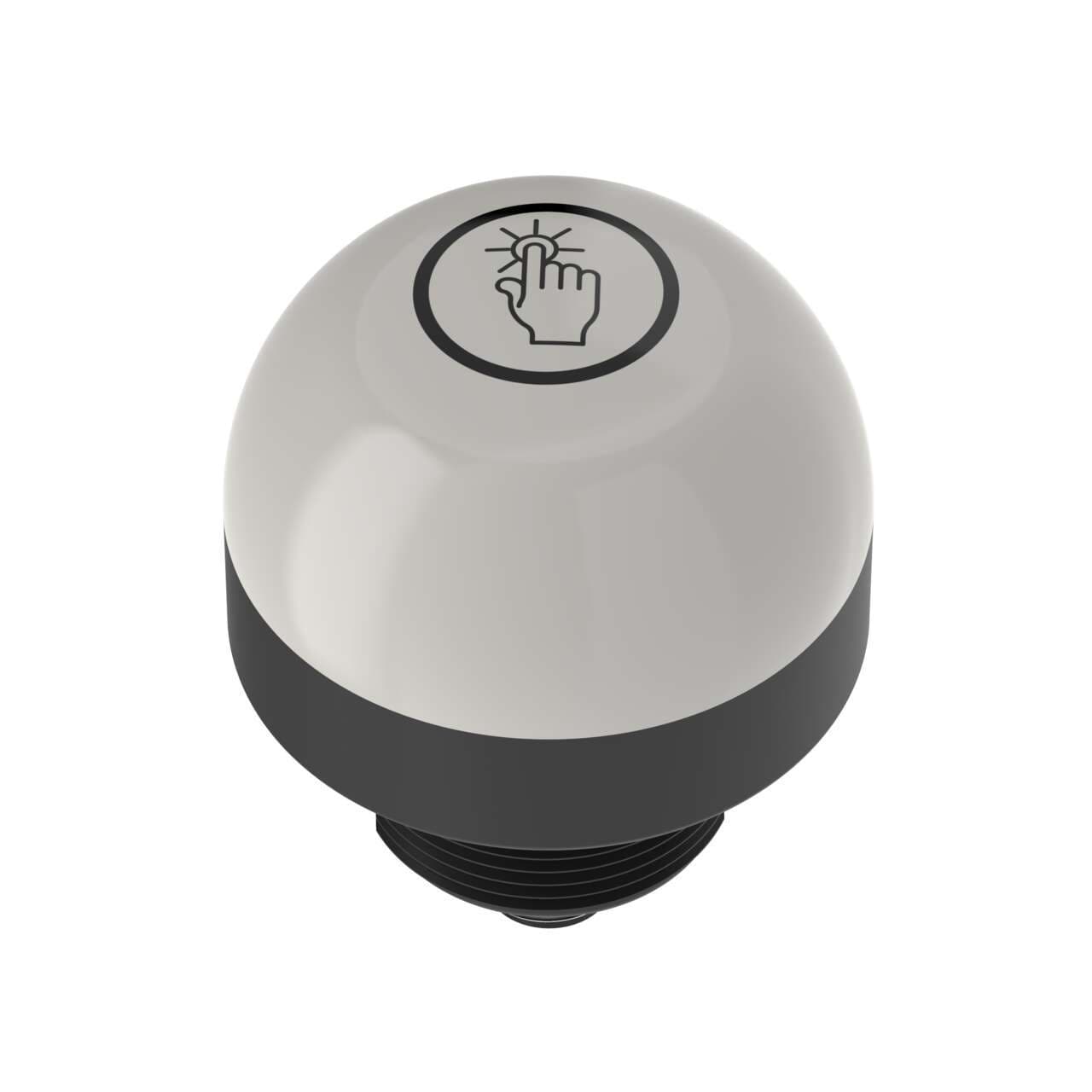

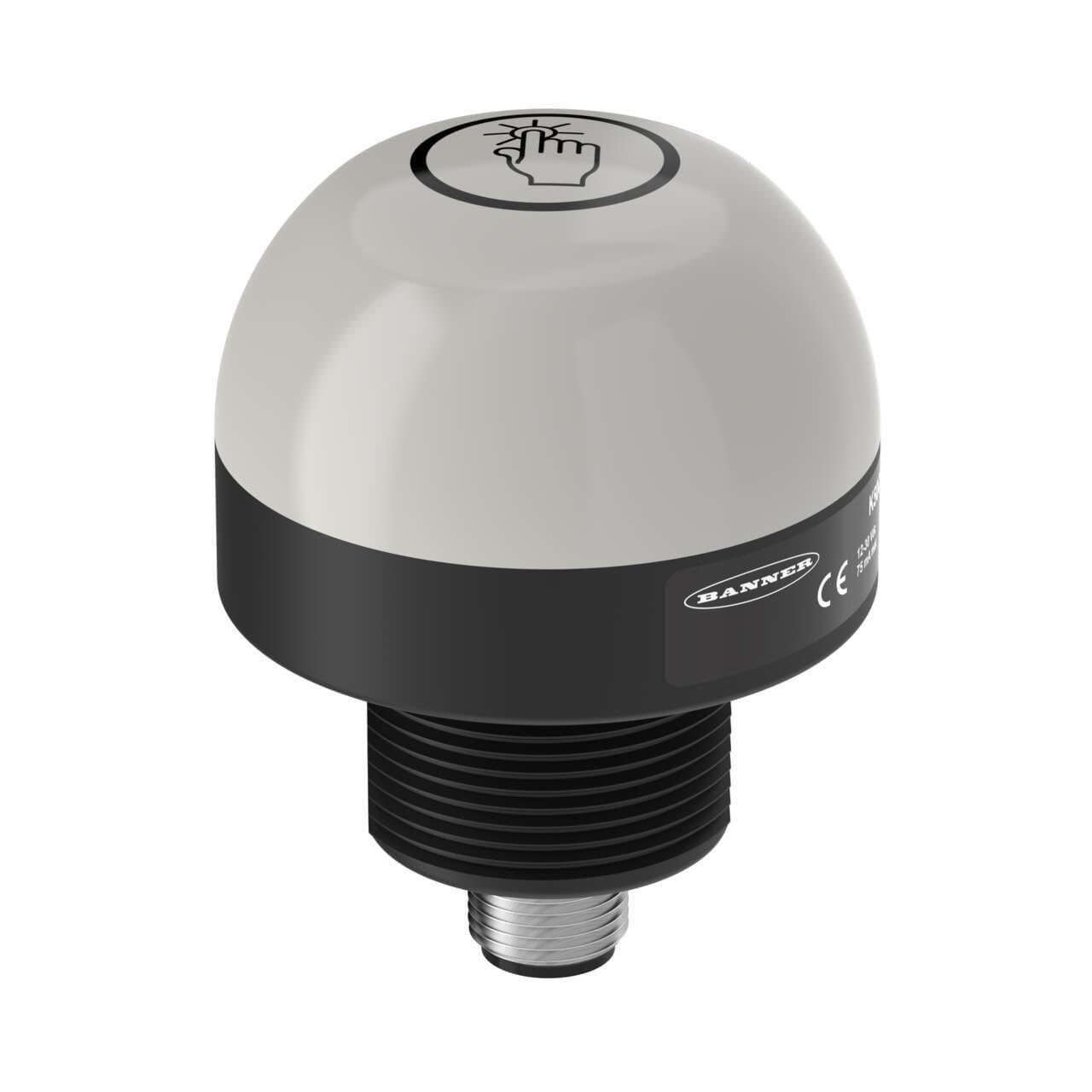

K50APTGRYF2Q Banner Pick-to-Light Sensors

Product Details

• Weight
  181.4368 g
• Country Of Origin
  MX
• Activation Function
  Capacitive Touch
• Color 1 - Wavelength/Color Temp/Coordinates
  525 nm
• Max Current Color (mA)
  75
• Max Op. Temperature (°C)
  50
• Feature: Audible
  No
• Housing Style
  Base Mount - Dome Window
• Quick Disconnect Type
  M12 (Euro)
• Color 3 - Wavelength/Color Temp/Coordinates
  591 nm
• Physical Dimensions (LxWxH or DxH mm)
  50.0 x 66.0
• Feature: Washdown Rated
  Yes
• Cable Length (m)
  2
• Animation Option 1
  Solid On
• Lumens Color 3
  24.0
• Max Output Response Time (ms)
  50
• Feature: Hazardous Area
  No
• Power Source
  DC
• Color Technology
  Standard LED
• Lumens Color 2
  13.0
Supply Voltage
12-30 V dc
Max Op. Relative Humidity Non-Condensing (%)
90% @ 50°C
Mounting Thread
M30 x 1.5
Connection
Integral QD
Pick-to-Light Function
F2
Min Op. Temperature (°C)
-40
Primary Window Material
Polycarbonate Diffused
Actuation
Yes
Product Size (mm)
50
Color Option 3
Yellow
Output Type
PNP
Primary Housing Color
Black
Modbus RTU
No
Color Input Control
Individual (One wire/color, same number of colors as input wires)
Lumens Color 1
29.0
Operation
Normally Open
Storage Temp (°C)
-40 to 70
Wireless
No
Primary Housing Material
Polycarbonate
Number of Colors / Segments
3
Color Option 2
Red
Number of Input Pins/Conductors
8
Environmental Rating
IP67; IP69
Feature: Chemical Resistant
No
Power
DC
Color Option 1
Green
Color 2 - Wavelength/Color Temp/Coordinates
625 nm
Input Type
PNP
Button Operation
Momentary
Pro-Editor Compatible (Discrete)
No
Multi-Color Device
Single Color On
IO Link
No
