K50BLXBXP W/10 Banner Pick-to-Light Sensors

K50BLXBXP W/10 on Powermatic Associates
Banner
  • K50BLXBXP W/10
  • K50BLXBXP W/10

Part#:K50BLXBXP W/10

Alt. Part#:85089

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

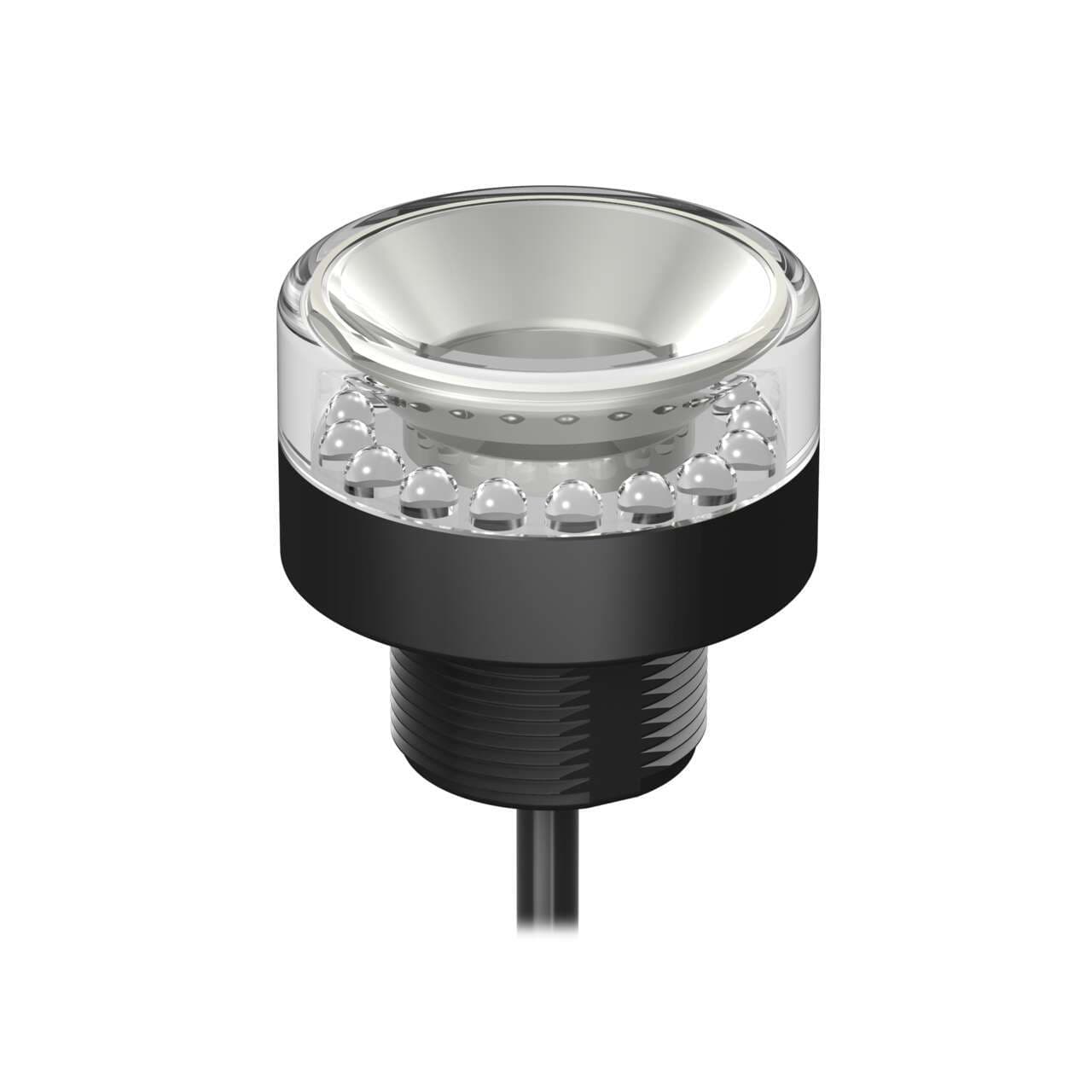

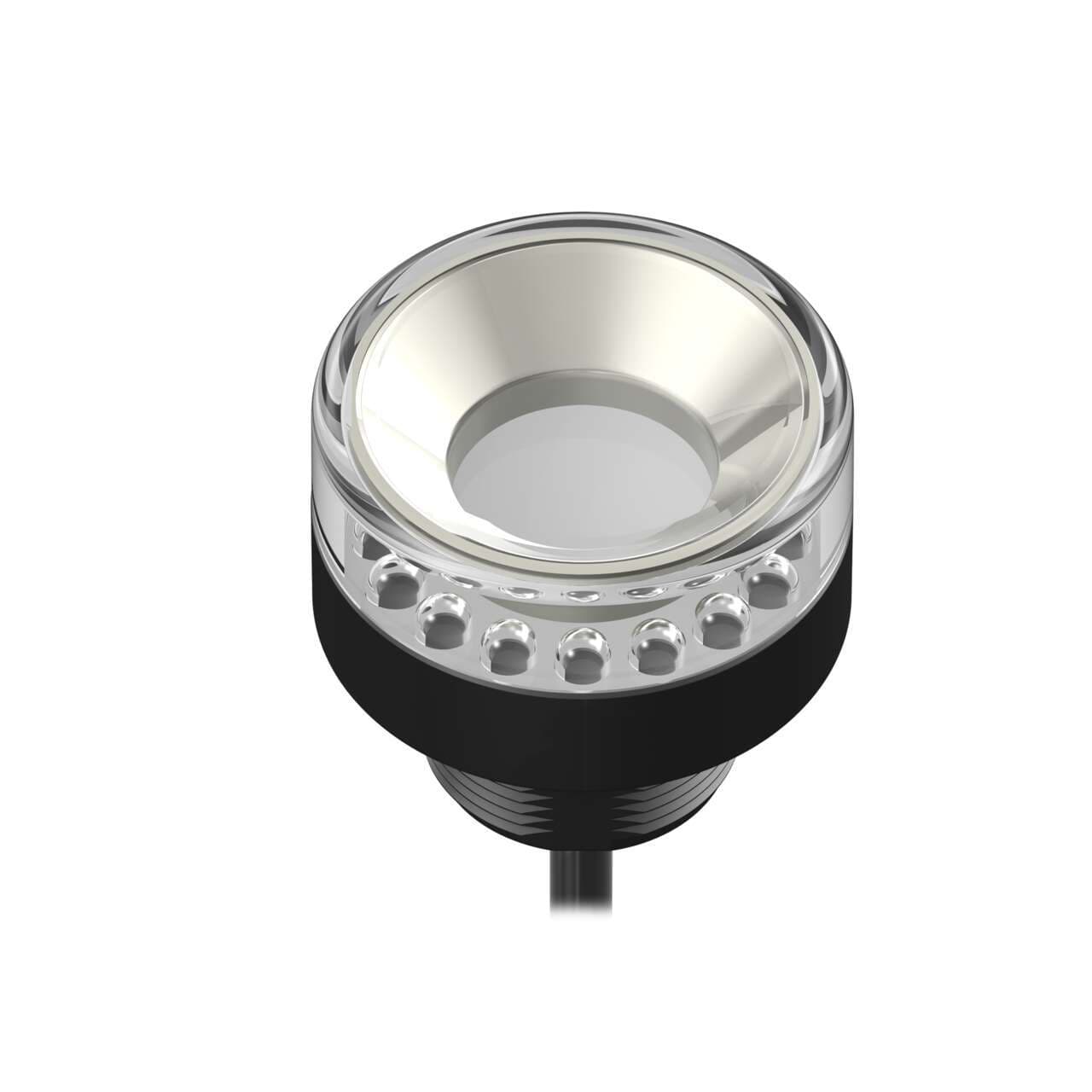

K50 Beacon EZ-LIGHT: 1-Color Perimeter View; Voltage: 12-30 V dc; Housing: Polycarbonate; IP69K; Input: PNP; Color: Blue; 3 m (10 ft) Integral Cable

Product Details

  • Weight
    272.1552 g
  • Country Of Origin
    US
  • Color Technology
    Standard LED
  • Connection
    Cable
  • Supply Voltage
    12-30 V dc
  • Feature: Hazardous Area
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Primary Housing Material
    Polycarbonate
  • Physical Dimensions (LxWxH or DxH mm)
    50.0 x 49.0
  • Min Op. Temperature (°C)
    -40
  • IO Link
    No
  • Product Size (mm)
    50
  • Power Source
    DC
  • Max Input Response Time (ms)
    7
  • Feature: Washdown Rated
    Yes
  • Modbus RTU
    No
  • Color Option 1
    Blue
  • Max Current Color (mA)
    140
  • Max Op. Temperature (°C)
    50
  • Multi-Color Device
    Single Color On
  • Animation Option 1
    Solid On
  • Input Type
    PNP
  • Primary Window Material
    Polycarbonate Clear
  • Feature: Quick Disconnect
    No
  • Mounting Thread
    M30 x 1.5
  • Number of Input Pins/Conductors
    4
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
  • Feature: Audible
    No
  • Number of Colors / Segments
    1
  • Power
    DC
  • NEMA Type and UL Type Rating
    NEMA 4X, 13
  • Primary Housing Color
    Black
  • Indication Intensity
    High Brightness & Daylight Visible
  • Housing Style
    Base Mount - Flat Window
  • Indication
    Yes
  • Environmental Rating
    IP67; IP69
  • Feature: Chemical Resistant
    No
  • Wireless
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50BLXBXP W/10 on Powermatic Associates is $135.00. Order now.

About the product

Banner Engineering K50BLXBXP W/10 is a high-intensity industrial LED light beacon from the EZ-LIGHT Beacons series. This beacon features a perimeter view indicator with a single tier and one-color white LED illumination. It has a black housing with a round flat window design, constructed from clear polycarbonate for both the window and the base. The beacon is pre-equipped with a 3-pin 1/2"-20UNF Micro-style QD connector for connectivity. It supports a supply voltage range of 75Vdc-120Vdc (110Vdc nominal) and 85Vac-130Vac (100Vac / 110Vac / 120Vac nominal). The K50BLXBXP W/10 offers versatile mounting options including surface, base pole M30, and 1/2" NPSM thread, with a diameter of 50mm / 2" for the cap. It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and is rated for IP67, IP69K, NEMA 4X, and NEMA 13 degrees of protection, ensuring durability in harsh environments. The current consumption is 16mA, and it features 1 x digital input (85-130Vac / 75-120Vdc) for color control.
