Powermatic Associates Logo

K50BLXBXPQ Banner Pick-to-Light Sensors

K50BLXBXPQ on Powermatic Associates
Banner
  • K50BLXBXPQ
  • K50BLXBXPQ

Part#:K50BLXBXPQ

Alt. Part#:17542

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

K50 Beacon EZ-LIGHT: 1-Color Perimeter View; Voltage: 12-30 V dc; Housing: Polycarbonate; IP69K; Input: PNP; Colors: Blue; 5-pin M12 Integral QD

Product Details

  • Weight
    136.0776 g
  • Country Of Origin
    MX
  • Housing Style
    Base Mount - Flat Window
  • Animation Option 1
    Solid On
  • Max Op. Temperature (°C)
    50
  • Feature: Chemical Resistant
    No
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Color Option 1
    Blue
  • Feature: Washdown Rated
    Yes
  • Feature: Hazardous Area
    No
  • Power
    DC
  • Max Current Color (mA)
    140
  • Min Op. Temperature (°C)
    -40
  • IO Link
    No
  • Input Type
    PNP
  • Feature: Audible
    No
  • Indication
    Yes
  • Number of Input Pins/Conductors
    4
  • Environmental Rating
    IP67; IP69
  • Indication Intensity
    High Brightness & Daylight Visible
  • Primary Housing Material
    Polycarbonate
  • Product Size (mm)
    50
  • Max Input Response Time (ms)
    7
  • Primary Housing Color
    Black
  • Modbus RTU
    No
  • Number of Colors / Segments
    1
  • Quick Disconnect Type
    M12 (Euro)
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
  • Multi-Color Device
    Single Color On
  • Cable Length (m)
    2
  • Color Technology
    Standard LED
  • Physical Dimensions (LxWxH or DxH mm)
    50.0 x 60.0
  • Wireless
    No
  • Power Source
    DC
  • Connection
    Integral QD
  • Primary Window Material
    Polycarbonate Clear
  • Pro-Editor Compatible (Discrete)
    No
  • Mounting Thread
    M30 x 1.5
  • Supply Voltage
    12-30 V dc
  • NEMA Type and UL Type Rating
    NEMA 4X, 13
  • Feature: Quick Disconnect
    Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50BLXBXPQ on Powermatic Associates is $128.00. Order now.

About the product

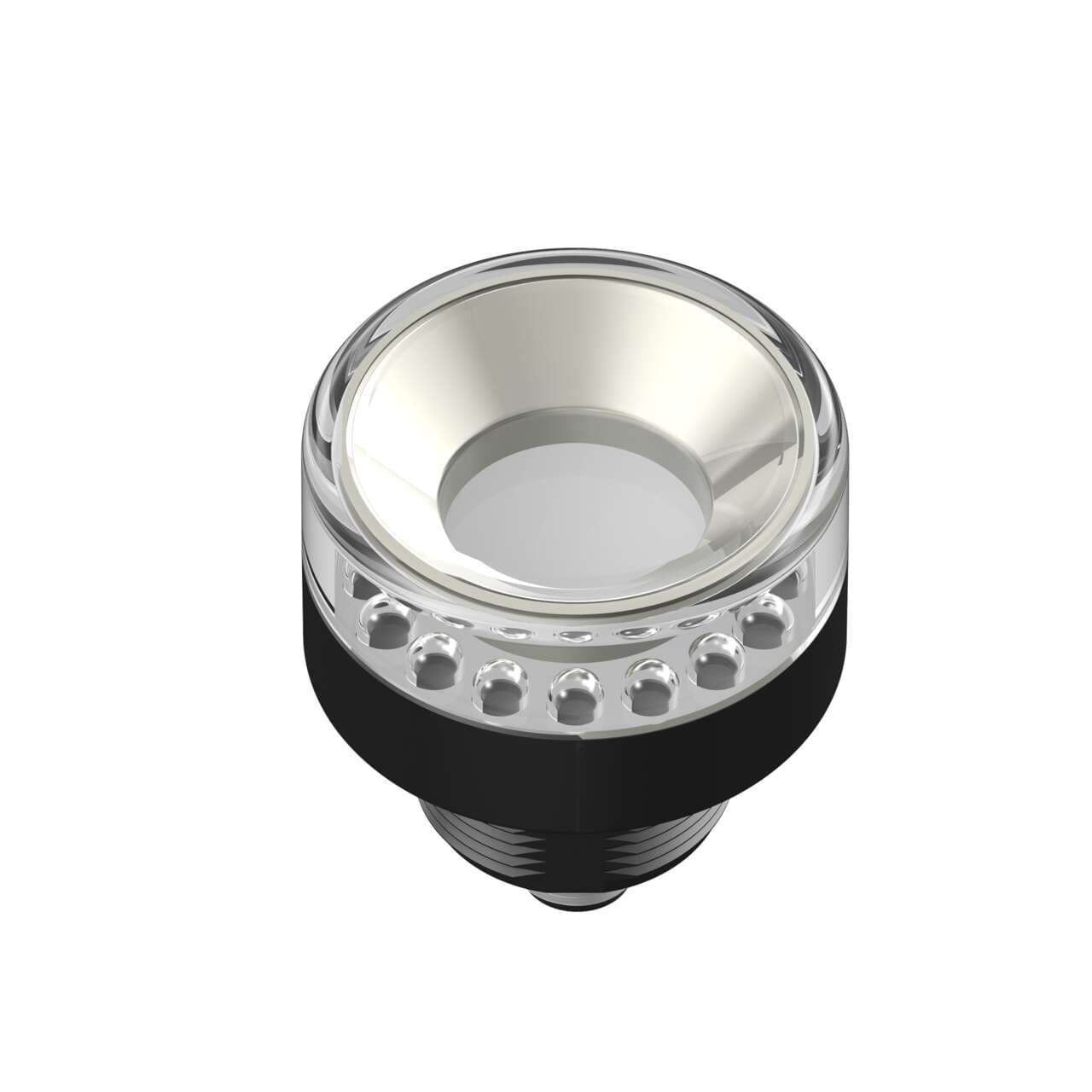

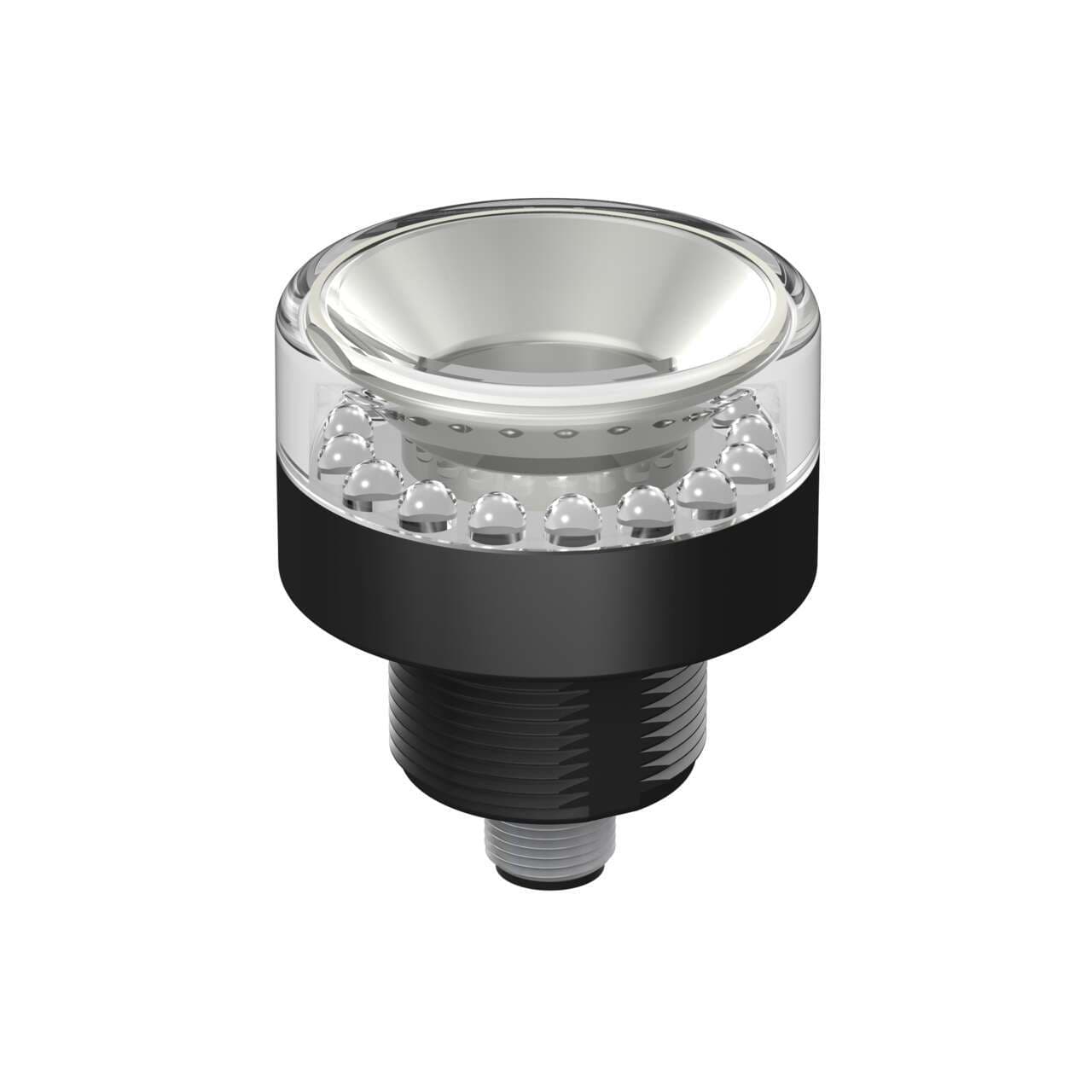

Banner Engineering K50BLXBXPQ is a high-intensity industrial LED light beacon from the EZ-LIGHT Beacons series. This beacon features a perimeter view indicator with a single-tier, 1-color blue LED illumination housed in a black casing. The round flat window is made from clear polycarbonate (PC), as is the base, ensuring durability and clarity. It comes pre-wired with a 2m / 6.5ft 4-wire cable that terminates with bare end flying leads for easy installation. Designed for a wide range of supply voltages, it operates on 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The K50BLXBXPQ can be mounted via surface, base pole M30, or 1/2" NPSM thread, accommodating various installation requirements. With a cap diameter of 50mm / 2 inches, it is compact yet visible. It operates efficiently in ambient air temperatures ranging from -40°C to +50°C. This beacon is designed to withstand harsh environments, evidenced by its IP67, IP69K, NEMA 4X, and NEMA 13 ratings, ensuring protection against dust, water, and corrosion. It has a current consumption of 140mA and includes 1 x digital input (12-30Vdc; PNP) for color control, enhancing its versatility in industrial applications.
