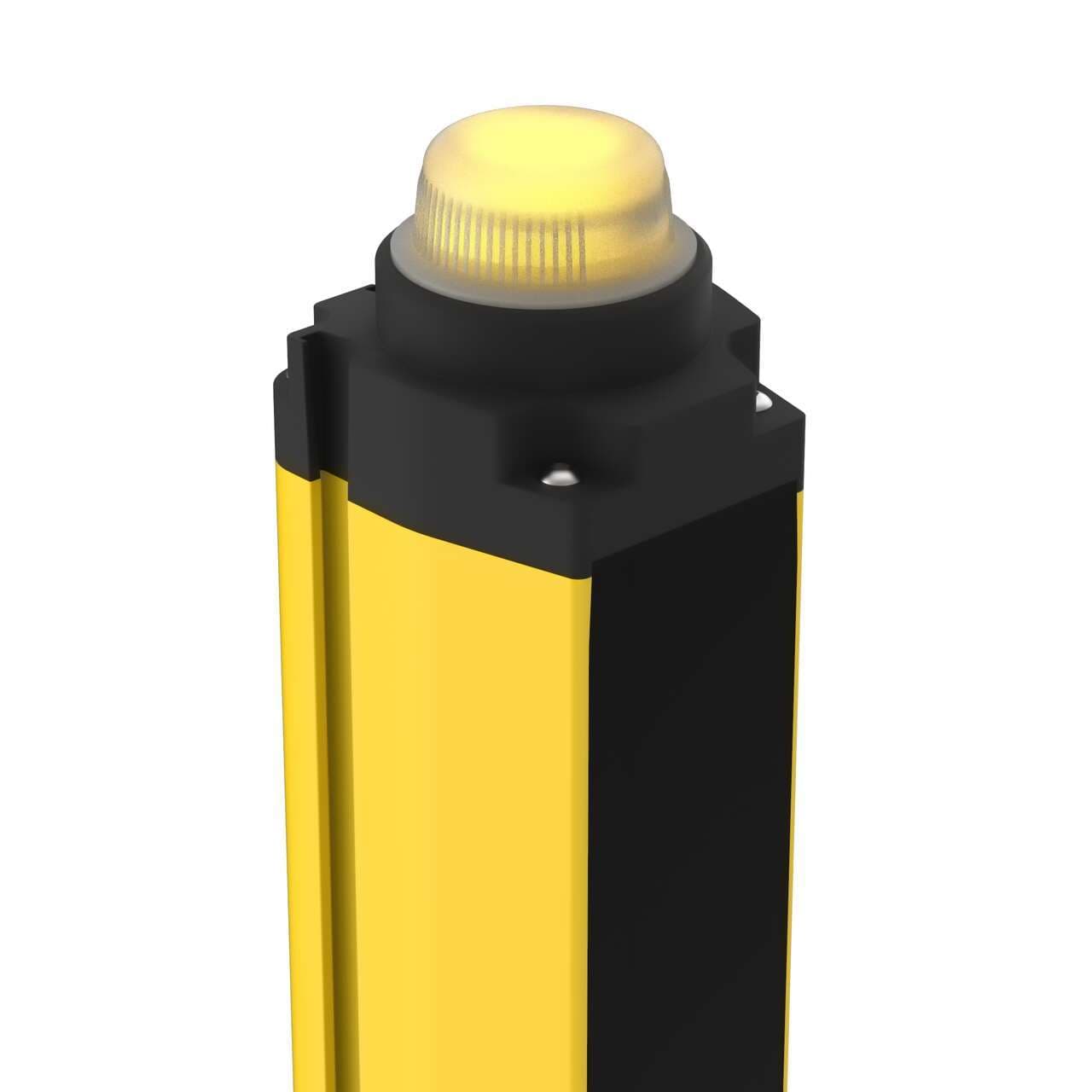

SGSMA2-500Q12 Banner Safety Light Curtains
Part#:SGSMA2-500Q12
Alt. Part#:803233
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
SGS Safety Grid System, Active Transceiver; Beams: 2; Resolution: 500 mm; Range: 0.5-8 m; 12-pin M12 QD; 5-pin M12 QD; Auto/Manual Start/Restart, EDM, Integral Muting; Mounting Hardware Ordered Separately
Product Details
- Weight 2032.09216 g
- Country Of Origin HU
- Dimensions WxD (mm) 52 x 56.9
- SIL Rating SIL3; CL3
- Fixed Blanking No
- External Monitoring Device 1 Channel
- Connector Type M12
- Test Input No
- Housing Finish Yellow Polyester
- Shock 10g at 16ms (6000 cycles)
- Feature: Integral Muting Yes
- Defined Area Height (mm) 500
- Reduced Resolution No
- Housing Material Aluminum; PMMA
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Operating Voltage 24 V dc +/- 20%
- Auxiliary Output No
- Short Protection Yes
- Number of Pins (Receiver/Emitter) 12
- OSSD Rating 24 V dc at 0.5 A each
- Feature: ESD Safe No
- PL Rating Ple
- Electrical Safety Class III
- Fault Output No
- Safety Level Type 4
- Operating Distance (m) 0.5 - 8
- Response Time 11
- Operating Temperature 0 to +55 deg. C; RH 95%
- Supply Current 500 mA
- Overall Length (mm) 606.35
- Resolution (mm) 2 - 500
- Vibration 10-55 Hz at 0.35 mm
- System Type Transceiver - Active
- Recovery Time N/A
- Feature: End-to-End Sensing No
- Primary Housing Material Aluminum
- IP Rating IP65
- Scan Code None
- Trip/Latch Output Selectable
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SGSMA2-500Q12 on Powermatic Associates is $920.00. Order now.
About the product

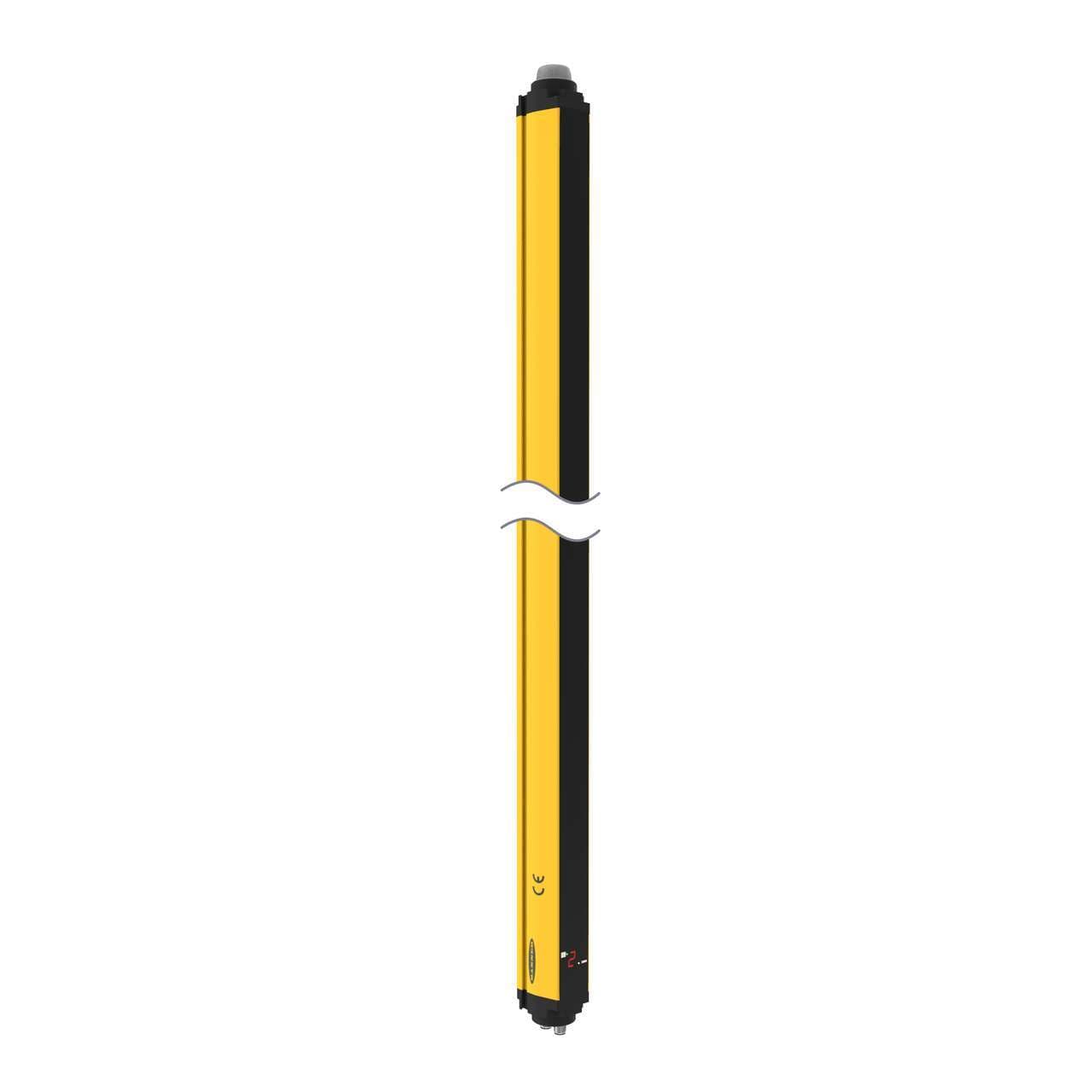

Banner Engineering SGSMA2-500Q12 is a safety light curtain from the SGS series designed with an integrated muting function. This active unit combines transmission and reception on one side and is housed in aluminum with a polycarbonate (PMMA) lens and thermoplastic end caps. It features a pre-equipped 5-pin and 12-pin Euro-style M12 connector for connectivity. The unit has a protective height of 500mm and comes in a yellow housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. With an IP65 degree of protection, it measures 52mm in width, 607mm in height, and 57mm in depth. The SGSMA2-500Q12 offers 2 beams with a 500mm beam spacing/pitch and includes 2 digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs). It has a sensing distance ranging from 50cm to 8m and uses infrared (IR) light with a wavelength of 950 nm. The response time is 11ms, and it is designed for perimeter access guarding with a resolution of 500mm.
