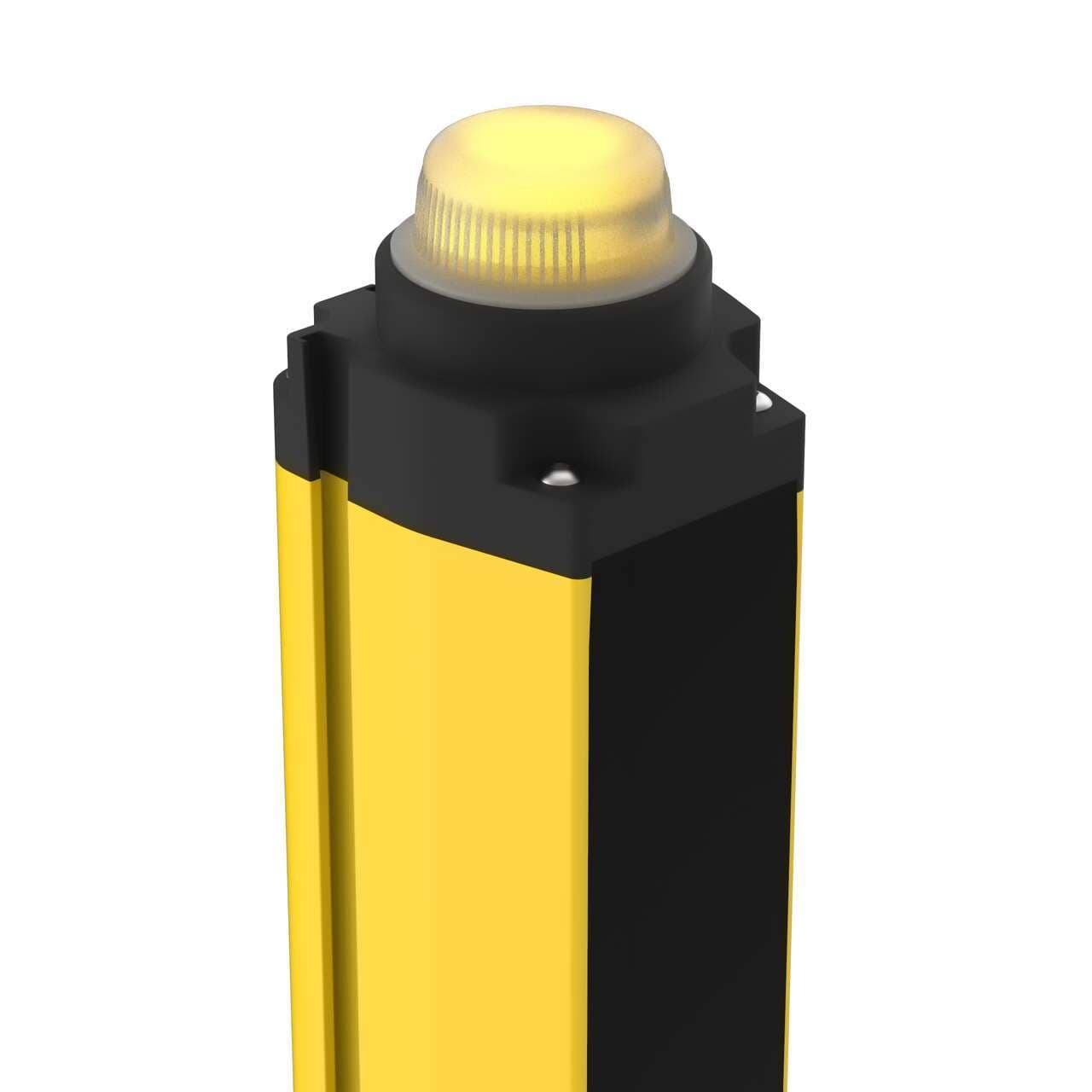

SGSMA4-400Q12 Banner Safety Light Curtains
Part#:SGSMA4-400Q12
Alt. Part#:803236
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
SGS Safety Grid System, Active Transceiver; Beams: 4; Resolution: 400 mm; Range: 0.5-8 m; 12-pin M12 QD; 5-pin M12 QD; Auto/Manual Start/Restart, EDM, Integral Muting; Mounting Hardware Ordered Separately
Product Details
- Weight 4082.328 g
- Country Of Origin HU
- Reduced Resolution No
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Number of Pins (Receiver/Emitter) 12
- Primary Housing Material Aluminum
- Scan Code None
- Supply Current 500 mA
- Fixed Blanking No
- Resolution (mm) 4 - 400
- External Monitoring Device 1 Channel
- PL Rating Ple
- Electrical Safety Class III
- Connector Type M12
- IP Rating IP65
- Response Time 12
- Defined Area Height (mm) 1200
- Feature: ESD Safe No
- Safety Level Type 4
- Operating Temperature 0 to +55 deg. C; RH 95%
- Operating Distance (m) 0.5 - 8
- Vibration 10-55 Hz at 0.35 mm
- Overall Length (mm) 1306.35
- Dimensions WxD (mm) 52 x 56.9
- Recovery Time N/A
- Test Input No
- SIL Rating SIL3; CL3
- Short Protection Yes
- Operating Voltage 24 V dc +/- 20%
- OSSD Rating 24 V dc at 0.5 A each
- Auxiliary Output No
- Housing Finish Yellow Polyester
- Feature: End-to-End Sensing No
- System Type Transceiver - Active
- Housing Material Aluminum; PMMA
- Feature: Integral Muting Yes
- Shock 10g at 16ms (6000 cycles)
- Trip/Latch Output Selectable
- Fault Output No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SGSMA4-400Q12 on Powermatic Associates is $1,311.00. Order now.
About the product

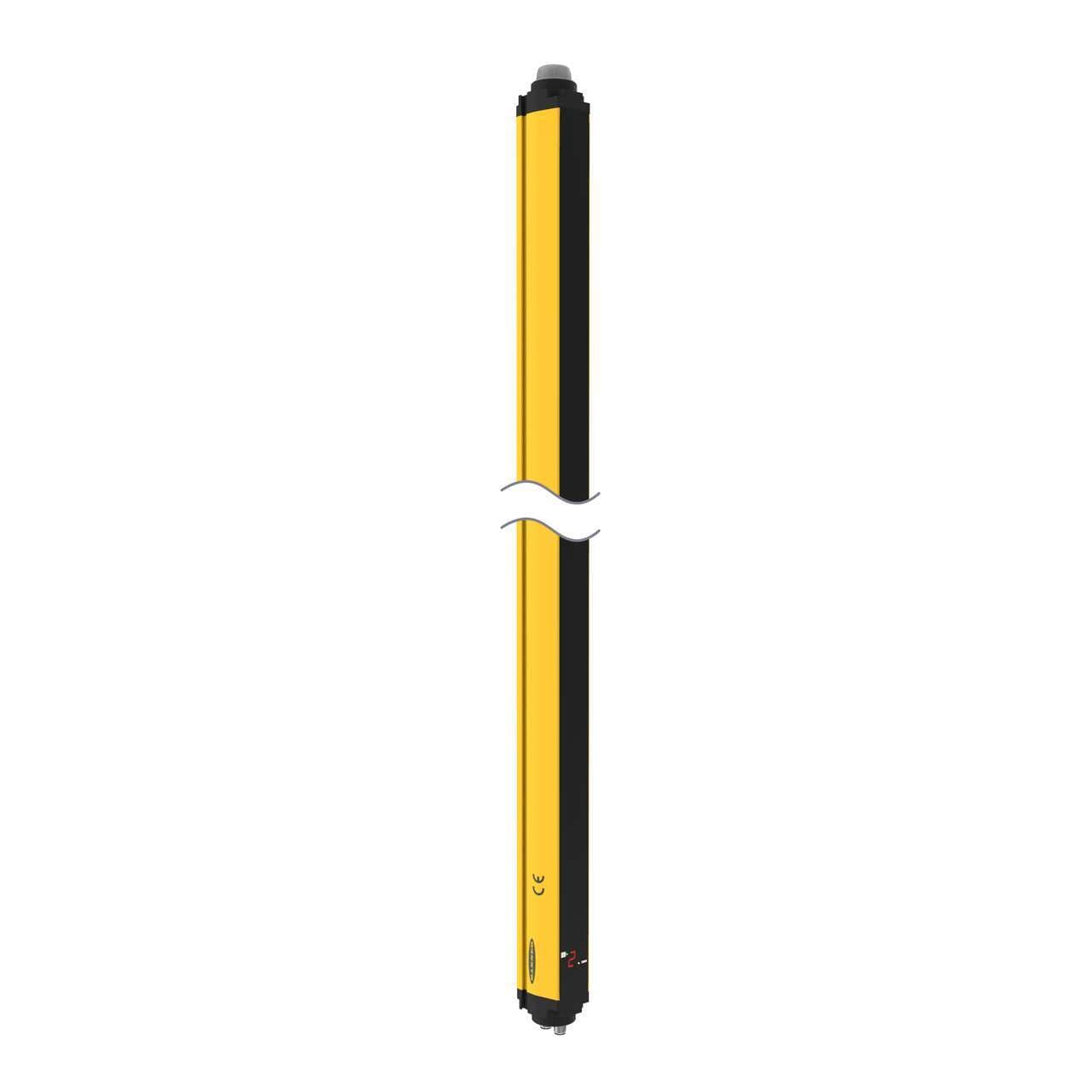

Banner Engineering SGSMA4-400Q12 is a safety light curtain designed for perimeter access guarding with a protective height of 1200mm. It features an integrated muting function and operates as an active unit with both transmitter and receiver on one side. The housing is made of aluminum, with a polycarbonate (PMMA) lens and thermoplastic end caps. It is pre-equipped with both 5-pin and 12-pin Euro-style M12 connectors for connectivity. The unit is yellow, operates on a 24Vdc supply voltage, and can function within an ambient air temperature range of 0 to +55°C. It is rated IP65 for protection against dust and water jets. The dimensions are 52mm in width, 1307mm in height, and 57mm in depth. The light curtain features 4 beams with a 400mm beam spacing, two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), and a sensing distance ranging from 50cm to 8m. The response time is 12ms, and it emits infrared light with a wavelength of 950 nm.
SGSMA4-400Q12 Related Documents
Similar products from: Banner Safety Light Curtains
Manufacturer warranty
SGSMA4-400Q12 Banner
$1,311.00
Your price can be lower.
Log in or Create account to check your discount
Select Qty:
$1,311.00
$1,311.00 each
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare SGSMA4-400Q12 with other Safety Light Curtains products
Weight
Country Of Origin
Reduced Resolution
Effective Aperture Angle
Number of Pins (Receiver/...
Primary Housing Material
Scan Code
Supply Current
Fixed Blanking
Resolution (mm)
Selected product
SGSMA4-400Q12
Banner
SGS Safety Grid System, Active Transceiver; Beams: 4; Resolution: 400 mm; Range: 0.5-8 m; 12-pin M12...
Weight4082.328 g
Country Of OriginHU
Reduced ResolutionNo
Effective Aperture AngleType 4 Per IEC 61496-2
Number of Pins (Receiver/Emitter)12
Primary Housing MaterialAluminum
Scan CodeNone
Supply Current500 mA
Fixed BlankingNo
Resolution (mm)4 - 400
SLSP30-1200Q88
Banner
EZ-SCREEN Pair; Resolution: 30 mm; Range: 18 m (60 ft); Defined Area: 1200 mm (47.2 in); Housing Len...
Weight7892.5008 g
Country Of OriginMX
Reduced Resolution-
Effective Aperture AngleType 4 Per IEC 61496-2
Number of Pins (Receiver/Emitter)-
Primary Housing MaterialAluminum
Scan Code-
Supply Current-
Fixed BlankingYes
Resolution (mm)-
SLSRBR30-1500Q8
Banner
EZ-SCREEN Remote Blanking Receiver; Resolution: 30 mm; Range: 18 m (60 ft); Defined Area: 1500 mm (5...
Weight4989.512 g
Country Of OriginMX
Reduced Resolution-
Effective Aperture AngleType 4 Per IEC 61496-2
Number of Pins (Receiver/Emitter)-
Primary Housing MaterialAluminum
Scan Code-
Supply Current-
Fixed BlankingYes
Resolution (mm)-
About the manufacturer
Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
Recently viewed products
Relevant products
FAQ
What is the price of SGSMA4-400Q12?
Purchase the SGSMA4-400Q12 from Powermatic Associates at the price of $1,311.00. Order today.
Out if stock but available for backorder.
SGS Safety Grid System, Active Transceiver; Beams: 4; Resolution: 400 mm; Range: 0.5-8 m; 12-pin M12 QD; 5-pin M12 QD; Auto/Manual Start/Restart, EDM, Integral Muting; Mounting Hardware Ordered Separately
