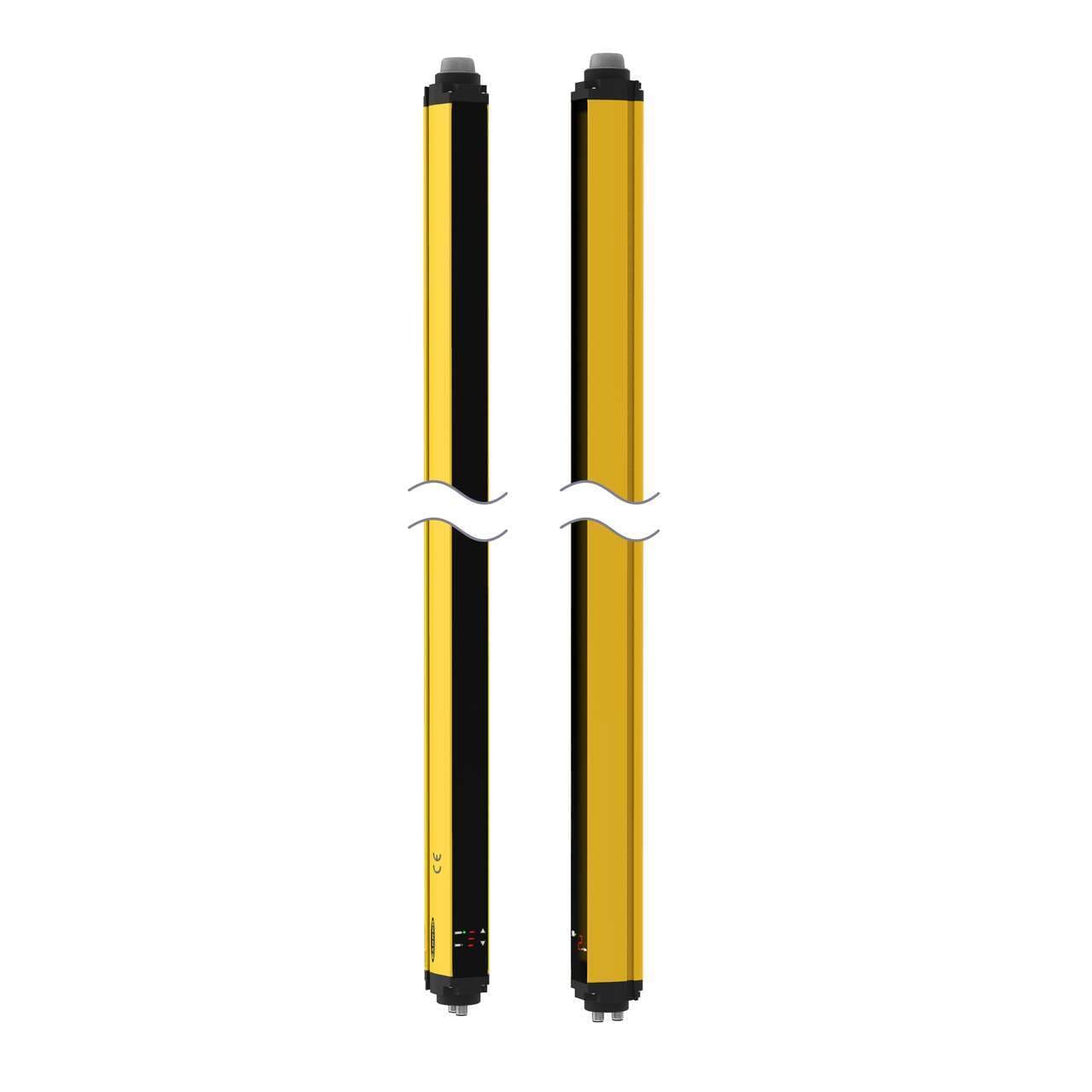

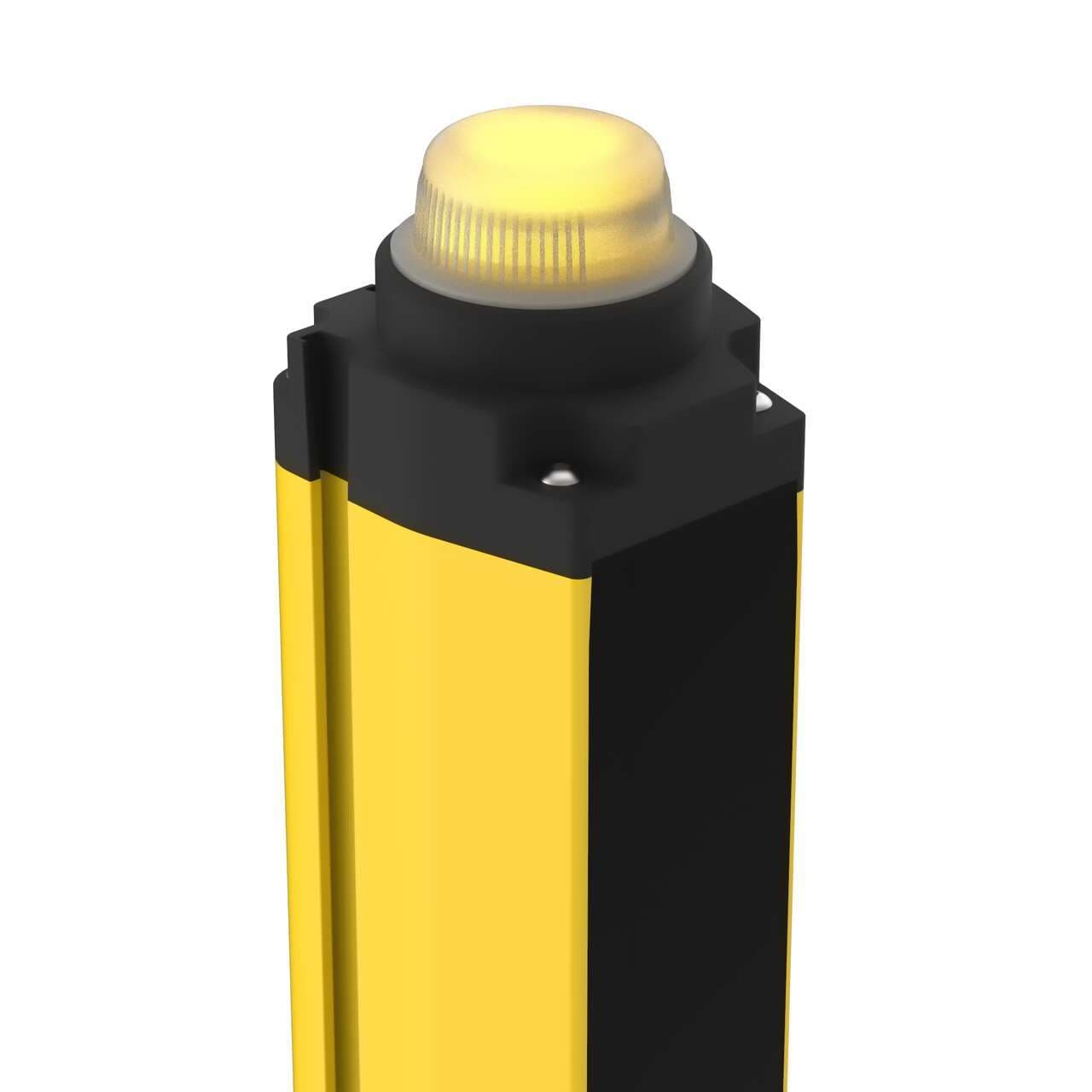

SGSMP4-400Q128 Banner Safety Light Curtains
Part#:SGSMP4-400Q128
Alt. Part#:803228
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
SGS Safety Grid System, Emitter/Receiver Pair; Beams: 4; Resolution: 400 mm; Range: 0.5 to 30 m; 12-pin M12 QD (R), 8-pin (E); 5-pin M12 QD; Scan Codes, Auto/Manual Start/Restart, EDM, Integral Muting; Mounting Hardware Ordered Separately
Product Details
- Weight 6949.02944 g
- Country Of Origin HU
- Fixed Blanking No
- Electrical Safety Class III
- Shock 10g at 16ms (6000 cycles)
- Test Input No
- Connector Type M12
- Operating Voltage 24 V dc +/- 20%
- Short Protection Yes
- Feature: End-to-End Sensing No
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Housing Finish Yellow Polyester
- Response Time 14
- Auxiliary Output No
- Feature: Integral Muting Yes
- Overall Length (mm) 1306.35
- Recovery Time N/A
- Vibration 10-55 Hz at 0.35 mm
- Operating Distance (m) 0.5 - 30
- Safety Level Type 4
- IP Rating IP65
- SIL Rating SIL3; CL3
- Supply Current 500 mA
- External Monitoring Device 1 Channel
- Number of Pins (Receiver/Emitter) 12,8
- Fault Output No
- Primary Housing Material Aluminum
- Operating Temperature 0 to +55 deg. C; RH 95%
- Scan Code Selectable
- OSSD Rating 24 V dc at 0.5 A each
- Dimensions WxD (mm) 52 x 56.9
- Resolution (mm) 4 - 400
- System Type Emitter/Receiver Pair
- Trip/Latch Output Selectable
- Defined Area Height (mm) 1200
- PL Rating Ple
- Reduced Resolution No
- Housing Material Aluminum; PMMA
- Feature: ESD Safe No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SGSMP4-400Q128 on Powermatic Associates is $2,034.00. Order now.
About the product
Banner Engineering SGSMP4-400Q128 is a safety light curtain designed for perimeter access guarding with a protective height of 1200mm. This part of the SGS series features an integrated muting function and is constructed with an aluminium housing, Polymethyl methacrylate (PMMA) lens, and thermoplastic end caps. It is pre-equipped with both 8-pin and 12-pin Euro-style M12 connectors for connectivity. The device operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. It offers a degree of protection rated at IP65. The dimensions include a net width of 52 mm, a net height of 1307 mm, and a net depth of 57 mm. It is designed with 4 beams at a 400mm beam spacing/pitch, and it features 2 digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs). The sensing distance ranges from 50cm to 30m, with an infrared light color, a response time of 14ms, and a wavelength of 950 nm. The resolution is set for 400mm, suitable for perimeter access guarding applications.
