SGSMP4-300Q128 Banner Safety Light Curtains
Part#:SGSMP4-300Q128
Alt. Part#:803227
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
SGS Safety Grid System, Emitter/Receiver Pair; Beams: 4; Resolution: 300 mm; Range: 0.5 to 30 m; 12-pin M12 QD (R), 8-pin (E); 5-pin M12 QD; Scan Codes, Auto/Manual Start/Restart, EDM, Integral Muting; Mounting Hardware Ordered Separately
Product Details
- Weight 5107.44592 g
- Country Of Origin HU
- Fixed Blanking No
- Recovery Time N/A
- Primary Housing Material Aluminum
- Operating Temperature 0 to +55 deg. C; RH 95%
- Short Protection Yes
- OSSD Rating 24 V dc at 0.5 A each
- External Monitoring Device 1 Channel
- Operating Voltage 24 V dc +/- 20%
- Shock 10g at 16ms (6000 cycles)
- Feature: End-to-End Sensing No
- Overall Length (mm) 1006.35
- System Type Emitter/Receiver Pair
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Scan Code Selectable
- Housing Finish Yellow Polyester
- Response Time 14
- Defined Area Height (mm) 900
- Number of Pins (Receiver/Emitter) 12,8
- Vibration 10-55 Hz at 0.35 mm
- Feature: ESD Safe No
- Connector Type M12
- Trip/Latch Output Selectable
- PL Rating Ple
- Test Input No
- Dimensions WxD (mm) 52 x 56.9
- IP Rating IP65
- Electrical Safety Class III
- Fault Output No
- Resolution (mm) 4 - 300
- Housing Material Aluminum; PMMA
- Reduced Resolution No
- Supply Current 500 mA
- SIL Rating SIL3; CL3
- Auxiliary Output No
- Feature: Integral Muting Yes
- Safety Level Type 4
- Operating Distance (m) 0.5 - 30
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SGSMP4-300Q128 on Powermatic Associates is $1,903.00. Order now.
About the product

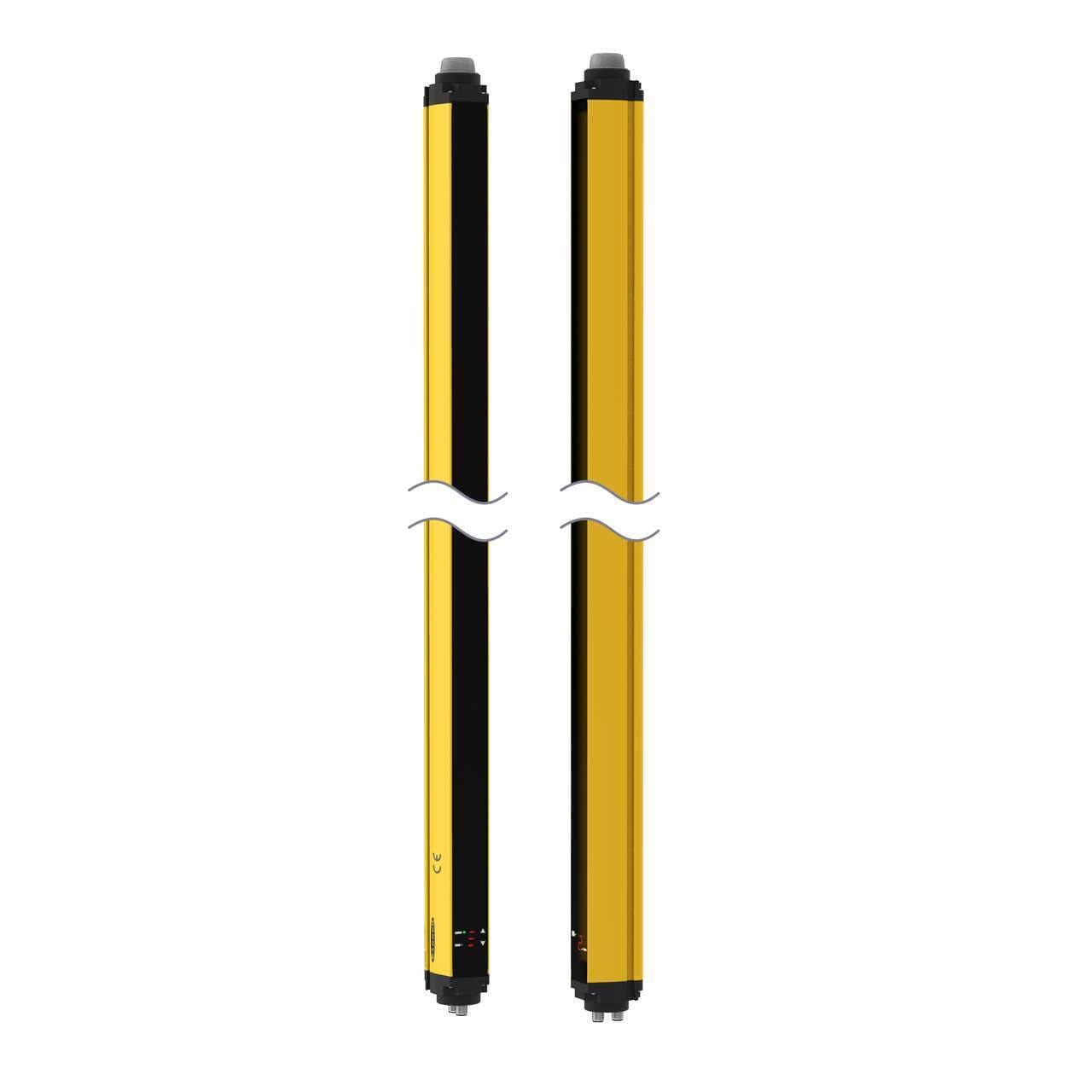

Banner Engineering SGSMP4-300Q128 is a safety light curtain from the SGS series designed with an integrated muting function. This product features a pair of emitter and receiver with an aluminium housing, Polymethyl methacrylate (PMMA) lens, and thermoplastic end caps. It is pre-equipped with an 8-pin and a 12-pin Euro-style M12 connector. The protective height is 900mm, and the housing is colored yellow. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. The degree of protection offered is IP65. The dimensions include a net width of 52 mm, a net height of 1007 mm, and a net depth of 57 mm. It features 4 beams with a 300mm beam spacing/pitch, 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), and a sensing distance ranging from 50cm to 30m. The light color is infrared (IR) with a response time of 14ms / 0.014 s and a wavelength of 950 nm. The resolution is set at 300mm for perimeter access guarding.
