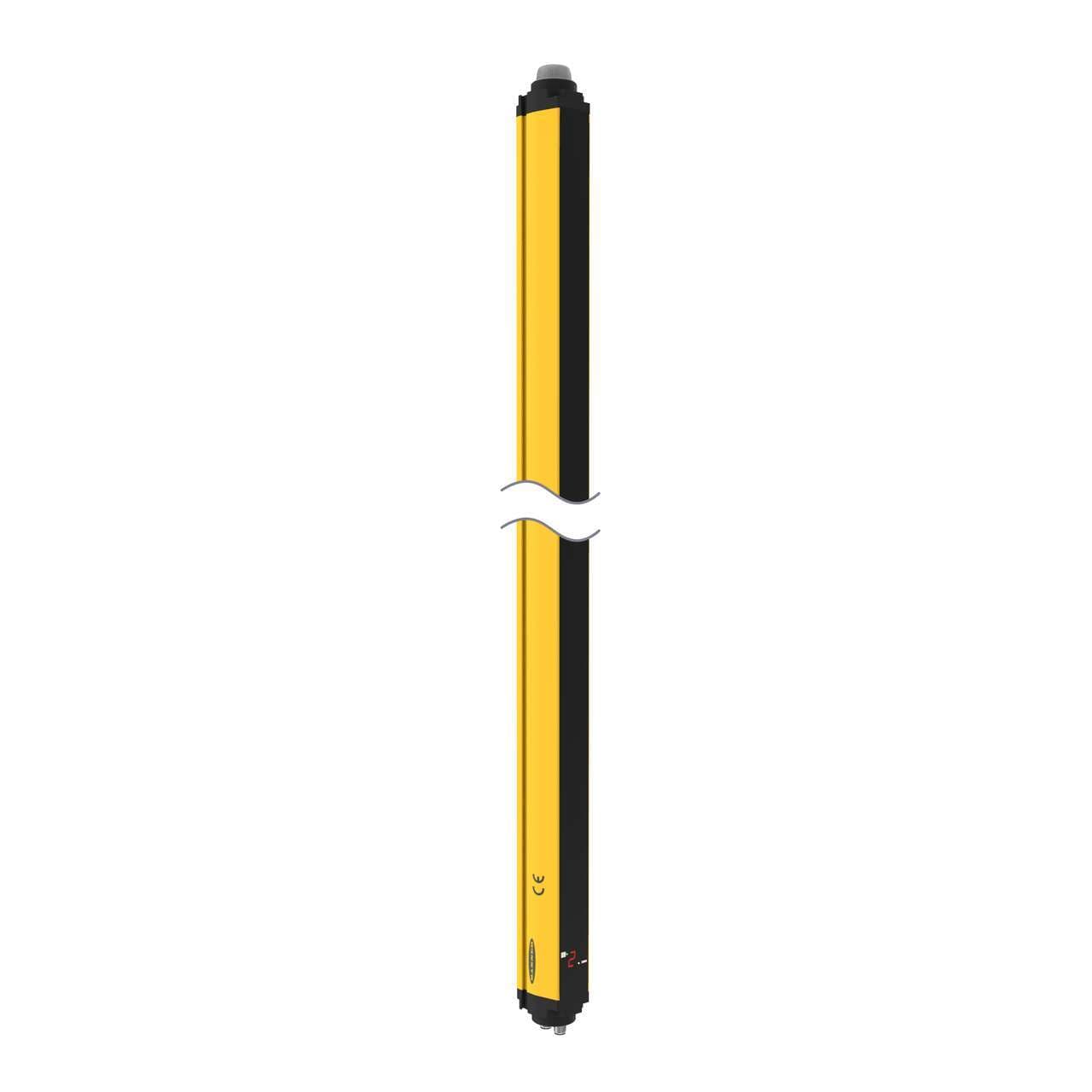

SGSMA4-300Q12 Banner Safety Light Curtains
Part#:SGSMA4-300Q12
Alt. Part#:803235
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
SGS Safety Grid System, Active Transceiver; Beams: 4; Resolution: 300 mm; Range: 0.5 to 6.5 m; 12-pin M12 QD; 5-pin M12 QD; Auto/Manual Start/Restart, EDM, Integral Muting; Mounting Hardware Ordered Separately
Product Details
- Weight 3011.85088 g
- Country Of Origin HU
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Primary Housing Material Aluminum
- Overall Length (mm) 1006.35
- Resolution (mm) 4 - 300
- Fault Output No
- Defined Area Height (mm) 900
- Operating Distance (m) 0.5 - 6.5
- Short Protection Yes
- Housing Material Aluminum; PMMA
- Dimensions WxD (mm) 52 x 56.9
- Recovery Time N/A
- Supply Current 500 mA
- Feature: ESD Safe No
- External Monitoring Device 1 Channel
- Reduced Resolution No
- System Type Transceiver - Active
- IP Rating IP65
- Shock 10g at 16ms (6000 cycles)
- Auxiliary Output No
- Safety Level Type 4
- Operating Voltage 24 V dc +/- 20%
- SIL Rating SIL3; CL3
- OSSD Rating 24 V dc at 0.5 A each
- Number of Pins (Receiver/Emitter) 12
- Operating Temperature 0 to +55 deg. C; RH 95%
- Test Input No
- Connector Type M12
- PL Rating Ple
- Response Time 12
- Feature: Integral Muting Yes
- Feature: End-to-End Sensing No
- Housing Finish Yellow Polyester
- Electrical Safety Class III
- Vibration 10-55 Hz at 0.35 mm
- Trip/Latch Output Selectable
- Scan Code None
- Fixed Blanking No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SGSMA4-300Q12 on Powermatic Associates is $1,247.00. Order now.
About the product
Banner Engineering SGSMA4-300Q12 is a safety light curtain designed for perimeter access guarding with a protective height of 900mm. It features an integrated muting function and operates as an active unit with both transmitter and receiver on one side. The housing is made of aluminum, with a polycarbonate (PMMA) lens and thermoplastic end caps. It is pre-equipped with a 5-pin and a 12-pin Euro-style M12 connector for connectivity. The unit is yellow, operates on a 24Vdc supply voltage, and can function within an ambient air temperature range of 0 to +55°C. It has an IP65 degree of protection, dimensions of 52mm in width, 1007mm in height, and 57mm in depth. The light curtain features 4 beams with a 300mm beam spacing/pitch, 2 digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), and a sensing distance ranging from 50cm to 6.5m. The response time is 12ms, and it emits infrared light with a wavelength of 950 nm.
