SGSMP3-400Q128 Banner Safety Light Curtains
Part#:SGSMP3-400Q128
Alt. Part#:803226
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
SGS Safety Grid System, Emitter/Receiver Pair; Beams: 3; Resolution: 400 mm; Range: 0.5 to 30 m; 12-pin M12 QD (R), 8-pin (E); 5-pin M12 QD; Scan Codes, Auto/Manual Start/Restart, EDM, Integral Muting; Mounting Hardware Ordered Separately
Product Details
- Weight 4762.716 g
- Country Of Origin HU
- External Monitoring Device 1 Channel
- Resolution (mm) 3 - 400
- Vibration 10-55 Hz at 0.35 mm
- Connector Type M12
- PL Rating Ple
- Shock 10g at 16ms (6000 cycles)
- Safety Level Type 4
- IP Rating IP65
- Response Time 13
- Housing Material Aluminum; PMMA
- Primary Housing Material Aluminum
- Number of Pins (Receiver/Emitter) 12,8
- Operating Distance (m) 0.5 - 30
- Auxiliary Output No
- Overall Length (mm) 906.35
- Reduced Resolution No
- Fault Output No
- Feature: Integral Muting Yes
- Fixed Blanking No
- Operating Voltage 24 V dc +/- 20%
- Dimensions WxD (mm) 52 x 56.9
- Recovery Time N/A
- Scan Code Selectable
- Supply Current 500 mA
- System Type Emitter/Receiver Pair
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Operating Temperature 0 to +55 deg. C; RH 95%
- Short Protection Yes
- Feature: End-to-End Sensing No
- Defined Area Height (mm) 800
- Housing Finish Yellow Polyester
- Test Input No
- Electrical Safety Class III
- Trip/Latch Output Selectable
- SIL Rating SIL3; CL3
- OSSD Rating 24 V dc at 0.5 A each
- Feature: ESD Safe No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SGSMP3-400Q128 on Powermatic Associates is $1,641.00. Order now.
About the product

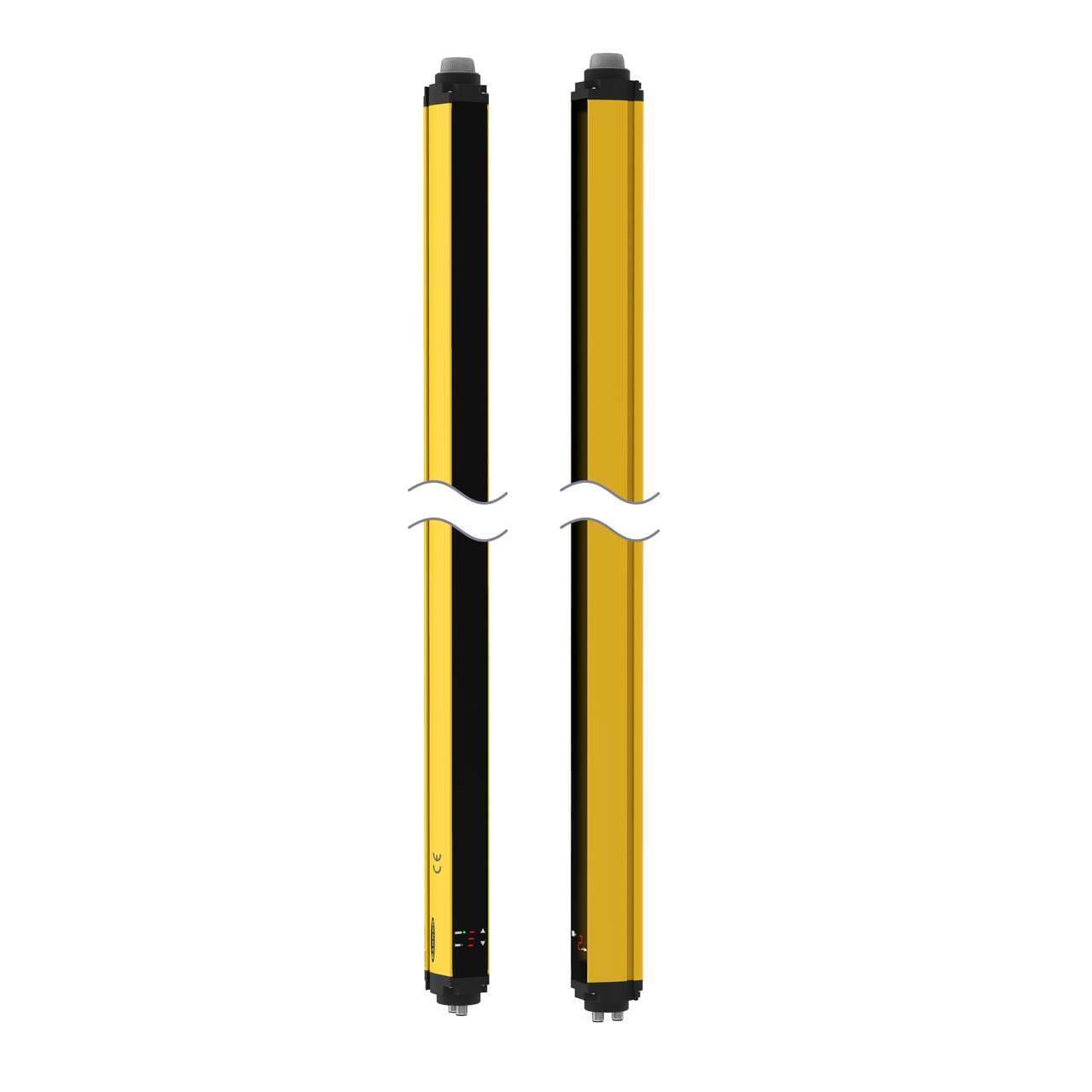

Banner Engineering SGSMP3-400Q128 is a safety light curtain designed for perimeter access guarding with a protective height of 800mm. This part of the SGS series features an integrated muting function and is constructed with an aluminium housing, Polymethyl methacrylate (PMMA) lens, and thermoplastic end caps. It is pre-equipped with both 8-pin and 12-pin Euro-style M12 connectors for connectivity. The device operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. It offers a degree of protection rated at IP65. The dimensions include a net width of 52 mm, a net height of 907 mm, and a net depth of 57 mm. The safety light curtain has 3 beams with a 400mm beam spacing/pitch, and it provides 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs). Its sensing distance ranges from 50cm to 30m, and it emits infrared (IR) light with a wavelength of 950 nm. The response time is 13ms / 0.013 s, and it features a yellow housing color.
