SLLR40-910-S Banner Safety Light Curtains
Part#:SLLR40-910-S
Alt. Part#:809028
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description

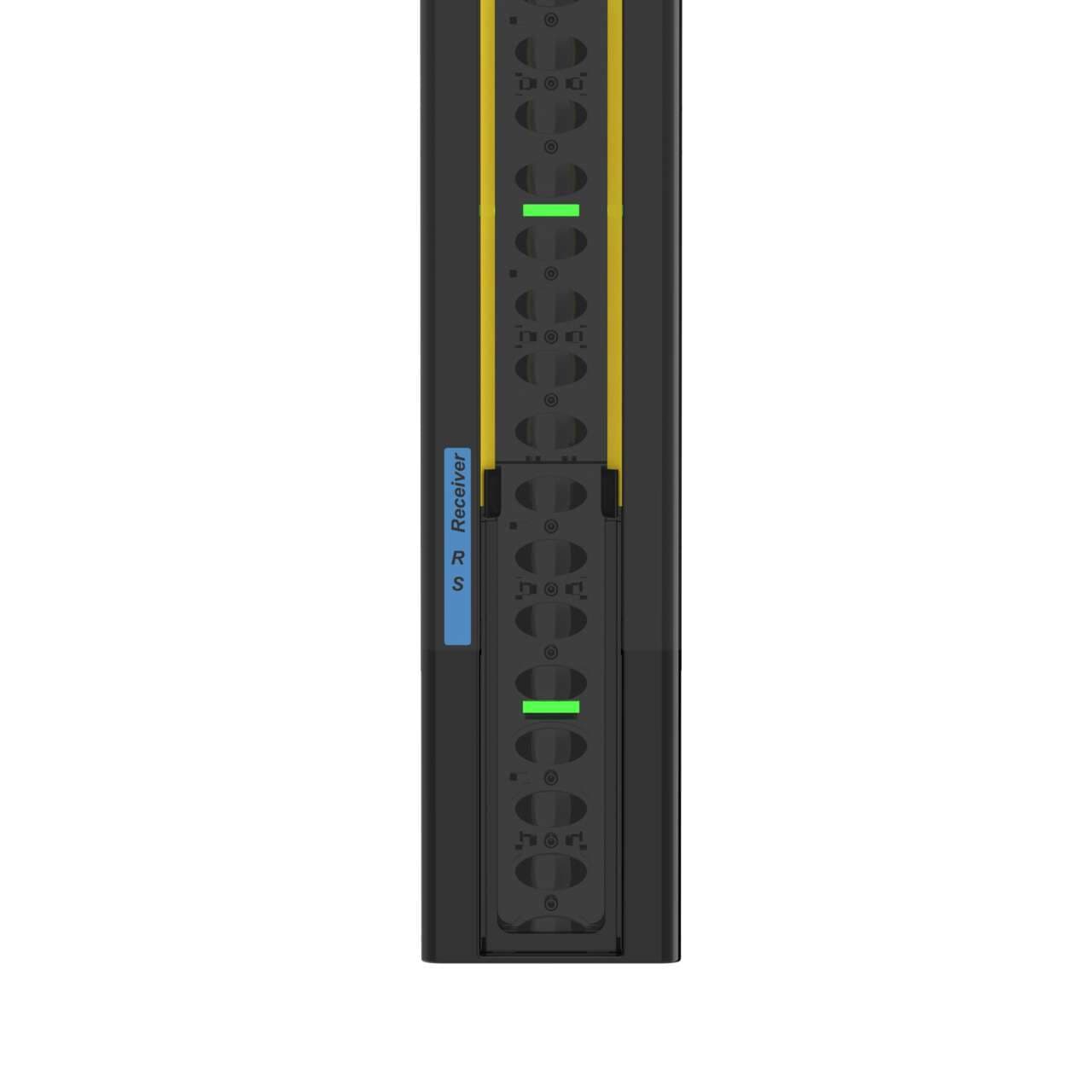

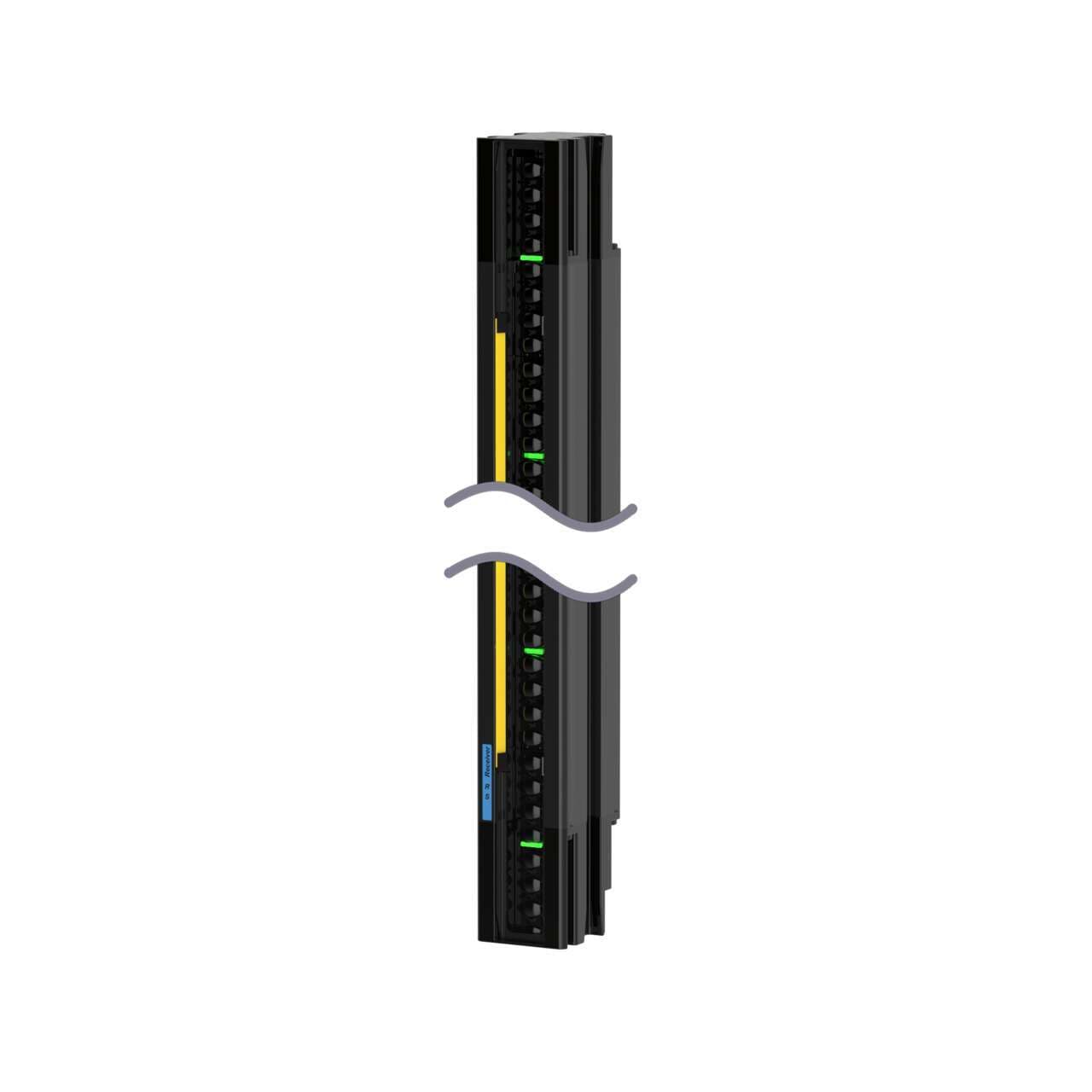

EZ-SCREEN LS, Receiver; Resolution: 40 mm; Range: 12 m (40 ft); Defined Area: 910 mm (35.8 in); Housing: Black; Connection: Removable Disconnect (RD); Mounting Hardware and Cable/M12 Pigtail Ordered Separately
Product Details
- Weight 2195.38528 g
- Country Of Origin MX
- Recovery Time 42 / 142
- SIL Rating SIL3; CL3
- Scan Code Selectable
- System Type Receiver
- Short Protection Yes
- Shock 10g at 16ms (6000 cycles)
- Fixed Blanking No
- Primary Housing Material Aluminum
- Housing Finish Yellow Polyester
- IP Rating IP65; IP67
- Operating Voltage 24 V dc +/- 15%
- Electrical Safety Class III
- Reduced Resolution No
- Resolution (mm) 40
- Feature: Integral Muting No
- Feature: End-to-End Sensing Yes
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Overall Length (mm) 914
- External Monitoring Device 1 Channel
- Safety Level Type 4
- Connector Type Removable Disconnect
- Defined Area Height (mm) 910
- Operating Distance (m) 0.1 - 12
- Operating Temperature -20 to +55 deg. C; RH 95%
- PL Rating Ple
- Dimensions WxD (mm) 36 x 45
- Auxiliary Output No
- Housing Material Aluminum; Zinc; Acrylic
- Vibration 10-55 Hz at 0.35 mm
- OSSD Rating 24 V dc at 0.5 A each
- Supply Current 89 mA Typical
- Fault Output Yes
- Feature: ESD Safe No
- Test Input No
- Trip/Latch Output Trip
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLLR40-910-S on Powermatic Associates is $1,207.00. Order now.
About the product
Banner Engineering SLLR40-910-S is a safety light curtain from the LS-S series type 4 safety light curtains designed for arm detection with a 40mm resolution. This receiver unit features an aluminium housing with an acrylic lens and zinc end caps, ensuring durability. It comes with an Integral Removable Disconnect (RD) connection type and is housed in a yellow aluminum casing. The protective height of this unit is 910mm, and it operates on a 24Vdc supply voltage. It is designed to function within an ambient air temperature range of -20 to +55°C and offers a degree of protection rated at IP65 and IP67, making it suitable for various industrial environments. The net dimensions are 36mm in width, 914mm in height, and 45mm in depth. The SLLR40-910-S features a 40mm beam spacing/pitch and includes two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and one digital output (24Vdc; 100mA; sourcing/PNP transistor) for CSSI status output. It has a sensing distance range from 10cm to 12m and uses infrared light with a wavelength of 850 nm. The response time is 10.3ms.
SLLR40-910-S Related Documents
