SLLR40-980-S Banner Safety Light Curtains

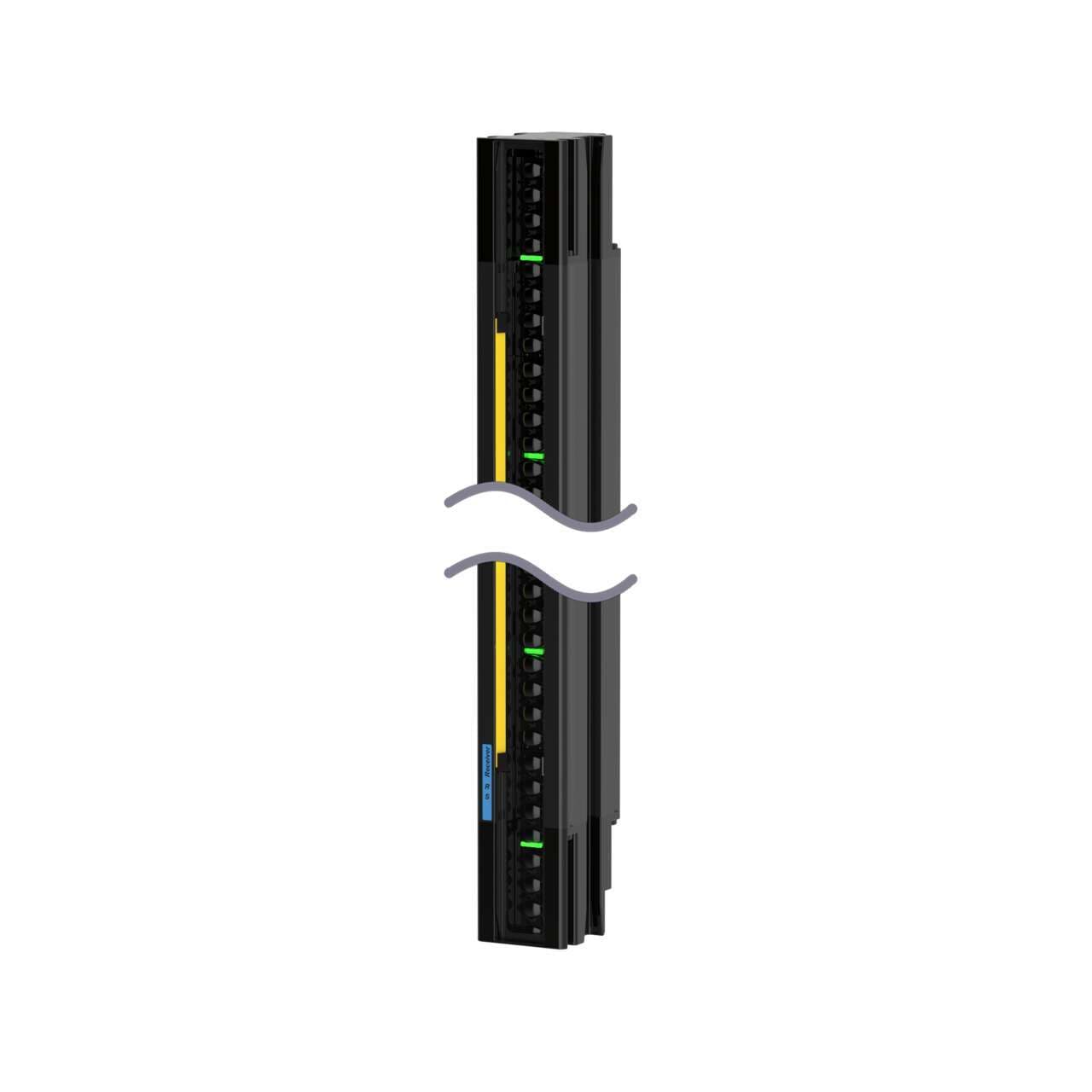

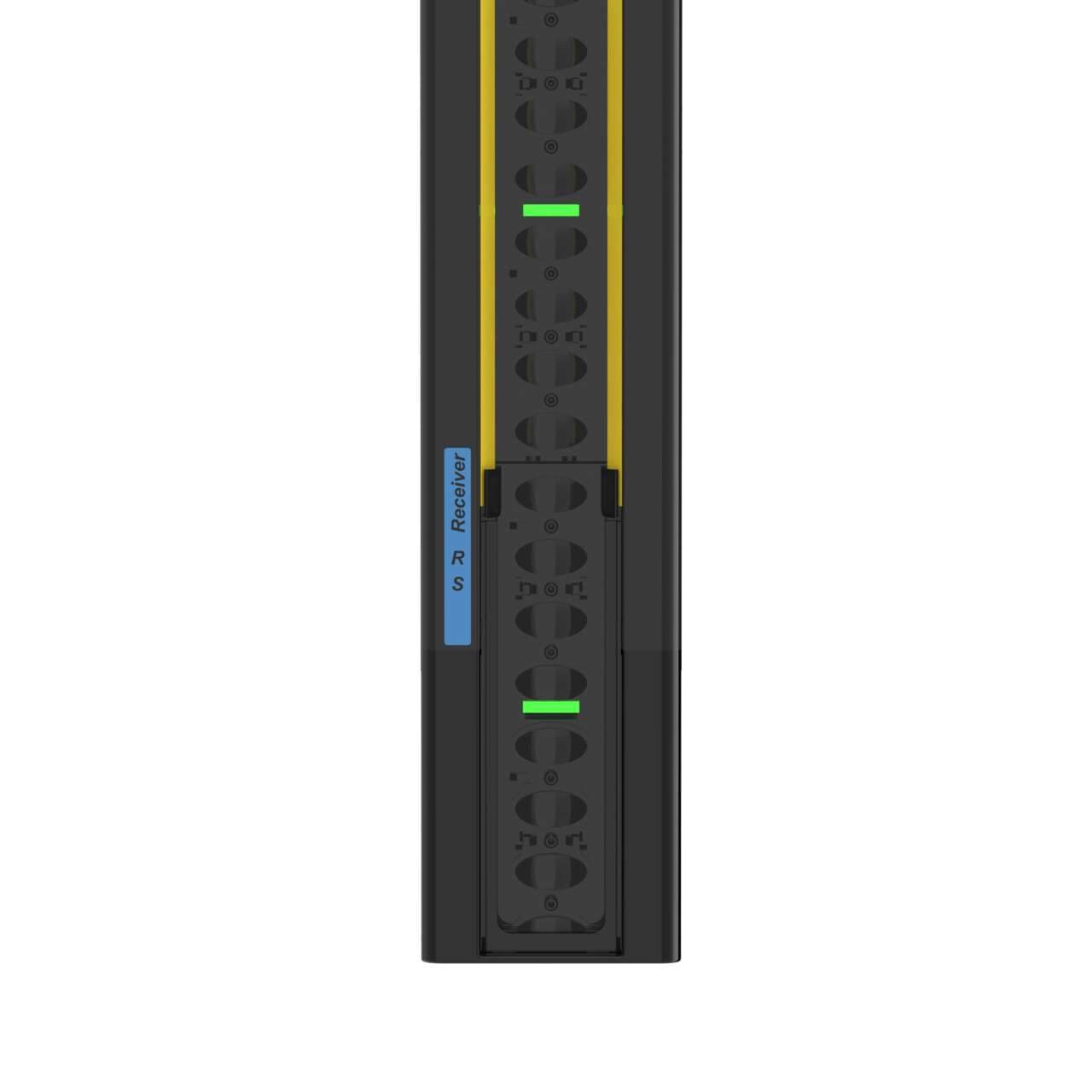

Banner Engineering SLLR40-980-S is a safety light curtain from the LS-S series type 4 safety light curtains designed for arm detection with a resolution of 40mm. This part, serving as the receiver alone, is encased in an aluminium housing with an acrylic lens and zinc end caps, ensuring durability. It features an integral removable disconnect (RD) connection type and operates on a 24Vdc supply voltage. The SLLR40-980-S has a protective height of 980mm and is characterized by its yellow housing. It is designed to function within an ambient air temperature range of -20 to +55°C and offers a degree of protection rated at IP65 and IP67, making it suitable for various industrial environments. The unit's dimensions are 36mm in width, 983mm in height, and 45mm in depth. It provides two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and one digital output (24Vdc; 100mA; sourcing/PNP transistor) for CSSI status output. The sensing distance ranges from 10cm to 12m, with a response time of 10.8ms. The light curtain emits infrared (IR) light with a wavelength of 850 nm, facilitating precise detection within its operational range.
