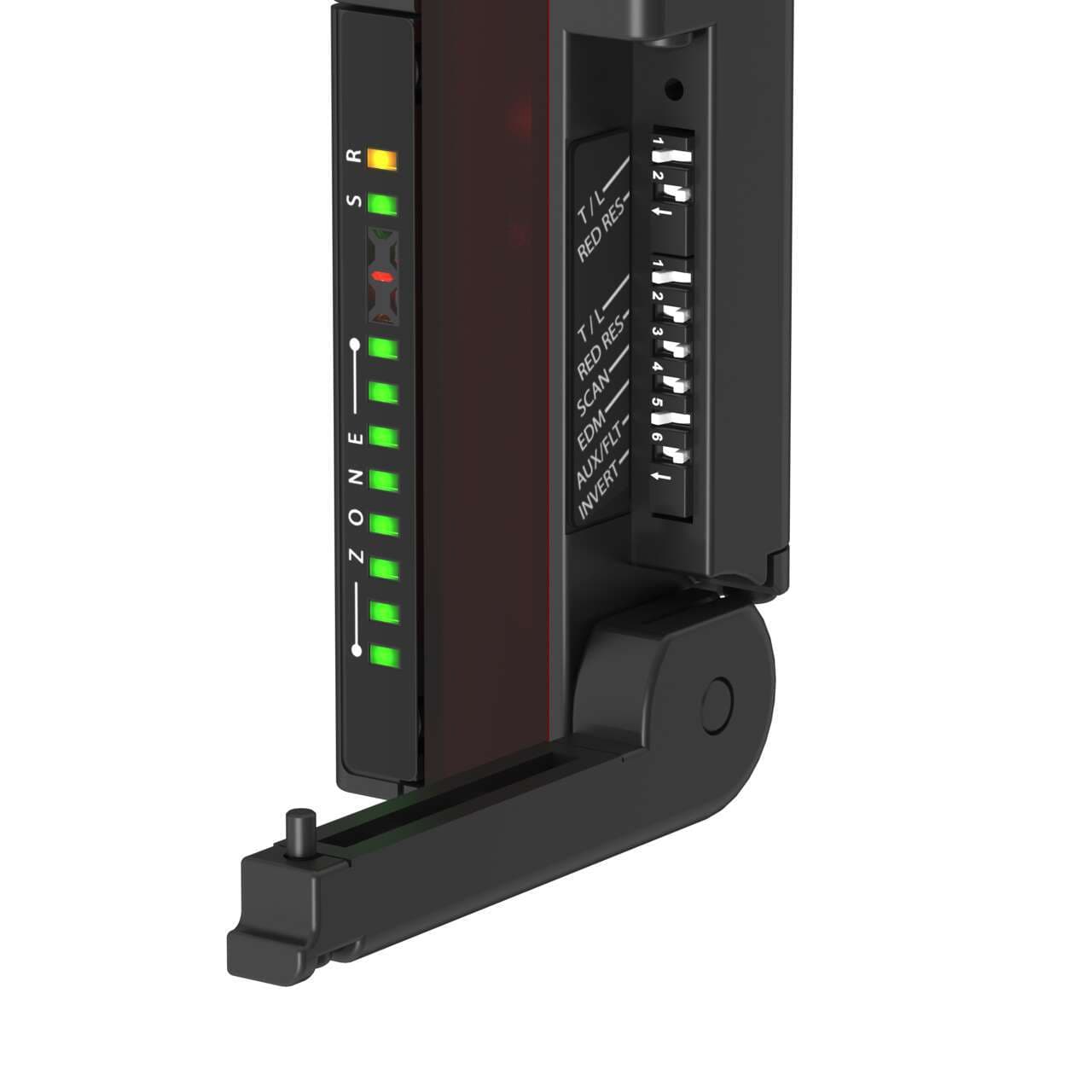

SLPR25-550P8 Banner Safety Light Curtains
Part#:SLPR25-550P8
Alt. Part#:83578
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
SLPR25-550P8 EZ-SCREEN Low Profile Receiver; Resolution: 25 mm; Response (Tr): 11 ms; Beams: 28; Range: 0.1-7 m (4 in - 23 ft); Height: 550 mm (21.7 in); 300 mm (1 ft) 8-pin M12 Pigtail QD
Product Details
- Weight 2357.771216 g
- Country Of Origin US
- External Monitoring Device 1 or 2 Channel
- Number of Pins (Receiver/Emitter) 8
- Shock 10g at 16ms (6000 cycles)
- Supply Current 150 mA max.
- SIL Rating SIL3; CL3
- Trip/Latch Output Selectable
- Defined Area Height (mm) 550
- IP Rating IP65
- Scan Code Selectable
- OSSD Rating 24 V dc at 0.5 A each
- Housing Finish Yellow Polyester
- Response Time 11
- Housing Material Aluminum; Zinc; Acrylic
- Feature: Integral Muting No
- Fixed Blanking Yes
- Reduced Resolution Yes
- Short Protection Yes
- Feature: End-to-End Sensing Yes
- low-profile Yes
- Operating Temperature 0 to +55 deg. C; RH 95%
- Electrical Safety Class III
- Overall Length (mm) 550
- Effective Aperture Angle Type 4 Per IEC 61496-2
- PL Rating Ple
- Resolution (mm) 25
- Primary Housing Material Aluminum
- Operating Voltage 24 V dc +/- 15%
- Auxiliary Output Yes
- Feature: ESD Safe No
- Safety Level Type 4
- Connector Type M12 Pigtail (Yellow)
- Recovery Time 33-220 / 109-800
- Fault Output Yes
- Test Input No
- Dimensions WxD (mm) 28 x 26
- Operating Distance (m) 0.1 - 7
- Vibration 10-55 Hz at 0.35 mm
- System Type Receiver
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLPR25-550P8 on Powermatic Associates is $1,192.00. Order now.
About the product
Banner Engineering SLPR25-550P8 is a safety light curtain from the LP Low-Profile series designed for hand detection with a resolution of 25mm. This part, functioning as a receiver alone, is encased in an aluminium housing with an acrylic lens and zinc end caps, featuring a yellow housing color. It is pre-wired with a 300mm pigtail that terminates with an 8-pin Euro-style M12 connector. The SLPR25-550P8 offers a protective height of 550mm and operates on a 24Vdc supply voltage. It is designed to work within an ambient air temperature range of 0 to +55°C and has an IP65 degree of protection against dust and water ingress. The dimensions include a net width of 28mm, a net height of 549mm, and a net depth of 26mm. It features 25mm beam spacing/pitch and a sensing distance ranging from 10cm to 7m. The device is equipped with two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), one digital output (24Vdc; 250mA; PNP transistor) for fault indication, one digital input (10Vdc-30Vdc; 30mA) for EDM, and one digital input (10Vdc-30Vdc) for reset functionality. The response time is 11ms / 0.011 s.
