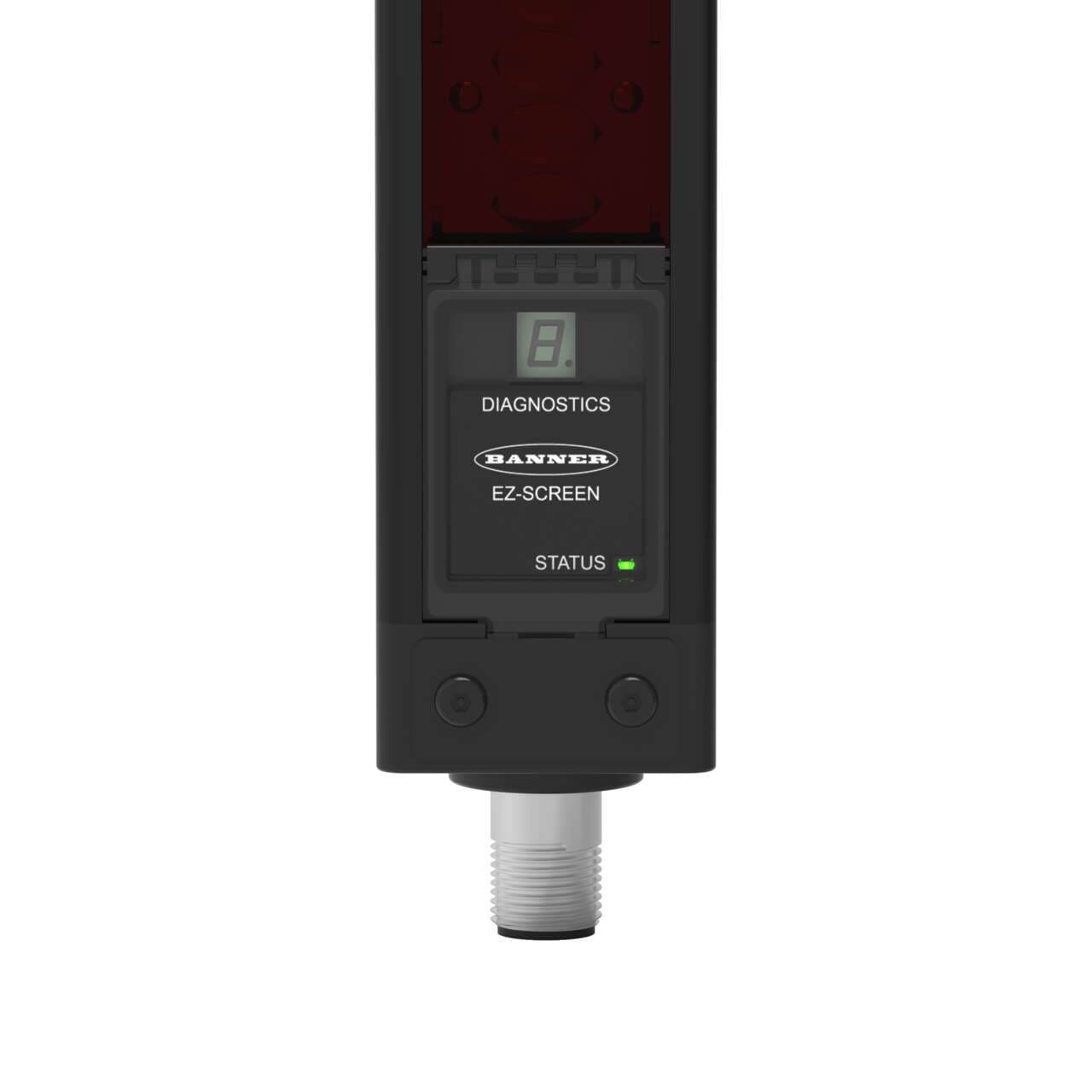

SLSP30-1950Q88 Banner Safety Light Curtains

SLSP30-1950Q88 on Powermatic Associates
Banner
  • SLSP30-1950Q88
  • SLSP30-1950Q88

Part#:SLSP30-1950Q88

Alt. Part#:82074

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

EZ-SCREEN Pair; Resolution: 30 mm; Range: 18 m (60 ft); Defined Area: 1950 mm (76.8 in); Housing Length: 2018 mm (79.4 in); Connection: 8-pin M12 Connectors; Emitter: No test Input

Product Details

  • Weight
    10795.4896 g
  • Country Of Origin
    MX
  • Feature: Integral Muting
    No
  • Feature: ESD Safe
    No
  • Feature: End-to-End Sensing
    No
  • Trip/Latch Output
    Selectable
  • Test Input
    No
  • Housing Material
    Aluminum; Zinc; Acrylic
  • Fault Output
    No
  • Supply Current
    375 mA max.
  • OSSD Rating
    24 V dc at 0.5 A each
  • Auxiliary Output
    Yes
  • Vibration
    10-55 Hz at 0.35 mm
  • System Type
    Emitter/Receiver Pair
  • Short Protection
    Yes
  • Scan Code
    Selectable
  • Electrical Safety Class
    III
  • Response Time
    34
  • Shock
    10g at 16ms (6000 cycles)
  • Reduced Resolution
    Yes
  • Recovery Time
    25-152 / 81-495
  • PL Rating
    Ple
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • Resolution (mm)
    30
  • SIL Rating
    SIL3; CL3
  • Operating Voltage
    24 V dc +/- 15%
  • Number of Pins (Receiver/Emitter)
    8
  • Operating Distance (m)
    0.1 - 18
  • Fixed Blanking
    Yes
  • Housing Finish
    Yellow Polyester
  • IP Rating
    IP65
  • External Monitoring Device
    1 or 2 Channel
  • Dimensions WxD (mm)
    36 x 45.2
  • Overall Length (mm)
    2018
  • Safety Level
    Type 4
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2
  • Primary Housing Material
    Aluminum
  • Connector Type
    M12
  • Defined Area Height (mm)
    1950
  • low-profile
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLSP30-1950Q88 on Powermatic Associates is $6,025.00. Order now.

About the product

Banner Engineering SLSP30-1950Q88 is a safety light curtain from the 14/30 series designed for hand detection with a resolution of 30mm. This unit comprises an emitter and receiver pair housed in aluminum with acrylic lenses and die-cast zinc end caps. It features a protective height of 1950mm and is pre-equipped with an 8-pin Euro-style M12 connector for connectivity. The yellow housing measures 36mm in width, 2018mm in height, and 46mm in depth. It operates on a 24Vdc supply voltage within an ambient air temperature range of 0 to +55°C. The SLSP30-1950Q88 offers a degree of protection rated at IP65 and includes 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and 1 x digital output (24Vdc; sourcing/PNP transistor; 75mA) for auxiliary output. Additionally, it features 1 x digital input (10Vdc-30Vdc) for EDM input and 1 x digital input (10Vdc-30Vdc) for RESET input. The sensing distance spans from 10cm to 18m, with a response time of 34ms. The light operates in the infrared spectrum with a wavelength of 850 nm, and the device has a 30mm beam spacing/pitch.

SLSP30-1950Q88 Related Documents
