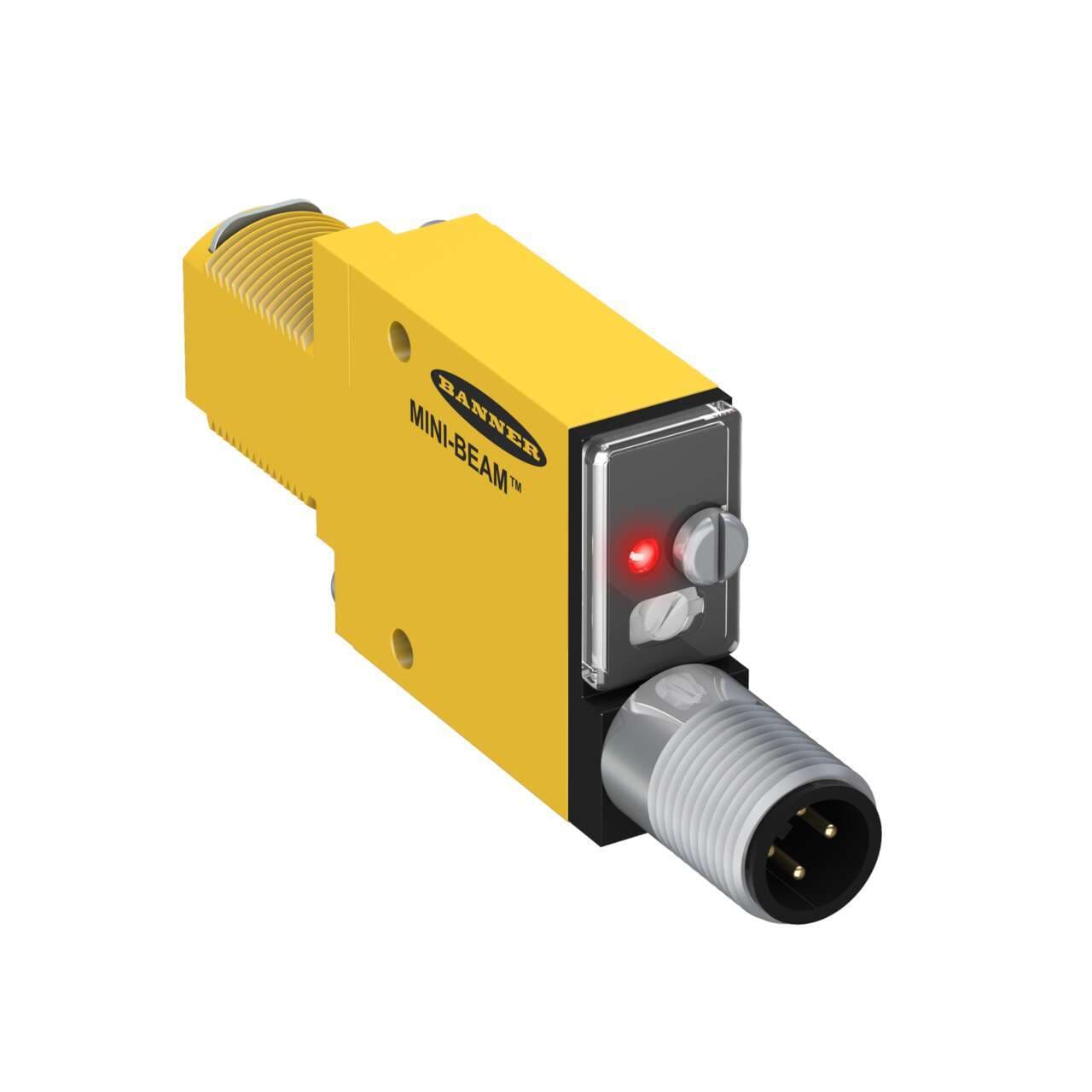

SM31RFQD Banner Proximity Sensors
Part#:SM31RFQD
Alt. Part#:27720
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
SM31RFQD MINIBEAM SCANNER SM31R W/FIBER BLOCK
Product Details
- Weight 74.84268 g
- Country Of Origin US
- Power DC
- Operation Light/Dark Operate
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12
- IO Link No
- Max Sensing Distance (mm) 3000
- Special Feature: Water Detection No
- Output response time (ms) 1
- Feature: Timing (Hold/Delay) No
- Sensing Mode (Detailed) Receiver
- Quick Disconnect Type M12 (Euro)
- Barrel Diameter (mm) 18
- Primary Housing Material Thermoplastic
- Max Op. Temp. (°C) 70
- Adjustments Potentiometer
- DeviceNet No
- Housing Style Rectangular w/M18 Mount
- Min Op. Temp. (°C) -20
- Lens Material Acrylic
- Sensing Beam Infrared LED
- Connection Integral QD
- Repeatability (µs) 140
- Opposed Mode Emitter/Receiver Receiver
- Feature: Encapsulated No
- Outputs Bipolar (NPN & PNP)
- Special Feature: Remote Teach No
- Number of Pins 4
- Feature: Hazardous Area No
- Input/Output Discrete
- Special Feature: Intrinsically Safe No
- IP Rating IP67
- Feature: Chemical Resistant No
- Indicator LEDs
- Sensing Mode (General) Opposed
- Power Supply/Supply Voltage 10-30 V dc
- Delay at Power-up (ms) 100
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Audible No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM31RFQD on Powermatic Associates is $125.00. Order now.
About the product
Banner Engineering SM31RFQD is a photo-electric sensor from the SM312 series, designed with a through-beam system and opposed mode fiber block potentiometer adjustment for glass fiber. This sensor, functioning as a receiver alone, is housed in thermoplastic with an acrylic lens. It comes pre-equipped with a 4-pin Euro-style M12 connector for connectivity. The SM31RFQD operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc, and can be mounted using an M18 threaded mount. It is designed to operate within an ambient air temperature range of -20 to +70°C. This sensor offers a high degree of protection, rated at IP67, NEMA 1, 2, 3, 3S, 4, 4X, 6, and 12, making it suitable for various environmental conditions. Its rectangular shape incorporates 1 x digital output (PNP/NPN transistor), and it is capable of sensing distances up to 3m with an infrared light source. The SM31RFQD features a fast response time of 1ms / 0.001 s and supports both Light-ON and Dark-ON operating modes.
