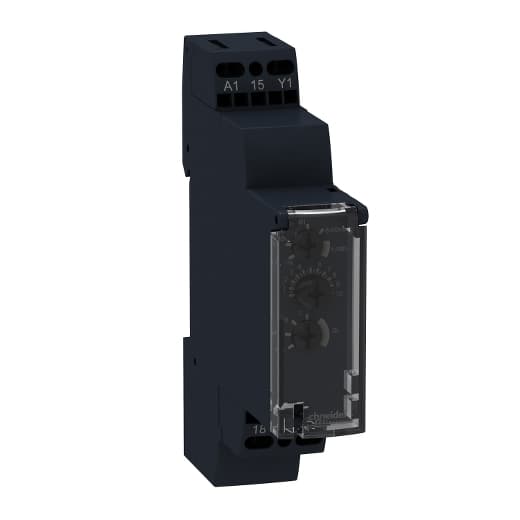

RE17RMEMU Schneider Electric Industrial Automation Components

Product Details

• Compatibility Code
  RE17
• Height
  3.54 in (90 mm)
• Reset Time
  120 ms on de-energisation typical
• Operating Frequency
  10 Hz
• Dielectric Strength
  2.5 kV 1 mA/1 minute 50 Hz IEC 61812-1
• Contacts Type And Composition
  1 C/O
• Supply Frequency
  50...60 Hz +/- 5 %
• Insulation Resistance
  100 MOhm 500 V DC IEC 60664-1
• Breaking Capacity
  2000 VA
• Power On Delay
  100 ms
• Setting Accuracy Of Time Delay
  +/- 10 % of full scale 25 °C IEC 61812-1
• Maximum Switching Current
  8 A AC/DC
• Nominal Output Current
  8 A
• Tightening Torque
  5.31…8.85 lbf.in (0.6…1 N.m) IEC 60947-1
• Product Or Component Type
  Multifunction relay
• Creepage Distance
  4 kV/3 IEC 60664-1
• Functionality
  Multifunction
• Discrete Output Type
  Relay
• Voltage Range
  0.85...1.1 Us
• Housing Material
  Self-extinguishing
Release Of Input Voltage
10 V
Maximum Power Consumption In W
0.6 W 24 V DC
Marking
CE
Contacts Material
Cadmium free
Repeat Accuracy
+/- 0.5 % IEC 61812-1
Power Consumption In VA
0…32 VA 240 V AC
On-Load Factor
100 %
Device Short Name
RE17R
Temperature Drift
+/- 0.05 %/°C
Electrical Durability
100000 cycles resistive 8 A 250 V AC
Width
0.69 in (17.5 mm)
Control Type
Selector switch front panel
Range Of Product
Harmony Timer Relays
Depth
2.83 in (72 mm)
Voltage Drift
+/- 0.2 %/V
Maximum Switching Voltage
250 V AC
Mechanical Durability
10000000 cycles
Net Weight
0.15 lb(US) (0.07 kg)
Mounting Position
Any position in relation to normal vertical mounting plane
Time Delay Type
A, At, B, C, D, Di, H, Ht
Minimum Switching Current
10 mA 5 V DC
Mounting Support
35 mm DIN rail conforming to EN/IEC 60715
[Uimp] Rated Impulse Withstand Voltage
5 kV 1.2/50 µs
Control Signal Pulse Width
100 ms with load in parallel typical 30 ms typical
Safety Reliability Data
MTTFd = 296.8 years B10d = 270000
[Us] Rated Supply Voltage
24...240 V AC 50/60 Hz 24 V DC
Local Signalling
LED indicator on steady: relay energised, no timing in progress LED indicator 80 % ON and 20 % OFF flashing: timing in progress LED indicator 5 % ON and 95 % OFF pulsing: relay de-energised, no timing in progress (except function Di-D, Li-L)
Connections - Terminals
Screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end Screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end
Time Delay Range
6...60 min 1...10 min 1...10 s 1...10 h 6...60 s 0.1...1 s
