K50ABT2GYHQ Banner Pick-to-Light Sensors
Part#:K50ABT2GYHQ
Alt. Part#:801652
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K50 Series EZ-LIGHT: 2-Color Touch Sensor Gen 2; Momentary Output; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Output: Bipolar (NO); Colors: Green - Not Activated, Yellow - Activated; 5-pin M12 Integral QD
Product Details
- Weight 136.0776 g
- Country Of Origin US
- Mounting Thread M30 x 1.5
- Lumens Color 1 29.0
- Max Current Color (mA) 75
- Min Op. Temperature (°C) -40
- Housing Style Base Mount - Dome Window
- Product Size (mm) 50
- Number of Input Pins/Conductors 5
- Power DC
- Color Option 1 Green
- Color Option 2 Yellow
- Output Type Bipolar (NPN & PNP)
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- IO Link No
- Primary Housing Material Polycarbonate
- Number of Colors / Segments 2
- Lumens Color 2 24.0
- Input Type PNP
- Color Technology Standard LED
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Operation Normally Open
- Power Source DC
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Actuation Yes
- Quick Disconnect Type M12 (Euro)
- Supply Voltage 12-30 V dc
- Max Op. Temperature (°C) 50
- Activation Function Capacitive Touch
- Animation Option 1 Solid On
- Max Output Response Time (ms) 50
- Pick-to-Light Function H
- Storage Temp (°C) -40 to 70
- Modbus RTU No
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 66.0
- Feature: Washdown Rated Yes
- Pro-Editor Compatible (Discrete) No
- Environmental Rating IP67; IP69
- Feature: Hazardous Area No
- Feature: Chemical Resistant No
- Primary Window Material Polycarbonate Diffused
- Multi-Color Device Single Color On
- Color 2 - Wavelength/Color Temp/Coordinates 591 nm
- I/O Block Compatible Yes
- Button Operation Momentary
- Cable Length (m) 2
- Connection Integral QD
- Primary Housing Color Black
- Feature: Audible No
- Wireless No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50ABT2GYHQ on Powermatic Associates is $159.00. Order now.
About the product

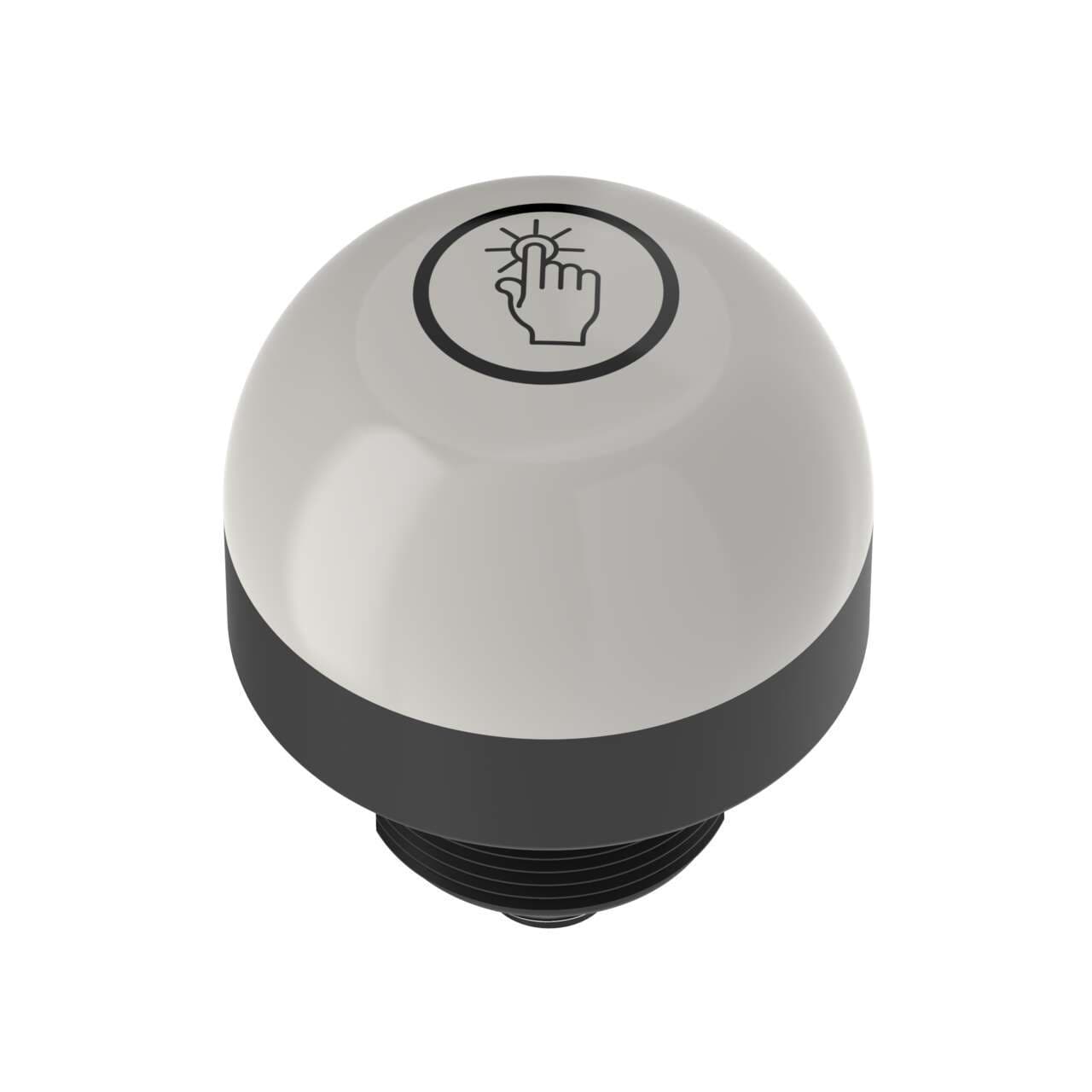

Banner Engineering K50ABT2GYHQ is an illuminated capacitive touch-sensitive button from the EZ-LIGHT series. This Gen.2 device features 2-color LED illumination, displaying green when not activated and yellow when activated, encased in a black housing with a dome-shaped window made from diffused polycarbonate (PC), and a base also constructed from polycarbonate (PC). It is designed for easy connection, pre-equipped with a 5-pin M12 Euro-style quick disconnect (QD) connector. The K50ABT2GYHQ operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc nominal, and can be mounted via surface or base pole with an M30 thread. The device has a 50mm / 2" dome diameter and offers a high degree of protection with ratings of IP67 and IP69K. It operates in a momentary normally open (NO) touch output mode, has a current consumption of 75mA, and includes 2 x digital inputs for color control and 1 x digital output for touch, all supporting both PNP and NPN connections.
