K50ABTRGHQ Banner Pick-to-Light Sensors
Part#:K50ABTRGHQ
Alt. Part#:30223
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K50 Series EZ-LIGHT: 2-Color Touch Sensor; Momentary Output; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Output: Bipolar (NO); Colors: Red - Not Activated, Green - Activated; 5-pin M12 Integral QD
Product Details
- Weight 136.0776 g
- Country Of Origin MX
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Quick Disconnect Type M12 (Euro)
- Lumens Color 2 29.0
- Max Output Response Time (ms) 50
- Activation Function Capacitive Touch
- Color 1 - Wavelength/Color Temp/Coordinates 625 nm
- Supply Voltage 12-30 V dc
- Min Op. Temperature (°C) -40
- Housing Style Base Mount - Dome Window
- Connection Integral QD
- Acknowledge (Sense) Light Green
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 66.0
- Feature: Washdown Rated Yes
- Number of Colors / Segments 2
- Cable Length (m) 0.15
- Number of Input Pins/Conductors 5
- Feature: Hazardous Area No
- Power DC
- Color Technology Standard LED
- Color Option 2 Green
- I/O Block Compatible Yes
- Primary Window Material Polycarbonate Diffused
- Job Light Red
- Primary Housing Material Polycarbonate
- Lumens Color 1 13.0
- Operation Normally Open
- Storage Temp (°C) -40 to 70
- Pro-Editor Compatible (Discrete) No
- Mounting Thread M30 x 1.5
- Product Size (mm) 50
- Color 2 - Wavelength/Color Temp/Coordinates 525 nm
- Input Type PNP
- Button Operation Momentary
- Wireless No
- Power Source DC
- Color Option 1 Red
- Pick-to-Light Function H
- Environmental Rating IP67; IP69
- Feature: Audible No
- Max Op. Temperature (°C) 50
- Feature: Chemical Resistant No
- Actuation Yes
- Animation Option 1 Solid On
- Max Current Color (mA) 75
- Output Type Bipolar (NPN & PNP)
- Primary Housing Color Black
- Feature: Quick Disconnect Yes
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- IO Link No
- Modbus RTU No
- Multi-Color Device Single Color On
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50ABTRGHQ on Powermatic Associates is $159.00. Order now.
About the product

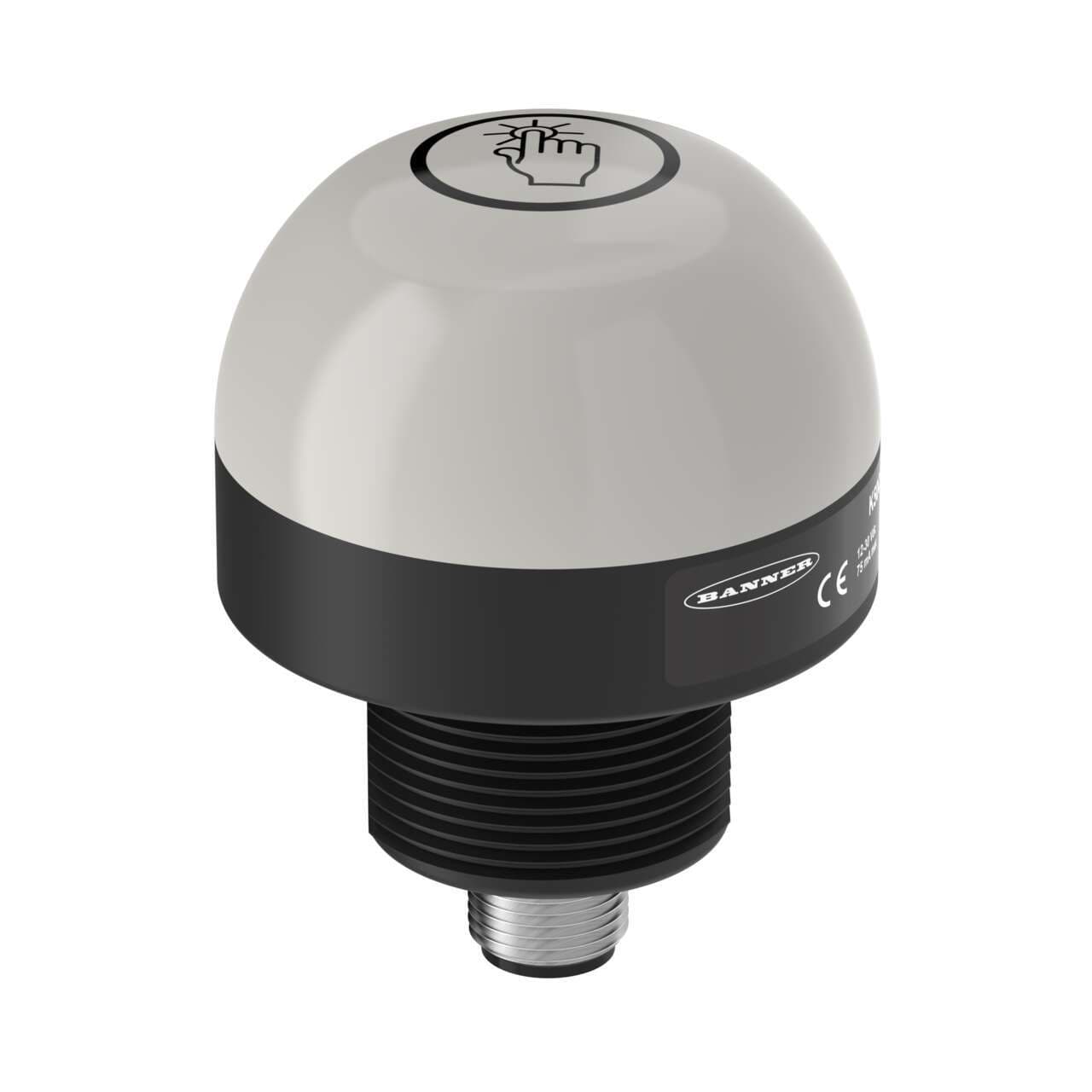

Banner Engineering K50ABTRGHQ is an illuminated capacitive touch-sensitive button from the EZ-LIGHT series. This part features 2-color LED illumination, displaying red when not activated and green when activated, within a black housing. The dome window and base are made from polycarbonate (PC), ensuring durability. It comes pre-equipped with a 5-pin M12 Euro-style quick disconnect (QD) connector for easy installation. The K50ABTRGHQ operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc nominal, and can be mounted on the surface or base pole with an M30 thread. The dome has a diameter of 50mm (2 inches). It is designed to operate within an ambient air temperature range of -40°C to +50°C and offers a high degree of protection with ratings of IP67 and IP69K. The operating mode is momentary NO (Normally Open) touch output. Additionally, it features 2 x digital inputs (12-30Vdc; PNP/NPN) for color control and 1 x digital output (12-30Vdc; PNP/NPN) for touch functionality.
