K50ANT2GXDQP Banner Pick-to-Light Sensors
Part#:K50ANT2GXDQP
Alt. Part#:96705
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K50 Series EZ-LIGHT: 1-Color Touch Sensor Gen 2; Job Light Only; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Input: NPN (NO); Colors: Green; 150 mm (6 in) M12 PVC Pigtail QD
Product Details
- Weight 158.7572 g
- Country Of Origin US
- Cable Length (m) 0.15
- Color Option 1 Green
- Number of Input Pins/Conductors 5
- Environmental Rating IP67; IP69
- Feature: Hazardous Area No
- Number of Colors / Segments 1
- Mounting Thread M30 x 1.5
- Operation Normally Open
- Primary Housing Color Black
- Multi-Color Device Single Color On
- Primary Housing Material Polycarbonate
- Lumens Color 1 29.0
- Storage Temp (°C) -40 to 70
- Wireless No
- I/O Block Compatible Yes
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Input Type NPN
- Min Op. Temperature (°C) -40
- Modbus RTU No
- Housing Style Base Mount - Dome Window
- Product Size (mm) 50
- Pick-to-Light Function D
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Job Light Green
- Feature: Audible No
- Activation Function Capacitive Touch
- Quick Disconnect Type M12 (Euro)
- Output Type NPN
- Max Op. Temperature (°C) 50
- Feature: Chemical Resistant No
- Feature: Washdown Rated Yes
- Power Source DC
- Color Technology Standard LED
- Supply Voltage 12-30 V dc
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 55.0
- Connection Pigtail QD
- Power DC
- Max Output Response Time (ms) 50
- Primary Window Material Polycarbonate Diffused
- Pro-Editor Compatible (Discrete) No
- Button Operation Momentary
- Animation Option 1 Solid On
- Actuation Yes
- IO Link No
- Max Current Color (mA) 75
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50ANT2GXDQP on Powermatic Associates is $159.00. Order now.
About the product

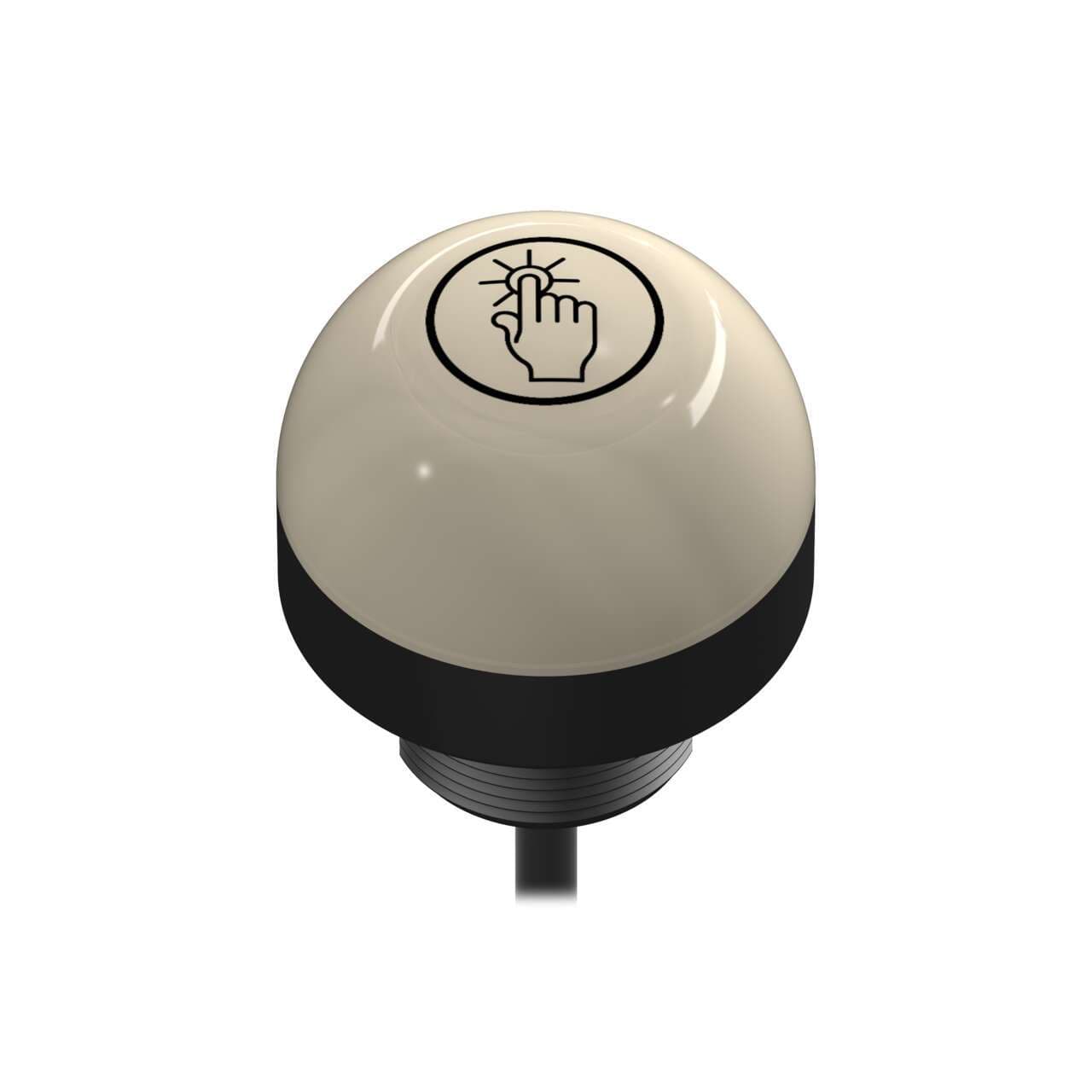

Banner Engineering K50ANT2GXDQP, part of the EZ-LIGHT series, is a capacitive touch-sensitive pick-to-light device designed with Gen.2 LED illumination in a black housing. It features a dome window shape with both the window and base made from polycarbonate (PC). This part is pre-wired with a 6" / 15cm pigtail that terminates with a 5-pin M12 Euro-style QD connector. It operates on a supply voltage of 12Vdc-30Vdc, with 24Vdc nominal, and can be mounted on the surface or base pole with an M30 thread. The dome diameter is 50mm / 2", and it is designed to operate in ambient air temperatures ranging from -40°C to +50°C. It offers a degree of protection rated at IP67 and IP69K. The operating mode includes a momentary job light (G; Green) that remains ON when the input is active, and touch activates the output only with a Normally Open (NO) touch output. It consumes 75mA of current and includes 1 x digital input (12-30Vdc; NPN) for JOB color control and 1 x digital output (12-30Vdc; NPN) for touch.
