K50APPBGRE Banner Pick-to-Light Sensors

K50APPBGRE on Powermatic Associates
Banner
  • K50APPBGRE
  • K50APPBGRE

Part#:K50APPBGRE

Alt. Part#:76316

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

K50 E-Series EZ-LIGHT: 2-Color Push Button Sensor; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67; Input: PNP (NO); Colors: Green Red; 2 m (6.5 ft) Integral Cable

Product Details

  • Weight
    249.4756 g
  • Country Of Origin
    MX
  • Power
    DC
  • Product Size (mm)
    50
  • Number of Input Pins/Conductors
    4
  • Feature: Washdown Rated
    Yes
  • Max Op. Temperature (°C)
    50
  • Housing Style
    Base Mount - Dome Window
  • Color Technology
    Standard LED
  • Output Type
    PNP
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
  • Feature: Audible
    No
  • Job Light
    Green
  • Power Source
    DC
  • Color Option 1
    Green
  • Input Type
    PNP
  • Secondary Material
    Thermoplastic
  • Primary Housing Material
    Polycarbonate
  • Connection
    Cable
  • NEMA Type and UL Type Rating
    NEMA 4X, 13
  • Multi-Color Device
    Single Color On
  • Mounting Thread
    M30 x 1.5
  • Animation Option 1
    Solid On
  • Max Output Response Time (ms)
    3
  • Primary Window Material
    Polycarbonate Diffused
  • Pro-Editor Compatible (Discrete)
    No
  • Mis-Pick Light
    Red
  • Pick-to-Light Function
    E
  • Button Operation
    Momentary
  • Feature: Hazardous Area
    No
  • Activation Function
    Push-Button
  • Max Current Color (mA)
    75
  • Physical Dimensions (LxWxH or DxH mm)
    50.0 x 63.7
  • IO Link
    No
  • Actuation
    Yes
  • Color Option 2
    Red
  • Environmental Rating
    IP67; IP69
  • Wireless
    No
  • Cable Length (m)
    2
  • Number of Colors / Segments
    2
  • Operation
    Normally Open
  • Primary Housing Color
    Black
  • Feature: Chemical Resistant
    No
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Supply Voltage
    12-30 V dc
  • Min Op. Temperature (°C)
    -40
  • Modbus RTU
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50APPBGRE on Powermatic Associates is $166.00. Order now.


About the product

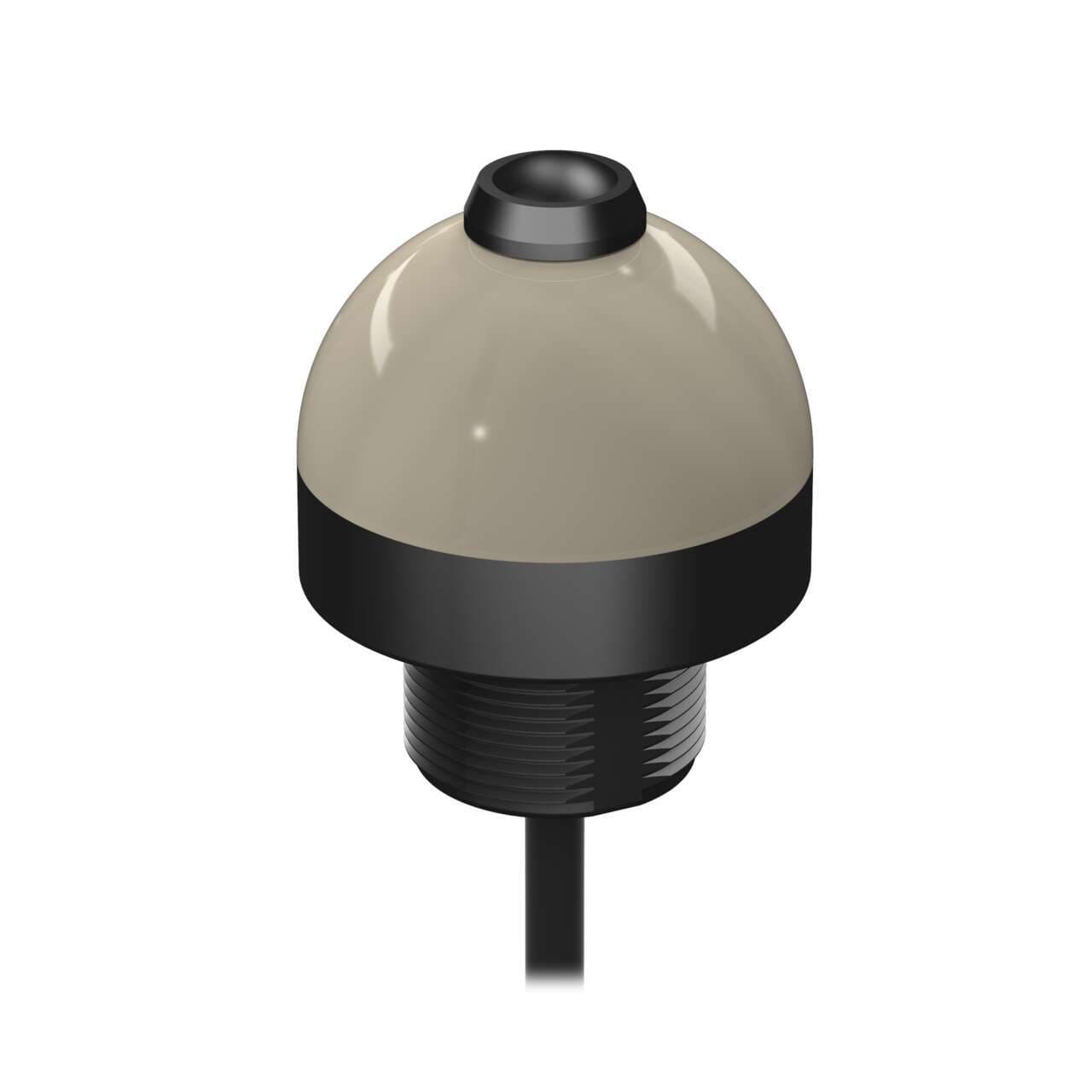

Banner Engineering K50APPBGRE, part of the EZ-LIGHT series, is a pick-to-light device designed with push-button actuation and LED illumination. It features a black housing with a dome-shaped window made from diffused polycarbonate (PC) and a base also constructed from PC. This unit is pre-wired with a 2m / 6.5ft 4-wire cable that terminates with bare end flying leads. It operates on a supply voltage of 12Vdc to 30Vdc, with 24Vdc being nominal. The K50APPBGRE can be mounted via surface, base pole M30, or 1/2" NPSM thread, and has a 50mm / 2" dome diameter. It is designed to operate within an ambient air temperature range of -40°C to +50°C and offers a degree of protection rated at IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13. The operating mode includes a momentary job light (Green) that is ON when the job input is active, touch activation for output only, and a mispick light (Red) that activates with touch when the job input is inactive, alongside NO (Normally Open) touch output. It also features 1 x digital input (12-30Vdc; PNP) for JOB color control and 2 x digital outputs (12-30Vdc; PNP) for Touch and Mispick functions.
