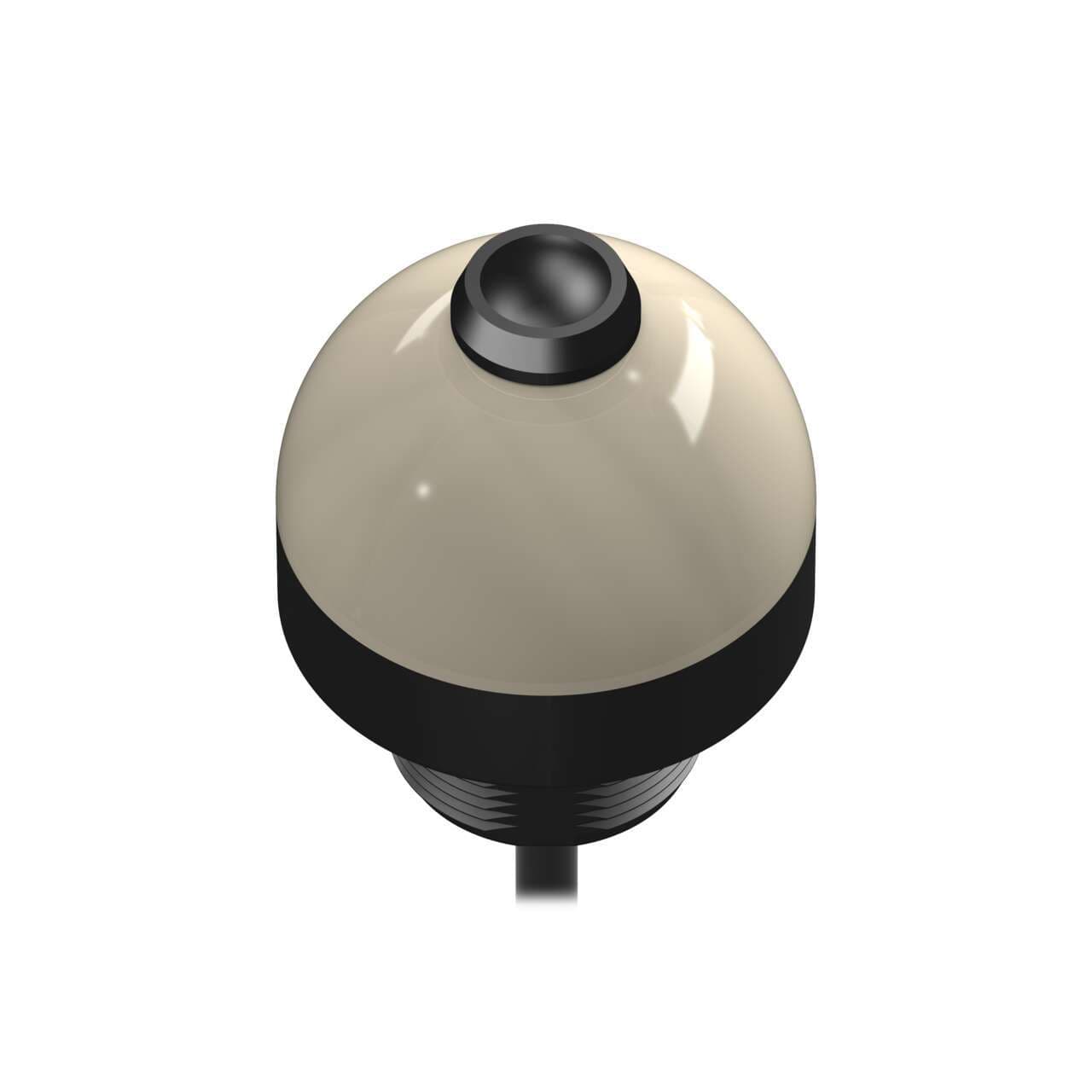

K50APPBGREQP Banner Pick-to-Light Sensors

Product Details

• Weight
  158.7572 g
• Country Of Origin
  MX
• Power Source
  DC
• Connection
  Pigtail QD
• Output Type
  PNP
• Actuation
  Yes
• Animation Option 1
  Solid On
• Number of Input Pins/Conductors
  4
• Activation Function
  Push-Button
• Color Option 1
  Green
• Supply Voltage
  12-30 V dc
• Button Operation
  Momentary
• Color Input Control
  Individual (One wire/color, same number of colors as input wires)
• Max Current Color (mA)
  75
• Max Output Response Time (ms)
  3
• Primary Housing Material
  Polycarbonate
• Quick Disconnect Type
  M12 (Euro)
• Input Type
  PNP
• Environmental Rating
  IP67; IP69
• Housing Style
  Base Mount - Dome Window
Color Option 2
Red
Physical Dimensions (LxWxH or DxH mm)
50.0 x 63.7
Max Op. Temperature (°C)
50
IO Link
No
Mounting Thread
M30 x 1.5
Product Size (mm)
50
Mis-Pick Light
Red
Feature: Washdown Rated
Yes
Power
DC
Color Technology
Standard LED
Operation
Normally Open
Cable Length (m)
2
Number of Colors / Segments
2
Pick-to-Light Function
E
Min Op. Temperature (°C)
-40
Secondary Material
Thermoplastic
Job Light
Green
Max Op. Relative Humidity Non-Condensing (%)
90% @ 50°C
Multi-Color Device
Single Color On
Feature: Quick Disconnect
Yes
Pro-Editor Compatible (Discrete)
No
NEMA Type and UL Type Rating
NEMA 4X, 13
Feature: Chemical Resistant
No
Wireless
No
Primary Window Material
Polycarbonate Diffused
Modbus RTU
No
Feature: Audible
No
Primary Housing Color
Black
Feature: Hazardous Area
No
