K50APPBGRYF2Q8 Banner Pick-to-Light Sensors
Part#:K50APPBGRYF2Q8
Alt. Part#:80979
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K50 E-Series EZ-LIGHT: 3-Color Push Button Sensor; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67; Input: PNP (NO); Colors: Green Red Yellow; 8-pin M12 Integral QD
Product Details
- Weight 136.0776 g
- Country Of Origin MX
- Mounting Thread M30 x 1.5
- Color Option 2 Red
- Color 3 - Wavelength/Color Temp/Coordinates 591 nm
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Animation Option 1 Solid On
- Lumens Color 3 24.0
- Input Type PNP
- Button Operation Momentary
- IO Link No
- Activation Function Push-Button
- Connection Integral QD
- Pick-to-Light Function F2
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 74.7
- Feature: Audible No
- Modbus RTU No
- Housing Style Base Mount - Dome Window
- Color Option 3 Yellow
- Output Type PNP
- Primary Housing Color Black
- Feature: Quick Disconnect Yes
- Quick Disconnect Type M12 (Euro)
- Primary Housing Material Polycarbonate
- Operation Normally Open
- Max Op. Temperature (°C) 50
- Multi-Color Device Single Color On
- Power Source DC
- Color Technology Standard LED
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Secondary Material Thermoplastic
- Actuation Yes
- Color Option 1 Green
- Min Op. Temperature (°C) -40
- Supply Voltage 12-30 V dc
- Feature: Chemical Resistant No
- Cable Length (m) 2
- Number of Colors / Segments 3
- Max Current Color (mA) 75
- Max Output Response Time (ms) 50
- Primary Window Material Polycarbonate Diffused
- Wireless No
- Power DC
- Product Size (mm) 50
- NEMA Type and UL Type Rating NEMA 4X, 13
- Number of Input Pins/Conductors 8
- Feature: Hazardous Area No
- Environmental Rating IP67; IP69
- Feature: Washdown Rated Yes
- Pro-Editor Compatible (Discrete) No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50APPBGRYF2Q8 on Powermatic Associates is $180.00. Order now.
About the product

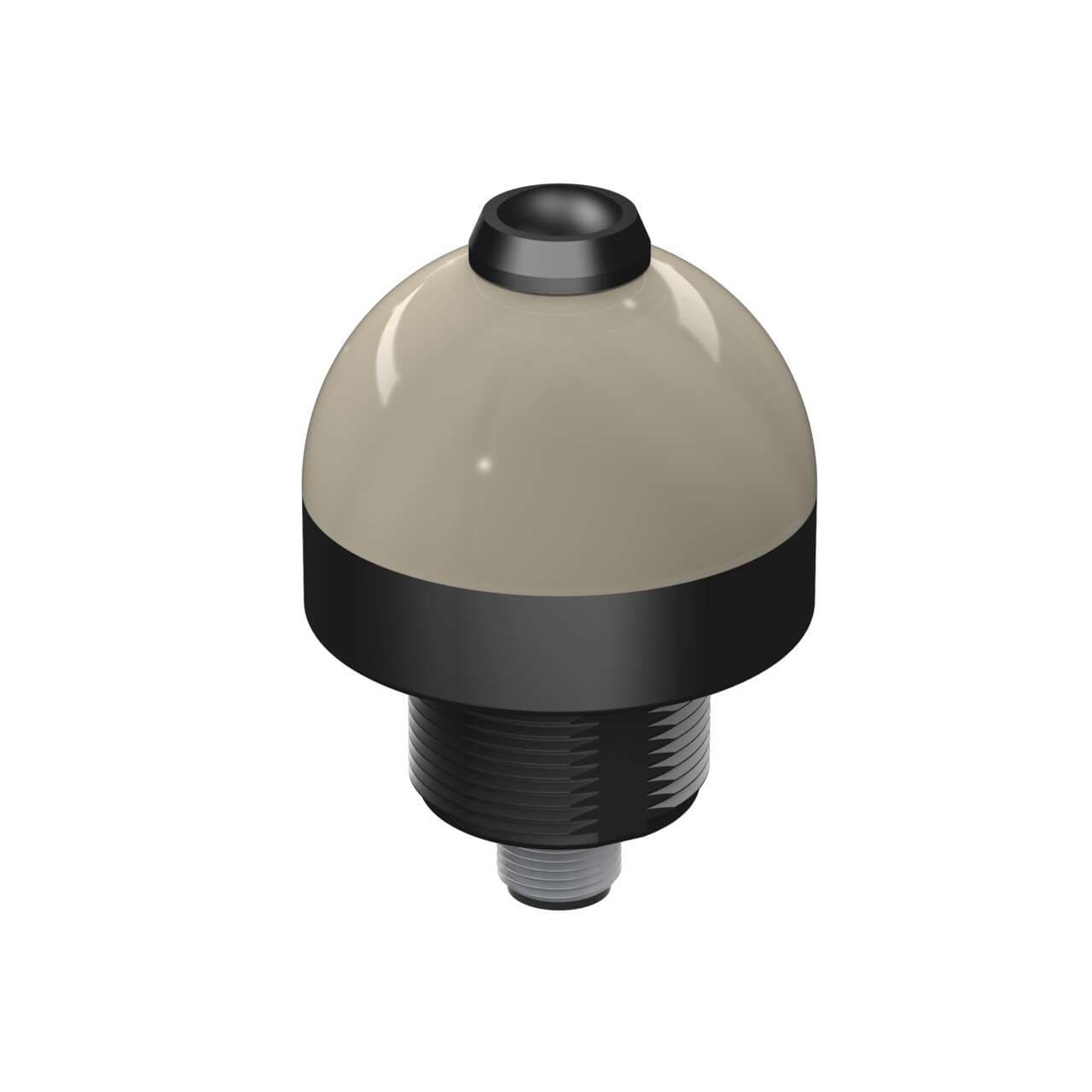

Banner Engineering K50APPBGRYF2Q8, part of the EZ-LIGHT series, is a pick-to-light device designed with push-button actuation LED illumination. It features a black housing with a dome-shaped window made from diffused polycarbonate (PC) and a base also constructed from PC. This part is pre-equipped with an 8-pin M12 Euro-style quick disconnect (QD) connector and supports a supply voltage range of 12Vdc to 30Vdc, with 24Vdc nominal. It offers versatile mounting options including surface, base pole M30, and 1/2" NPSM thread, with a dome diameter of 50mm / 2 inches. The operating ambient air temperature range is from -40°C to +50°C. It boasts a high degree of protection with ratings of IP67, IP69K, NEMA 4X, and NEMA 13. The operating mode is momentary, with a job light (G/R/Y; Green or Red or Yellow) that turns on when one of the three job inputs is active, and touch activates the output only with a Normally Open (NO) touch output. It has a current consumption of 75mA, includes 3 x digital inputs (12-30Vdc; PNP) for JOB color control, and 1 x digital output (12-30Vdc; PNP) for touch.
