K50APPBGYCQPMA Banner Pick-to-Light Sensors
Part#:K50APPBGYCQPMA
Alt. Part#:75545
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K50 C-Series EZ-LIGHT: 2-Color Push Button Sensor; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67; PNP (NO); Colors: Green Yellow; 150 mm (6 in) 4-pin M12 PUR Pigtail QD
Product Details
- Weight 136.0776 g
- Country Of Origin US
- Mounting Thread M30 x 1.5
- Color Option 2 Yellow
- Max Output Response Time (ms) 3
- Min Op. Temperature (°C) -40
- Job Light Green
- Activation Function Push-Button
- Animation Option 1 Solid On
- Output Type PNP
- Environmental Rating IP67; IP69
- Multi-Color Device Single Color On
- Cable Length (m) 2
- Number of Colors / Segments 2
- Acknowledge (Sense) Light Yellow
- Secondary Material Thermoplastic
- Pro-Editor Compatible (Discrete) No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Quick Disconnect Type M12 (Euro)
- NEMA Type and UL Type Rating NEMA 4X, 13
- Supply Voltage 12-30 V dc
- Modbus RTU No
- Power DC
- Max Current Color (mA) 75
- Primary Housing Color Black
- Feature: Chemical Resistant No
- Power Source DC
- Color Technology Standard LED
- Pick-to-Light Function C
- Primary Window Material Polycarbonate Diffused
- Feature: Hazardous Area No
- Actuation Yes
- Color Option 1 Green
- Operation Normally Open
- Button Operation Momentary
- Feature: Audible No
- Primary Housing Material Polycarbonate
- Product Size (mm) 50
- Number of Input Pins/Conductors 4
- Max Op. Temperature (°C) 50
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 63.7
- Housing Style Base Mount - Dome Window
- Connection Pigtail PUR QD
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Input Type PNP
- IO Link No
- Feature: Washdown Rated Yes
- Wireless No
- Feature: Quick Disconnect Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50APPBGYCQPMA on Powermatic Associates is $170.00. Order now.
About the product

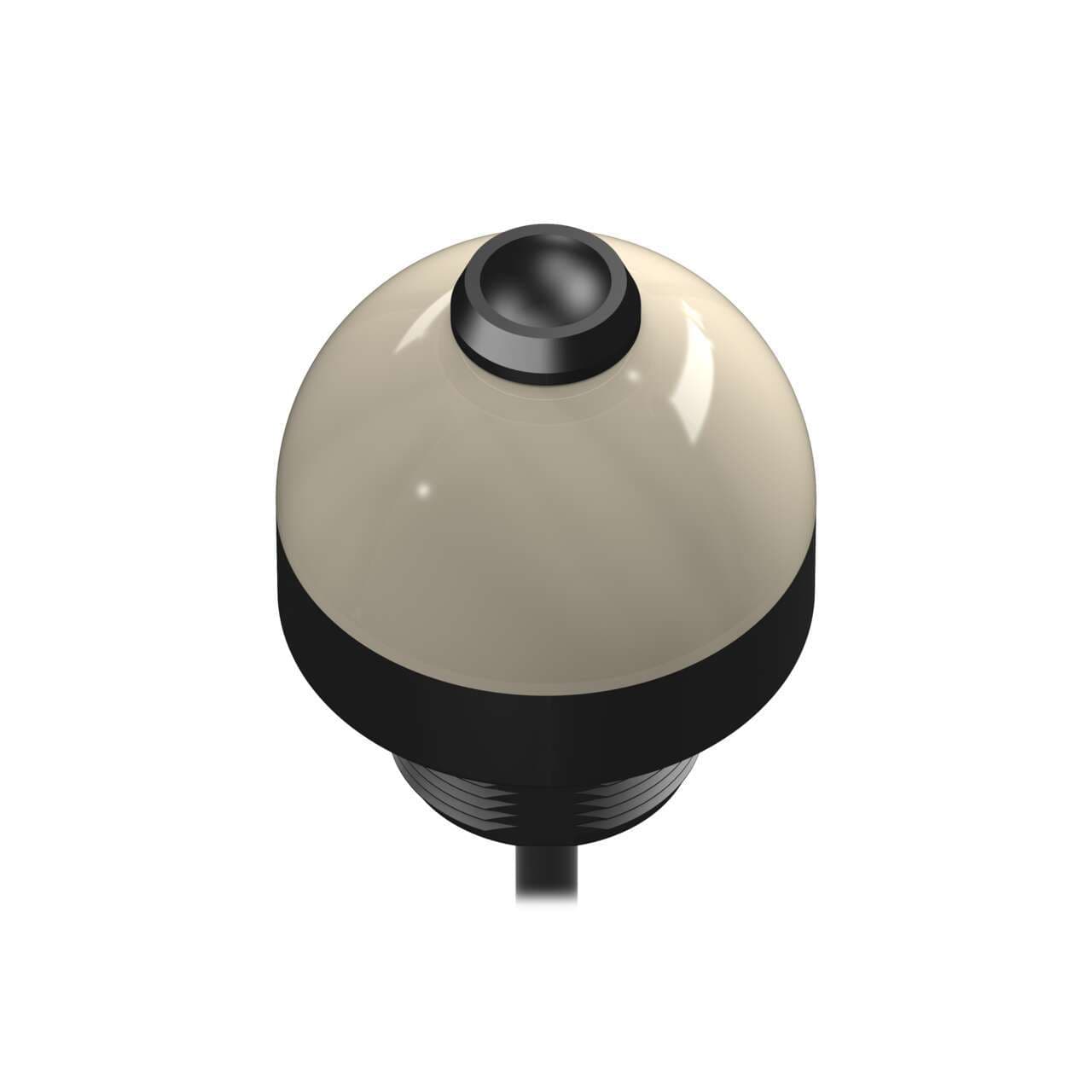

Banner Engineering K50APPBGYCQPMA, part of the EZ-LIGHT series, is a pick-to-light device designed with push-button actuation and LED illumination. It features a black housing with a dome window shape, constructed from polycarbonate (PC) for both the diffused window and base, and a polyurethane (PUR) cable sheath. This unit is pre-wired with a 6" / 15cm PUR pigtail that terminates with a 4-pin M12 Euro-style quick disconnect (QD) connector. It operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc nominal. The K50APPBGYCQPMA offers surface or base pole mounting options with an M30 thread and has a 50mm / 2" dome diameter. It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and is rated for IP67, IP69K, NEMA 4X, and NEMA 13 degrees of protection. The operating mode is momentary, with a green job light indicating active input and a yellow sensing light activated by touch, alongside a normally open (NO) touch output. It consumes 75mA of current and includes 1 x digital input (12-30Vdc; PNP) for job color control and 1 x digital output (12-30Vdc; PNP) for touch functionality.
