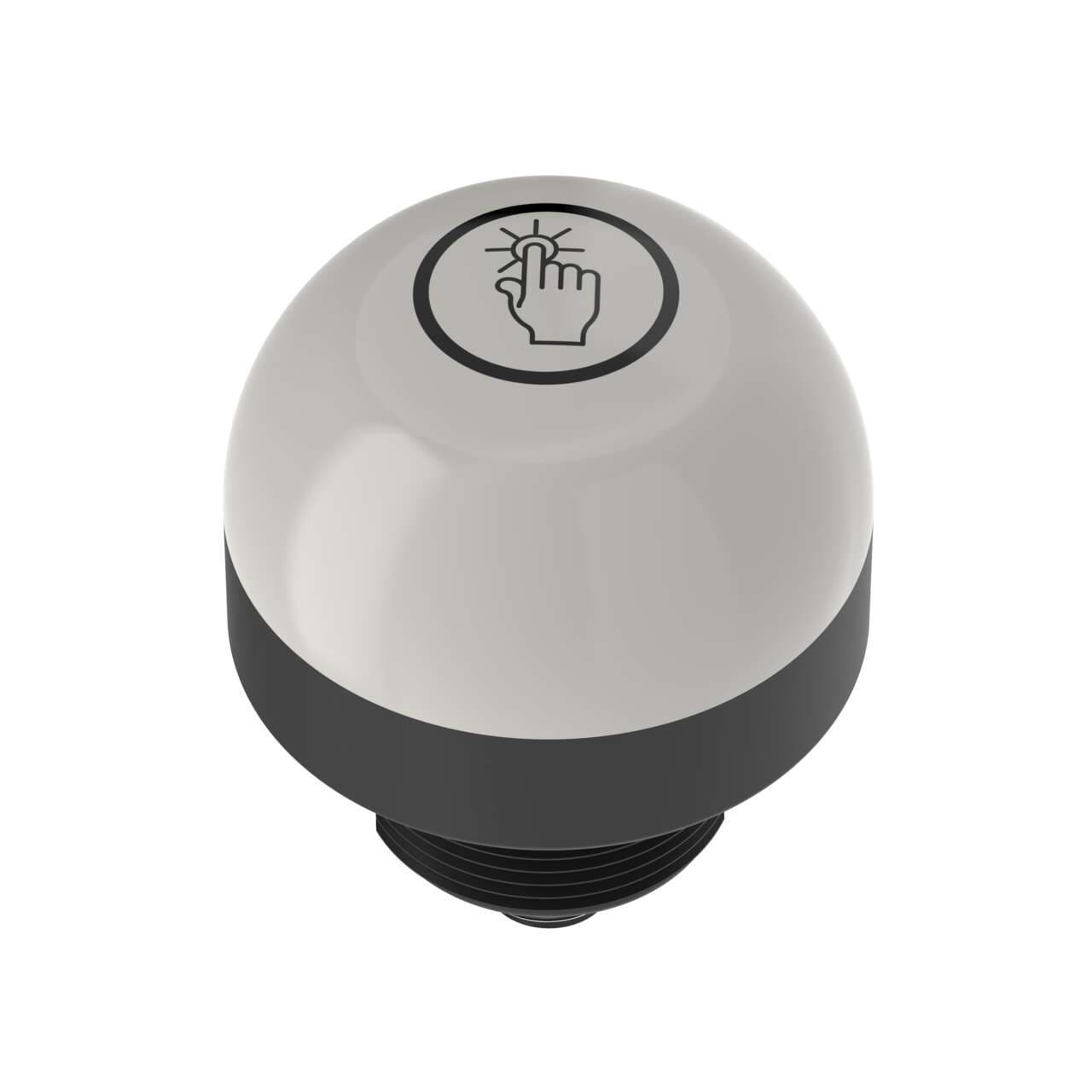

K50APT2YGWF2Q Banner Pick-to-Light Sensors

K50APT2YGWF2Q on Powermatic Associates
Banner
  • K50APT2YGWF2Q
  • K50APT2YGWF2Q

Part#:K50APT2YGWF2Q

Alt. Part#:802510

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

K50 Series EZ-LIGHT: 3-Input-Color Touch Sensor Gen 2; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Input: PNP (NO); Colors: Yellow Green White; 8-pin M12 Integral QD

Product Details

  • Weight
    181.4368 g
  • Country Of Origin
    MX
  • IO Link
    No
  • Feature: Hazardous Area
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Feature: Chemical Resistant
    No
  • Feature: Quick Disconnect
    Yes
  • Multi-Color Device
    Single Color On
  • Wireless
    No
  • Modbus RTU
    No
  • Feature: Audible
    No
  • Primary Window Material
    Polycarbonate Diffused
  • Feature: Washdown Rated
    Yes
  • Button Operation
    Momentary
  • Primary Housing Color
    Black
  • Min Op. Temperature (°C)
    -40
  • Storage Temp (°C)
    -40 to 70
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
  • Environmental Rating
    IP67; IP69
  • Max Op. Temperature (°C)
    50
  • Physical Dimensions (LxWxH or DxH mm)
    50.0 x 66.0
  • Max Output Response Time (ms)
    50
  • Input Type
    PNP
  • Operation
    Normally Open
  • Output Type
    PNP
  • Supply Voltage
    12-30 V dc
  • Number of Input Pins/Conductors
    8
  • Lumens Color 2
    29.0
  • Max Current Color (mA)
    75
  • Color Option 3
    White
  • Color 2 - Wavelength/Color Temp/Coordinates
    525 nm
  • Color Option 2
    Green
  • Pick-to-Light Function
    F2
  • Color Technology
    Standard LED
  • Lumens Color 1
    24.0
  • Animation Option 1
    Solid On
  • Color 1 - Wavelength/Color Temp/Coordinates
    591 nm
  • Quick Disconnect Type
    M12 (Euro)
  • Connection
    Integral QD
  • Color Option 1
    Yellow
  • Product Size (mm)
    50
  • Number of Colors / Segments
    3
  • Activation Function
    Capacitive Touch
  • Primary Housing Material
    Polycarbonate
  • Power Source
    DC
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Mounting Thread
    M30 x 1.5
  • Actuation
    Yes
  • Housing Style
    Base Mount - Dome Window
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50APT2YGWF2Q on Powermatic Associates is $188.00. Order now.

About the product

Banner Engineering K50APT2YGWF2Q, part of the EZ-LIGHT series, is a capacitive touch-sensitive pick-to-light device designed with Gen.2 LED illumination. It features a black housing with a dome window shape, constructed from polycarbonate (PC) for both the diffused window and the base. This part is pre-wired with a 6" / 15cm pigtail that terminates with a 5-pin M12 Euro-style QD connector. It operates on a supply voltage of 12Vdc-30Vdc, with 24Vdc nominal, and can be mounted via surface or base pole with an M30 thread. The dome diameter measures 50mm / 2", and it is designed to operate in ambient air temperatures ranging from -40°C to +50°C. It offers a degree of protection rated at IP67 and IP69K. The operating mode includes a momentary job light (Yellow) that is ON when the job input is active, and touch activates the output and sensing light (Red) with a Normally Open (NO) touch output. The current consumption is 75mA. It also features 1 x digital input (12-30Vdc; PNP) for JOB color control and 1 x digital output (12-30Vdc; PNP) for touch functionality.
