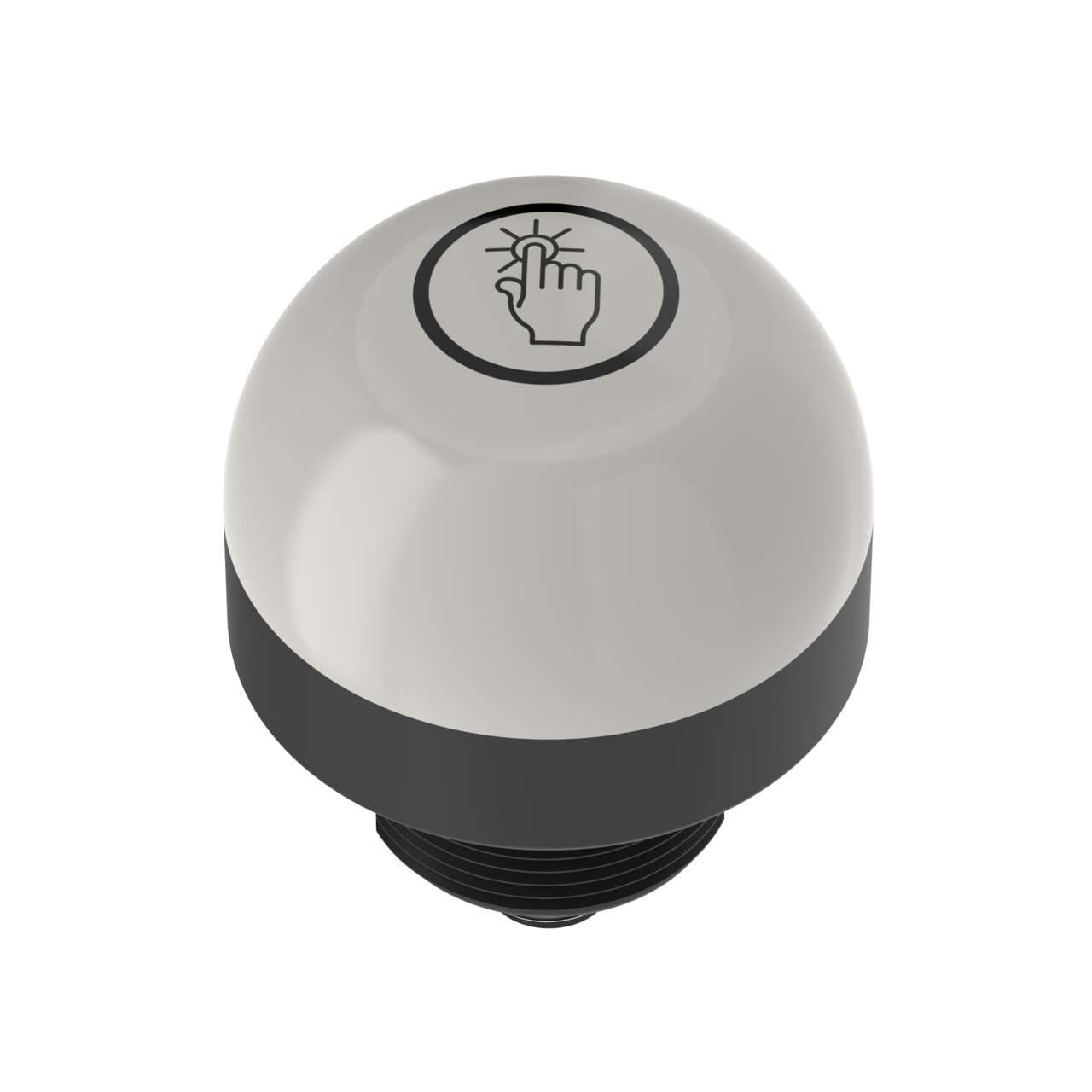

K50APTGBYF2Q Banner Pick-to-Light Sensors
Part#:K50APTGBYF2Q
Alt. Part#:26624
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K50 Series EZ-LIGHT: 3-Input-Color Touch Sensor; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Input: PNP (NO); Colors: Green Blue Yellow; 8-pin M12 Integral QD
Product Details
- Weight 136.0776 g
- Country Of Origin MX
- IO Link No
- Pro-Editor Compatible (Discrete) No
- Wireless No
- Feature: Quick Disconnect Yes
- Modbus RTU No
- Feature: Washdown Rated Yes
- Primary Window Material Polycarbonate Diffused
- Feature: Chemical Resistant No
- Feature: Audible No
- Button Operation Momentary
- Feature: Hazardous Area No
- Primary Housing Color Black
- Storage Temp (°C) -40 to 70
- Min Op. Temperature (°C) -40
- Max Output Response Time (ms) 50
- Environmental Rating IP67; IP69
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 66.0
- Input Type PNP
- Output Type PNP
- Supply Voltage 12-30 V dc
- Max Current Color (mA) 75
- Operation Normally Open
- Color 3 - Wavelength/Color Temp/Coordinates 591 nm
- Lumens Color 3 24.0
- Number of Input Pins/Conductors 8
- Color Option 3 Yellow
- Color Option 2 Blue
- Animation Option 1 Solid On
- Lumens Color 1 29.0
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Quick Disconnect Type M12 (Euro)
- Color Technology Standard LED
- Housing Style Base Mount - Dome Window
- Color Option 1 Green
- Product Size (mm) 50
- Activation Function Capacitive Touch
- Power DC
- Actuation Yes
- Mounting Thread M30 x 1.5
- Primary Housing Material Polycarbonate
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Power Source DC
- Multi-Color Device Single Color On
- Max Op. Temperature (°C) 50
- Pick-to-Light Function F2
- Connection Integral QD
- Number of Colors / Segments 3
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50APTGBYF2Q on Powermatic Associates is $180.00. Order now.
About the product
Banner Engineering K50APTGBYF2Q, part of the EZ-LIGHT series, is a capacitive touch-sensitive pick-to-light device designed with LED illumination. This unit features a black housing with a dome window shape, constructed from polycarbonate (PC) for both the diffused window and the base. It is pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity. The supply voltage ranges from 12Vdc to 30Vdc, with a nominal 24Vdc. It supports surface or base pole mounting with an M30 thread and has a 50mm / 2" dome diameter. The ambient air temperature for operation spans from -40°C to +50°C. This device offers a high degree of protection with IP67 and IP69K ratings. Its operating mode includes a momentary job light (G; Green) that is ON when the job input is active, and touch activates the output and sensing light (B; Blue) with a NO (Normally Open) touch output. The current consumption is 75mA. It also features 1 x digital input (12-30Vdc; PNP) for JOB color control and 1 x digital output (12-30Vdc; PNP) for touch functionality.
