K50APTRGEQ Banner Pick-to-Light Sensors
Part#:K50APTRGEQ
Alt. Part#:26478
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K50 Series EZ-LIGHT: 2-Color Touch Sensor; Job Light; Overrides Touch Light; Volt: 12-30 V dc; Housing: PC; IP67 IP69K; Input: PNP (NO); Colors: Red Green; 4-pin M12 Integral QD
Product Details
- Weight 136.0776 g
- Country Of Origin MX
- Primary Housing Material Polycarbonate
- Product Size (mm) 50
- Lumens Color 2 29.0
- Max Current Color (mA) 75
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Feature: Audible No
- Power Source DC
- Lumens Color 1 13.0
- Color 2 - Wavelength/Color Temp/Coordinates 525 nm
- Primary Window Material Polycarbonate Diffused
- Feature: Hazardous Area No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Connection Integral QD
- Output Type PNP
- Button Operation Momentary
- Feature: Washdown Rated Yes
- Activation Function Capacitive Touch
- Number of Colors / Segments 2
- Color 1 - Wavelength/Color Temp/Coordinates 625 nm
- I/O Block Compatible Yes
- Max Op. Temperature (°C) 50
- Cable Length (m) 2
- Animation Option 1 Solid On
- Operation Normally Open
- Min Op. Temperature (°C) -40
- Primary Housing Color Black
- IO Link No
- Housing Style Base Mount - Dome Window
- Color Option 1 Red
- Number of Input Pins/Conductors 4
- Max Output Response Time (ms) 50
- Feature: Chemical Resistant No
- Job Light Red
- Mounting Thread M30 x 1.5
- Color Option 2 Green
- Supply Voltage 12-30 V dc
- Storage Temp (°C) -40 to 70
- Multi-Color Device Single Color On
- Power DC
- Color Technology Standard LED
- Mis-Pick Light Green
- Pick-to-Light Function E
- Actuation Yes
- Input Type PNP
- Modbus RTU No
- Environmental Rating IP67; IP69
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 66.0
- Pro-Editor Compatible (Discrete) No
- Quick Disconnect Type M12 (Euro)
- Wireless No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50APTRGEQ on Powermatic Associates is $159.00. Order now.
About the product

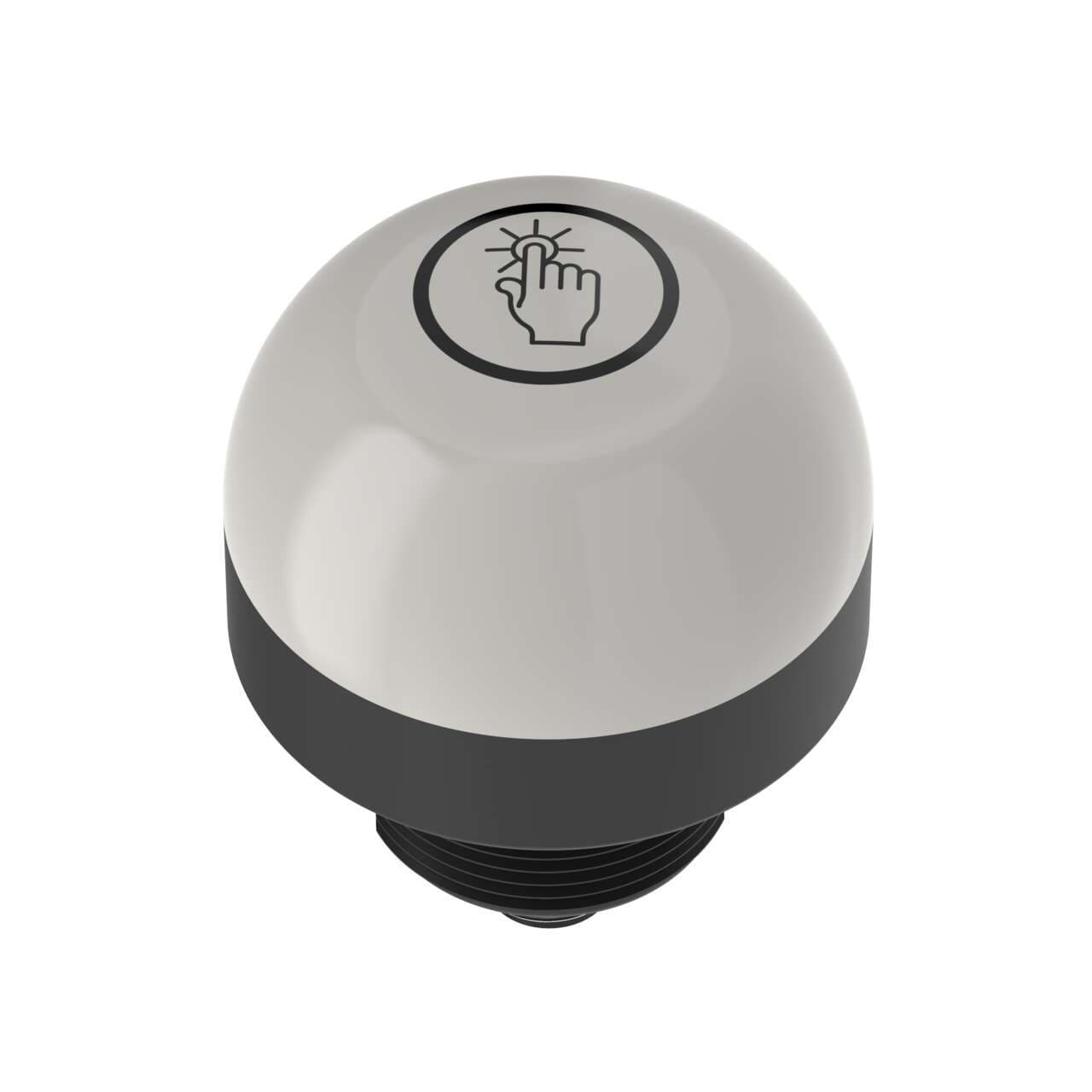

Banner Engineering K50APTRGEQ, part of the EZ-LIGHT series, is a capacitive touch-sensitive pick-to-light device designed with LED illumination in a black housing. It features a dome window shape with both the window and base made from polycarbonate (PC). This part is pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity. It operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc as the nominal voltage. The K50APTRGEQ can be mounted via surface or base pole with an M30 thread and has a 50mm / 2" dome diameter. It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and offers a degree of protection rated at IP67 and IP69K. The operating mode includes a momentary job light (R; Red) that is ON when the job input is active, and touch activates the output and sensing light (G; Green) with a NO (Normally Open) touch output. It has a current consumption of 75mA, 1 x digital input (12-30Vdc; PNP) for JOB color control, and 1 x digital output (12-30Vdc; PNP) for touch functionality.
