K50BCLXRXP Banner Pick-to-Light Sensors
Part#:K50BCLXRXP
Alt. Part#:18341
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K50 Beacon EZ-LIGHT: 1-Color Perimeter & Top View; Voltage: 12-30 V dc; Housing: Polycarbonate; IP69K; Input: PNP; Colors: Red; 2 m (6.5 ft) Integral Cable
Product Details
- Weight 249.4756 g
- Country Of Origin MX
- Product Size (mm) 50
- Connection Cable
- Primary Window Material Polycarbonate Clear
- Pro-Editor Compatible (Discrete) No
- Mounting Thread M30 x 1.5
- Animation Option 1 Solid On
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Indication Intensity High Brightness & Daylight Visible
- Power Source DC
- Color Technology Standard LED
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 49.0
- Feature: Hazardous Area No
- Power DC
- Supply Voltage 12-30 V dc
- Min Op. Temperature (°C) -40
- IO Link No
- Indication Yes
- Max Current Color (mA) 160
- Primary Housing Color Black
- Modbus RTU No
- Primary Housing Material Polycarbonate
- Color Option 1 Red
- Max Op. Temperature (°C) 50
- Multi-Color Device Single Color On
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Input Type PNP
- Feature: Washdown Rated Yes
- Wireless No
- Housing Style Base Mount - Flat Window
- Number of Input Pins/Conductors 4
- NEMA Type and UL Type Rating NEMA 4X, 13
- Feature: Chemical Resistant No
- Number of Colors / Segments 1
- Max Input Response Time (ms) 7
- Environmental Rating IP67; IP69
- Feature: Audible No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50BCLXRXP on Powermatic Associates is $141.00. Order now.
About the product

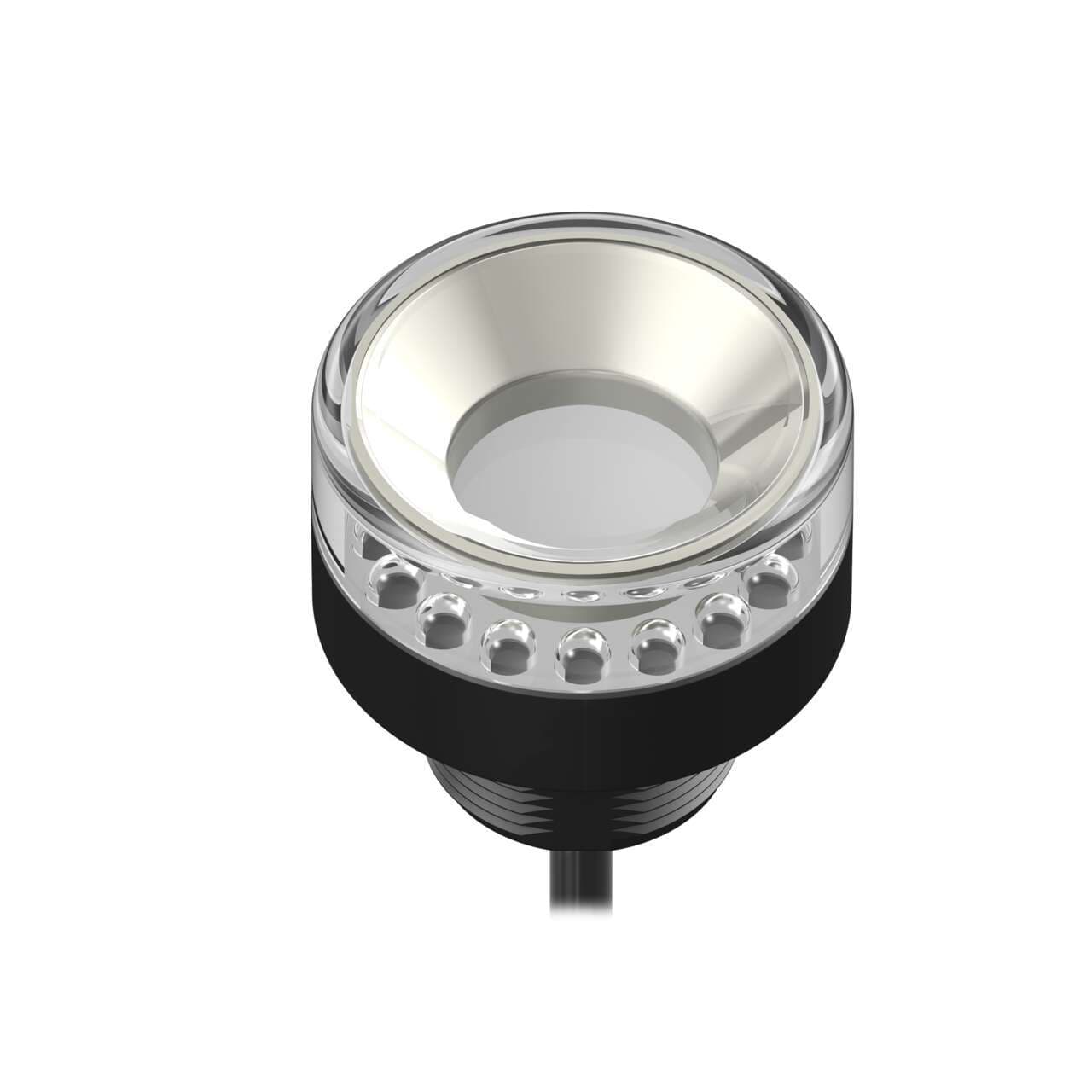

Banner Engineering K50BCLXRXP is a high-intensity industrial LED light beacon from the EZ-LIGHT Beacons series. This beacon features perimeter and top view lighting with a 1-tier, 1-color red LED illumination housed in a black casing. The round flat window is made of clear polycarbonate (PC), as is the base, ensuring durability and clarity. It is pre-wired with a 6-inch (15cm) pigtail that terminates with a 4-pin M12 Euro-style quick disconnect (QD) connector. Designed for a wide range of supply voltages, it operates between 12Vdc and 30Vdc, with a nominal voltage of 24Vdc. The K50BCLXRXP offers versatile mounting options, including surface, base pole M30, and 1/2" NPSM thread, accommodating a 50mm (2-inch) cap diameter. It is suitable for operation in ambient air temperatures ranging from -40°C to +50°C. This beacon is designed to withstand harsh environments, boasting a degree of protection rated at IP67, IP69K, NEMA 4X, and NEMA 13. It has a current consumption of 160mA and includes 1 x digital input (12-30Vdc; PNP) for color control.
