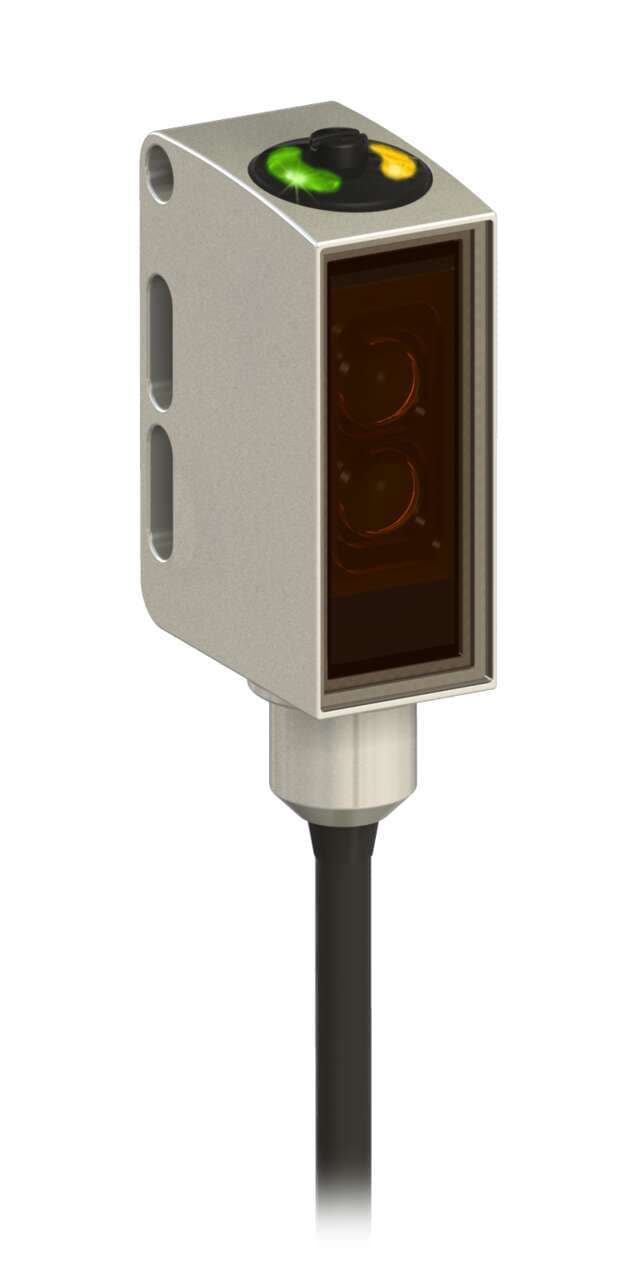

QM26EPXLPC-5M Banner Proximity Sensors
Part#:QM26EPXLPC-5M
Alt. Part#:28726
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
QM26 Washdown Series: Low Contrast Coaxial Polarized Retro; Range: 2.6 m; Input 10-30 V dc; Output: Solid-State PNP with teach Input; 5 m (16.25 ft) Cable
Product Details
- Weight 204.1164 g
- Country Of Origin DE
- Sub-range name QM26
- Light Color Visible red
- Digital outputs 1 x digital output (PNP transistor)
- Main function Sensor (Photo-electric)
- Design retro-reflective mode FDA compliant (washdown rated)
- Wavelength 620 nm
- Primary brand Banner Engineering
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Shape Rectangular
- Response time 0.5ms / 0.0005 s
- Ambient air temperature for operation -30...+70 °C
- Product series / family name Q series
- Sensing distance 2.6m
- Operating mode Light-ON Dark-ON
- Material Hygienic stainless steel 316L housing PMMA lns.
- Functions Polarized (coaxial) photo-electric sensor green LED (power ON) yellow LED (output state) TEACH mode
- Connection type Pre-wired with 5m cable terminated with bare end flying leads
- Order code / Manufacturer SKU 28726
- Degree of protection IP69K
- Equivalent to QM26EPXLPC5M
- Input/Output Discrete
- Quick Disconnect Type No QD
- Housing Style Rectangular
- Operation Light/Dark Operate
- Cable Length (m) 5
- Power Supply/Supply Voltage 10-30 V dc
- Primary Housing Material Stainless Steel
- Power DC
- Connection Cable
- Delay at Power-up (ms) 300
- Indicator LEDs
- Feature: Chemical Resistant Yes
- Sensing Mode (Detailed) Polarized (Coaxial)
- Special Feature: Intrinsically Safe No
- Max Op. Relative Humidity [%] 95% @ 55°C
- Feature: Encapsulated No
- Sensing Mode (General) Retroreflective
- Special Feature: Remote Teach Yes
- Feature: Audible No
- Max Sensing Distance (mm) 2600
- Max Op. Temp. (°C) 70
- IP Rating IP69
- Feature: Timing (Hold/Delay) No
- Sensing Beam Visible Red LED
- Output response time (ms) 0.5
- Lens Material PMMA
- Feature: Hazardous Area No
- Outputs PNP
- Sensing Beam Wavelength 620
- Adjustments Teach Button
- DeviceNet No
- Min Op. Temp. (°C) -30
- Special Feature: Water Detection No
- Feature: Washdown Rated Yes
- Repeatability (µs) 150
- Feature: Ecolab Certified Yes
- Number of Pins 4
- Barrel Diameter (mm) N/A
- NEMA Rating N/A
- Opposed Mode Emitter/Receiver N/A
- Feature: Clear Object Detection Yes
- IO Link No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QM26EPXLPC-5M on Powermatic Associates is $312.00. Order now.
About the product
Banner Engineering QM26EPXLPC-5M is a polarized (coaxial) photo-electric sensor designed for a variety of applications, featuring a retro-reflective mode with TEACH mode functionality. It operates within an ambient air temperature range of -30 to +70°C and is constructed with a hygienic stainless steel 316L housing and a Polymethyl methacrylate (PMMA) lens, suitable for FDA-compliant washdown environments. This sensor is part of the QM26 series and offers an IP69K degree of protection, making it highly resistant to dust and water ingress. It is pre-wired with a 5-meter cable that terminates with bare end flying leads for easy installation. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. Its rectangular shape is designed for straightforward mounting, and it can detect objects up to 2.6 meters away. The sensor emits visible red light with a wavelength of 620 nm and can operate in both Light-ON and Dark-ON modes. It features a single digital output (PNP transistor; complementary NO/NC) and boasts a rapid response time of 0.5ms / 0.0005 s.
