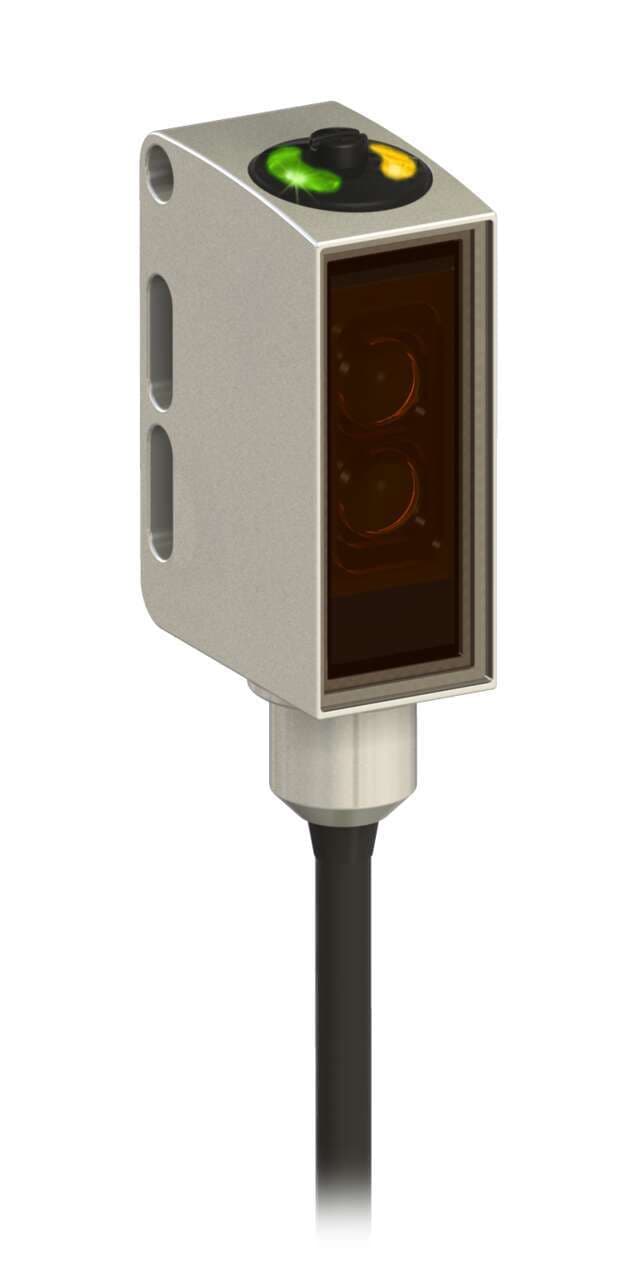

QM26VPR-5M Banner Proximity Sensors
Part#:QM26VPR-5M
Alt. Part#:28713
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
QM26 Washdown Series: Receiver; Range: 8.5 m; Input 10-30 V dc; Output: Complementary Solid-State PNP; 5 m (16.25 ft) Cable
Product Details
- Weight 204.1164 g
- Country Of Origin DE
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Digital outputs 1 x digital output (PNP transistor)
- Design through-beam system / opposed mode FDA compliant (washdown rated)
- Operating mode Light-ON Dark-ON
- Main function Sensor (Photo-electric)
- Sensing distance 8.5m
- Ambient air temperature for operation -30...+70 °C
- Connection type Pre-wired with 5m cable terminated with bare end flying leads
- Degree of protection IP69K
- Order code / Manufacturer SKU 28713
- Sub-range name QM26
- Equivalent to QM26VPR5M
- Primary brand Banner Engineering
- Shape Rectangular
- Product series / family name Q series
- Light Color Visible red
- Functions Photo-electric sensor receiver green LED (power ON) yellow LED (output state)
- Material Hygienic stainless steel 316L housing PMMA lns.
- Wavelength 620 nm
- Response time 0.5ms / 0.0005 s
- Quick Disconnect Type No QD
- Number of Pins 4
- Feature: Hazardous Area No
- Housing Style Rectangular
- Special Feature: Intrinsically Safe No
- Indicator LEDs
- IO Link No
- Sensing Beam Visible Red LED
- Output response time (ms) 0.5
- IP Rating IP69
- Feature: Ecolab Certified Yes
- Outputs PNP
- Sensing Mode (General) Opposed
- Sensing Beam Wavelength 620
- Barrel Diameter (mm) N/A
- Primary Housing Material Stainless Steel
- Min Op. Temp. (°C) -30
- Special Feature: Water Detection No
- Opposed Mode Emitter/Receiver Receiver
- Cable Length (m) 5
- Power Supply/Supply Voltage 10-30 V dc
- Repeatability (µs) 110
- Adjustments N/A
- Feature: Audible No
- Sensing Mode (Detailed) Receiver
- Connection Cable
- NEMA Rating N/A
- Feature: Encapsulated No
- Max Sensing Distance (mm) 8500
- Max Op. Temp. (°C) 70
- Lens Material PMMA
- Feature: Timing (Hold/Delay) No
- Power DC
- Special Feature: Remote Teach No
- Max Op. Relative Humidity [%] 95% @ 55°C
- DeviceNet No
- Input/Output Discrete
- Operation Light/Dark Operate
- Delay at Power-up (ms) 300
- Feature: Washdown Rated Yes
- Feature: Chemical Resistant Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QM26VPR-5M on Powermatic Associates is $261.00. Order now.
About the product
Banner Engineering QM26VPR-5M is a photo-electric sensor designed for through-beam system applications, specifically in environments requiring high hygiene standards. This sensor operates within an ambient air temperature range of -30 to +70°C and is housed in hygienic stainless steel 316L with a Polymethyl methacrylate (PMMA) lens, ensuring durability and compliance with FDA washdown requirements. It features a pre-wired 5m cable with bare end flying leads for connectivity and boasts an IP69K degree of protection, making it suitable for high-pressure washdowns. The QM26VPR-5M operates on a supply voltage of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc, and offers a sensing distance of up to 8.5m. It emits visible red light at a wavelength of 620 nm and can operate in both Light-ON and Dark-ON modes. The sensor provides one digital output (PNP transistor; complementary NO/NC) and features a rapid response time of 0.5ms.
